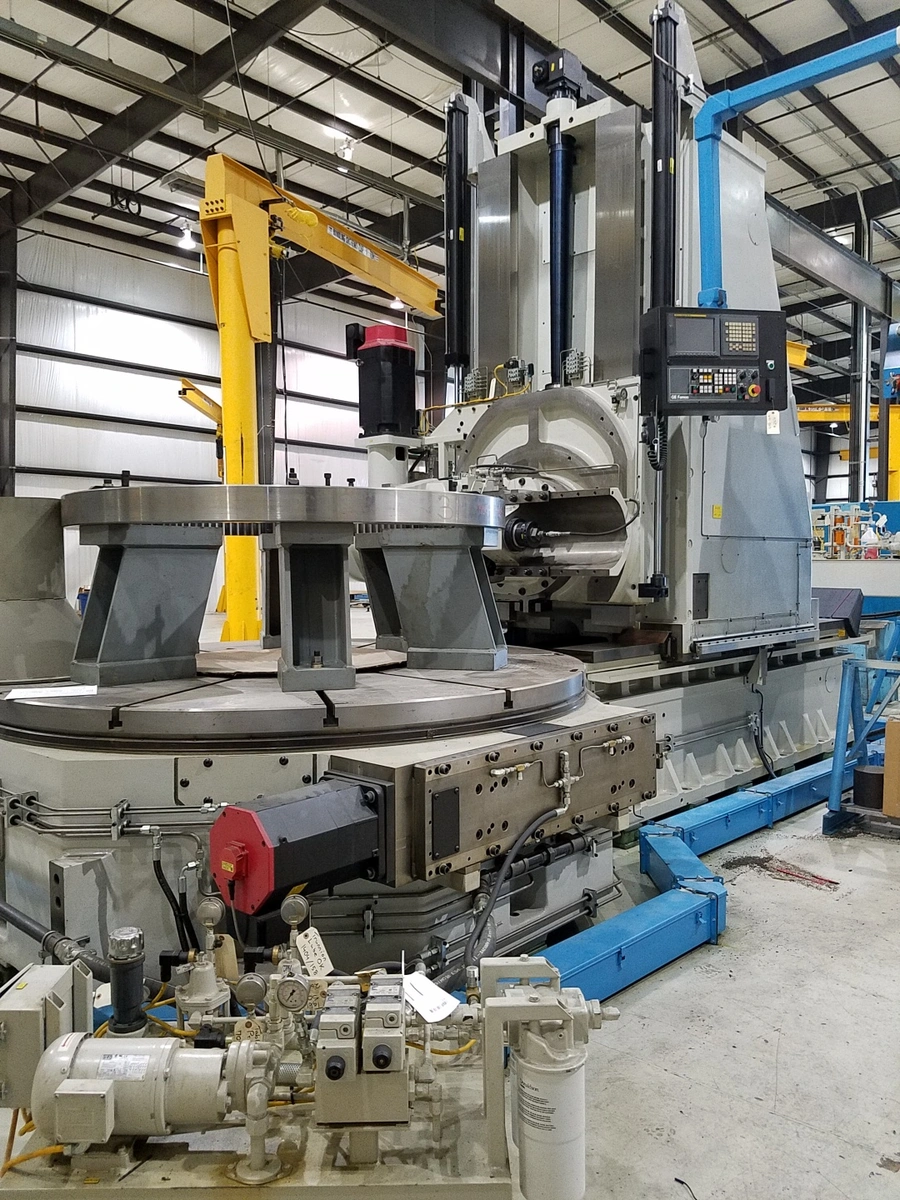

Gould & Eberhardt Model 120-GH 3 Axis CNC Gashing Machine, 150" Diam, Can Extend to 8 Meter!! 55" Max Face Width, 1 DP- 1/2 DP. with optional heavy duty head, Fanuc 18I Controls, Demo Machine, LIKE NEW CONDITION!!!! Call for More Info and See additional Head options.
GOULD & EBERHARDT HEAVY DUTY GEAR GASHER
Model 120-GH SPECIAL, NEW: 2010, DEMO MACHINE
Note: Machine can be Extended to 8 meters with additional purchased options**
This Machine has been purchased By Piselli Enterprises Inc. along with
all the intellectual property of RP Machine whom originally Purchased G&E in
2005. The machine was manufactured for a particular customer for 2.3 million
and order was cancelled in 2010. Machine has been tied up in litigation and now is
available for Immediate sale!! This machine Has only been used as a Demo
machine and has only cut test parts its entire service life. The machine can
be optioned out with a heavy duty External Gashing head & Spacer to mfg
gears up to 8 Meters in diameter. Machine is presently set up to produce
Spur gears only for both internal and external gearing.
Machine Capacities:
Max Gear Diameter.................................150"
Max Gear Diameter (w/ optional Spacer)............(320"**)
Max Face width.....................................55"
Max Internal Gear Diameter.........................155"
Min Internal Gear Diameter.........................40"
Max Pitch ........................................1 DP
Max Pitch (w/ optional 4.3 Head)...................(.75 DP**)
Machine Specifications and dimensions:
Diameter of work Table 102"
Bore Diameter in Work Table 29"
Maximum load on Table 50 Ton
Table worm Gear Diameter 96"
Number of Teeth inf variable
Power requirements 480V 3 Phase, 60Hz
Pneumatic requirements 80 CFM at 90 PSI
G&E Gasher with Standard Equipment:
Fanuc 18I- B Pendant Control with Gear gashing Software
Oil Recirculation w/ filtration
Oil Chilling System
Split 2-Piece table/ Stanchion Design
Single Stanchion machine assembly
Gashing Arbor
Chip Conveyor
Work Stands
Internal Cone for chip evacuation
Control Features
* C-Axis (Work Table Rotation)
* X-Axis (Radial Infeed)
* Z-Axis (axial Feed)
* Fanuc Spindle motor for Cutter Rotation
Programs Feature:
- Custom Macro Screens for Easy Conversational Programming
- 1 - 3 Cut cycle programming
- Crowning amounts are input by the desired amount on the flank of the gear
- Single Index Milling
- Programmable Taper
- Sizing cycle Feature (allows you to cut small numbers of teeth to make
corrections)
- RS-232, S Ram Card storage and Ethernet ports
Machine is equipped with the following Gashing Head as standard equipment:
*** (4.1) G&E Standard External Gashing Head
With 40 KW Spindle Motor
Head Capacities:
Maximum Gear Diameter 200"
Maximum Pitch Gashing 1 DP
Maximum shift Tangential 0"
Maximum Cutter Diameter 18"
Maximum Cutter Width 5"
Maximum Spindle speed 0-125 RPM
***(Optional) Internal Gashing Head
(5.2) G&E Standard Internal Gashing Head
Utilizing same 40 KW Spindle Motor,
w/ Direct Hook up with Quick Change Features
Internal Head capacities:
Minimum internal Gear Gear Clearance 32"
Maximum tooth pitch 1.5 DP (17 Mod)
Maximum Face width 14.2"
Maximum Throat Distance 17"
Maximum spindle speeds 0-125 RPM
Maximum Diameter Cutter 16"
Maximum Cutter Width 90 mm
***(Optional) External Gashing Head
(4.3) Modul Heavy duty External Gashing Head **
Head Capacities:
Maximum Gear Diameter 320"
Maximum Pitch Gashing 0.75 DP
Maximum shift Tangential 0"
Maximum Cutter Diameter 20"
Maximum Cutter Width 5"
Maximum Spindle speed 0-125 RPM
The 4.3 Head needs to be purchased to be able to cut the larger
gears over 200" and up to 8 meter capacity as well as gears with
a pitch larger than 1 DP.
THESE (Optional) INTERNAL & EXTERNAL HEADS CAN BE SUPPLIED AT ADDITIONAL
COST:
5.2 Optional Internal Gashing Head Priced at: $275,000. USD
4.3 Optional External Heavy Duty Gashing Head Priced at: $325,000. USD
Machine is presently designed as a Pit Mount machine, where the table is
flush with the floor. This machine is being supplied with the Standard
External Gashing Head model (4.1) described above as noted.
Machine is being sold with all misc tooling & fixtures purchased
by customer and fitted for this machine!!!
Price includes loading on customers trucks
Installation can be quoted based on a pit or floor mount positioning. It can
be quoted as a complete job or on an hourly basis. Customer is responsible
for all rigging, unloading, foundation work and cat walk. Piselli
Enterprises would quote for supplying the labor for completing the machine
wiring, hook-up, and final installation, once machine is properly placed in
its final position. Piselli enterprises can also quote the Operator training
as well on site.
Machine is sold on a first come basis.
Terms
-90% down with order and prior to shipment
-Balance due 30 days after shipment, or installation if Piselli ent. is
contracted to install in USA.
Original foundation drawings and manuals are also included with machine
purchase.
We look forward to discussing the options we have for this machine and know
that this proven design will be an excellent addition to any gear shop!
