Used 1958 LORENZ E30/40 | GEAR HOBBERS

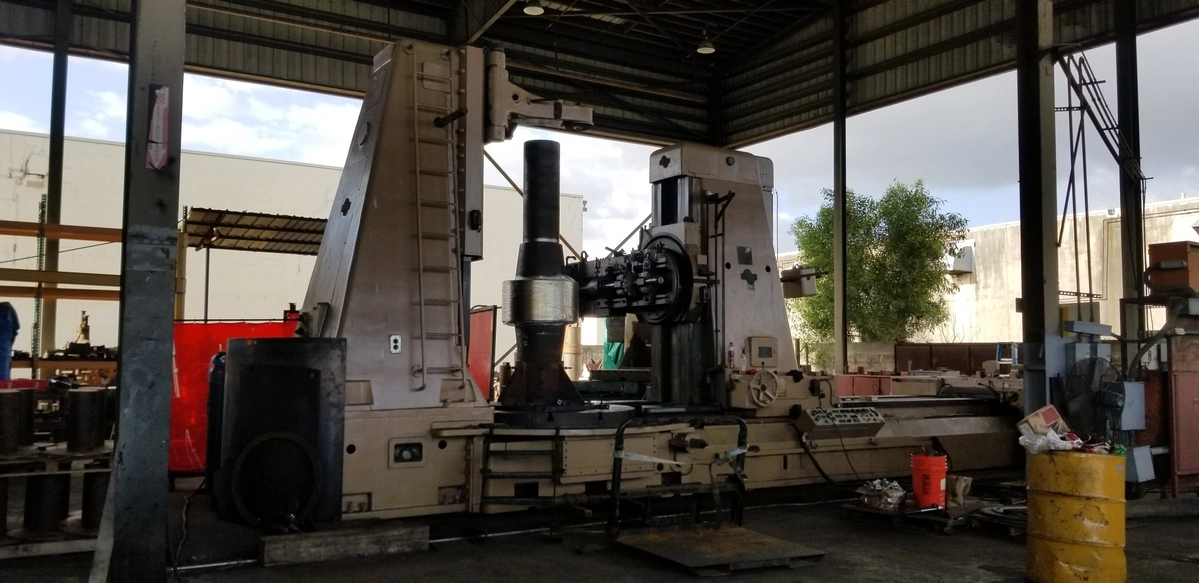

LORENZ HEAVY DUTY GEAR HOBBING , CUTTING & MILLING MACHINE
Model E30/40 S/N 8012 NEW 1958
Machine was Rebuilt in 1978

This machine is one of the finest large capacity hobbing machines available
today, this heavy duty hobbing machine can cut up 22' (276") Diameter Gears
and is equipped with all the special heads, tooling and fixturing which it
was purchased with. I had sold this machine to the present customer back in
early 2000 and assisted in the setting up of this amazing machine in the
customers present location. This Universal External & Internal machine is a
must for any company Mfg large gears with heavy pitch. Inspect this machine
under power today!!

Machine Specifications are as Follows:
Capacity: External Diameter Gears
Maximum diameter gears w/out support....................................276"
Maximum diameter Gears w/ support in place...............................67"
Maximum Face cutting capacity............................................56"
Maximum vertical hob slide travel........................................57"

Maximum (coarsest) Recommended diametral pitch (module)
- Hobbing........................................................... 0.8 DP
- Milling cutter.................................................... 0.6 DP
- End Mill (Pencil Type)............................................ 0.5 DP

Maximum center distance between hob and table...........................145"
Minimum center distance between hob and table.........................4-3/4"

Max Distance between top of table and hob arbor..........................74"
Min Distance between top of table and hob arbor..........................18"

Table Diameter.........................................................79.4"
Table Bore diameter......................................................26"
Table Bore depth.........................................................60"

Machine is equipped with the following:
-External Hobbing Head
-Internal cutting head
-External Milling head
-Tailstock support column & Pinion support
-Table support brackets and workholding
-Extended diameter sub table (overlay table for large diameters)
-Full gearing and tooling package
-Books and Manuals and machine documentation

Please contact us to set up an under power inspection of this well equipped
universal machine.
We look forward to discussing your gear requirement needs for this and other
gear machines we sell.
