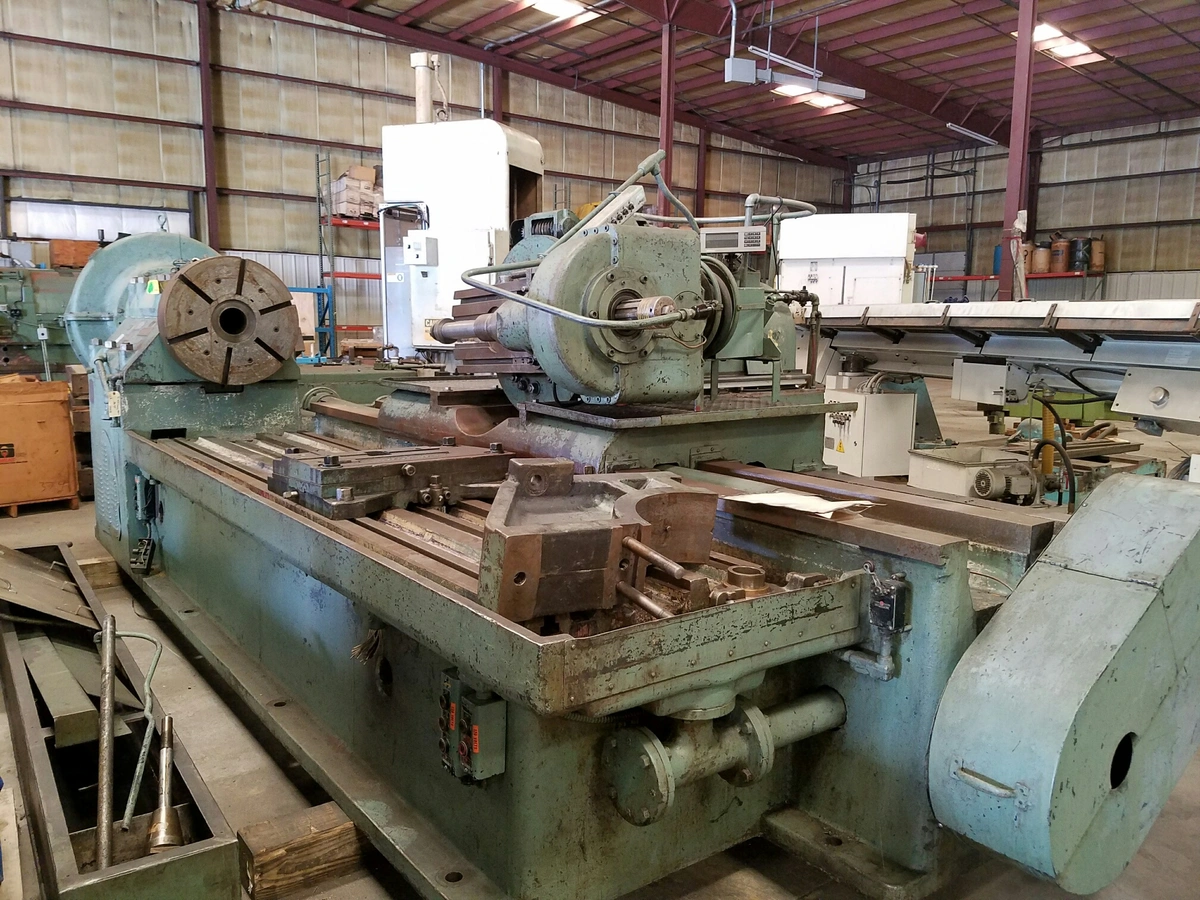

Used FITCHBURG 8*42 | GEAR HOBBERS

Horizontal Spline & Pinion Hobber
For Producing High Accuracy Pinions and Shafts
***U>S> Naval Surplus***

Max DP...............................................................1-1/4"
Max OD Hob...............................................................8"
Max outside Diameter of Workpiece.......................................40"
Max Face (Length of Cut)................................................82"
Max Distance Between Centers...........................................107"
(Journal Centers)
Index Wheel Diameter....................................................36"
Hole in Spindle..........................................................5"
Floor Space (approx)...............................................9' x 24'
Approximate Weight..............................................40,000 lbs

Equipped with:
*Differential
*24" Face plate (6 T-slots)
*21 Face plate
*(2) Journal Supports
*12" Pot Chuck Fixture
*Hob Arbors (2-1/2")
*Digital Readout Infeed Axis
*Change gears
*Hob Arbors

NOTE:  Basic Electrical Panel is Missing
