Gleason Model 14 coniflex Straight bevel gear generator , 24" diameter , 3 DP, s/n 25822 needs rebuilding !!!!
Have one to sell?
ConditionUsed
1 available

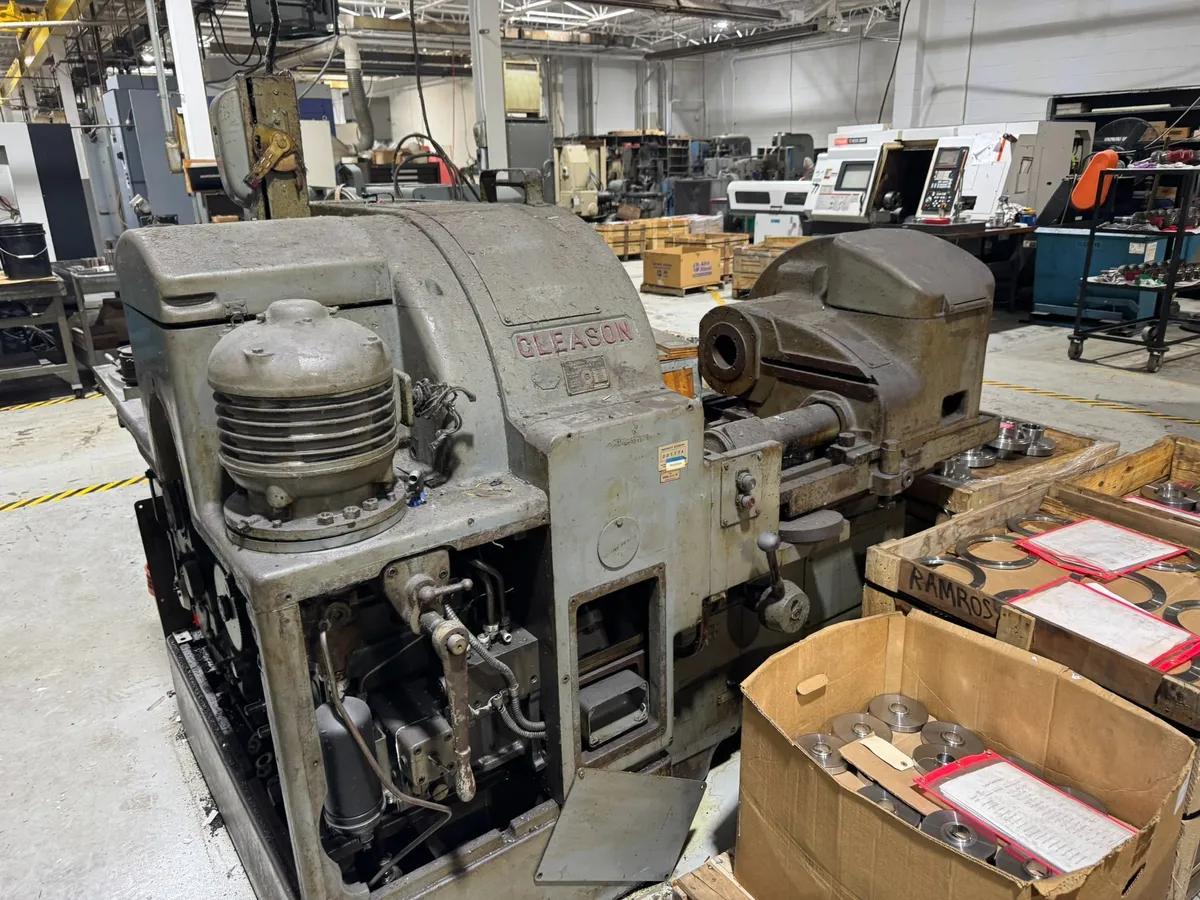

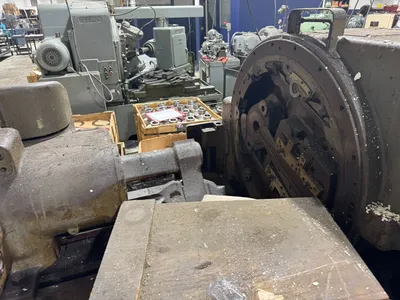

Gleason Model 14 coniflex Straight bevel gear generators for 24" Diameter, 3 DP , s/n 25822 inquire on delivery.
Gleason straight Bevel Coniflex Gear generators
Model 14 coniflex

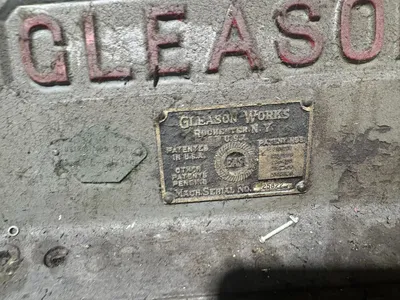

s/n 25822
these machines can be inspected under power in our statesville NC. facility
with proper notice . please contact us for under power inspection , videos
& tooling, etc.
Machine specifications:
Max. Pitch Diameter of Gear 24"
Max. Cone Distance 12"
Max. Face Width 3.5"
Stroke Length 0.5" to 4.25"
Max. Pitch 3 D.P.
Pitch Angle 5˚42' to 105˚
Extreme Ratio 10:1
Stroke Rate 64 strokes/min
to 495 strokes/min
Machine weight 8500 KG
Machines are equipped with the following :
gauges
change gears
Manuals
contact us today to inspect machines under power . we reserve the right
to sell machines to the first come buyer . come inspect and purchase
either one or two machines . package price for both machines considered!
visit www.pisellient.com to view machines or contact Rich At
rich@Pisellient.com for a formal quote request
