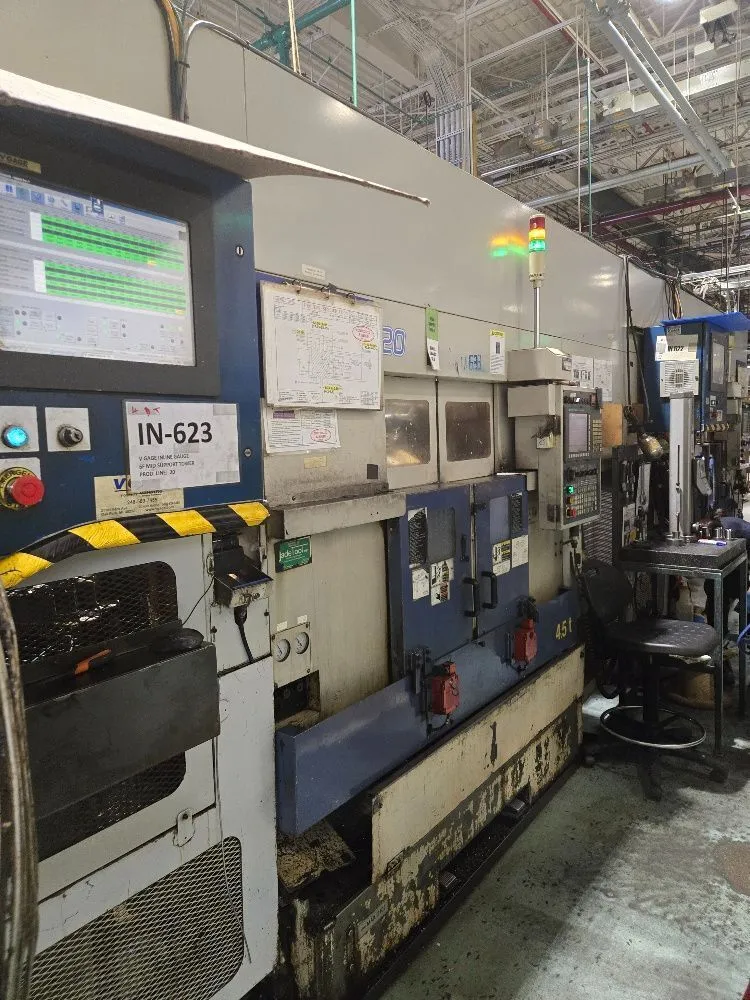

Muratec Model MW120 twin spindle single gantry CNC Turning center new 2012

Muratec Twin Spindle CNC turning machine
Model MW 120
New 2012

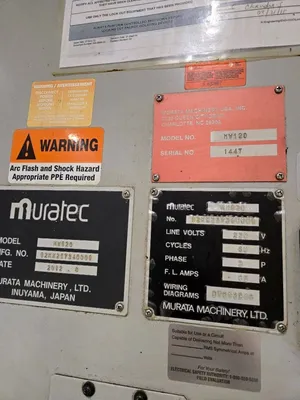

s/n 1447
Excellent condition

This Muratec Model machine is set up in customers plant under power
it is a gantry fed machine . inspect under power with proper notice
prior to loading

machine specifications are as follows:

Distance between spindles 340 mm
Max Swing 295 mm
chuck size 205 mm
Max diameter w/ Loader 120 mm
Max diameter without Loader 230 mm
Number of turret stations 8
Stroke - X-axis radius 130 mm
- Z-axis 145 mm
Rapid Traverse rate X-axis 24 m/min
Z-axis 24 m/min
Max spindle speed 4500 rpm
Standard tools - Shank size OD tools 20 mm
- Max shank diam boring bar 40 mm
Machine weight 4400 kg
Machine foot print Length x width 1900 mm X 1760 mm

Machine is equipped with the following:
Muratec / Fanuc pendant controller
Single Gantry style machine
chip conveyor
stacker loader option (TBD)
Books and Manuals

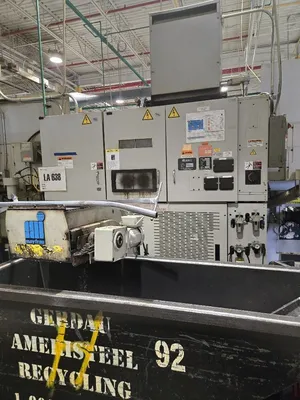

This machine looks to be in good running condition . see photos and general condition.
ask rich@piselliEnt.com or view at WWW.Pisellient.com for additional photos and info.

Machines are sold as is and as equipped in photos. contact us today to set up an
inspection to view the machines in NJ Plant under power.
Contact rich Piselli at rich@pisellient.com for more info or to make an offer
