Used PFAUTER P-160 HORIZ | GEAR HOBBERS

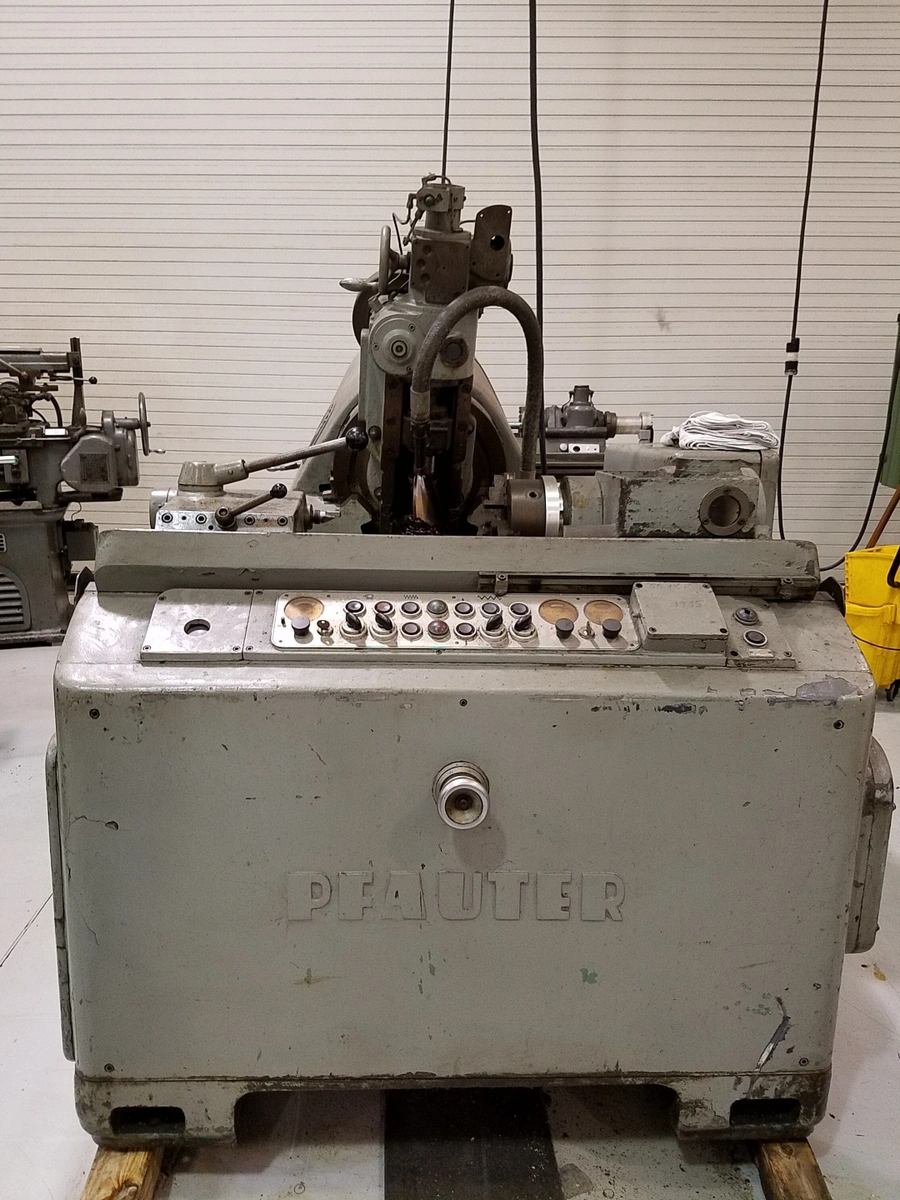

Pfauter Horizontal Gear hobber
Model P-160 H
s/n 18314

This Pfauter Horizontal hobber is a very rigid, Heavy duty hobbing machine.
The machine utilizes a robust gear train to mfg some of coarse pitch splines
of high accuracy.

Machine specs are as follows:
Max diameter..............................................................7"
Max part length..........................................................14"
Max pitch..............................................................6 DP
Max diameter hob........................................................4.5"
hole through work spindle.................................................3"

Machine is equipped with the following:
Differential
1 hob arbor
push button controls
tailstock and center
precision 3-jaw chuck
Electrical prints

Full catalog of machine features can be forwarded for your review upon
request.
A special machine for the difficult parts to cut!!

Machine can be inspected under power in Nc with proper notice.
Contact us today for more information on this machine and others you may
require.
