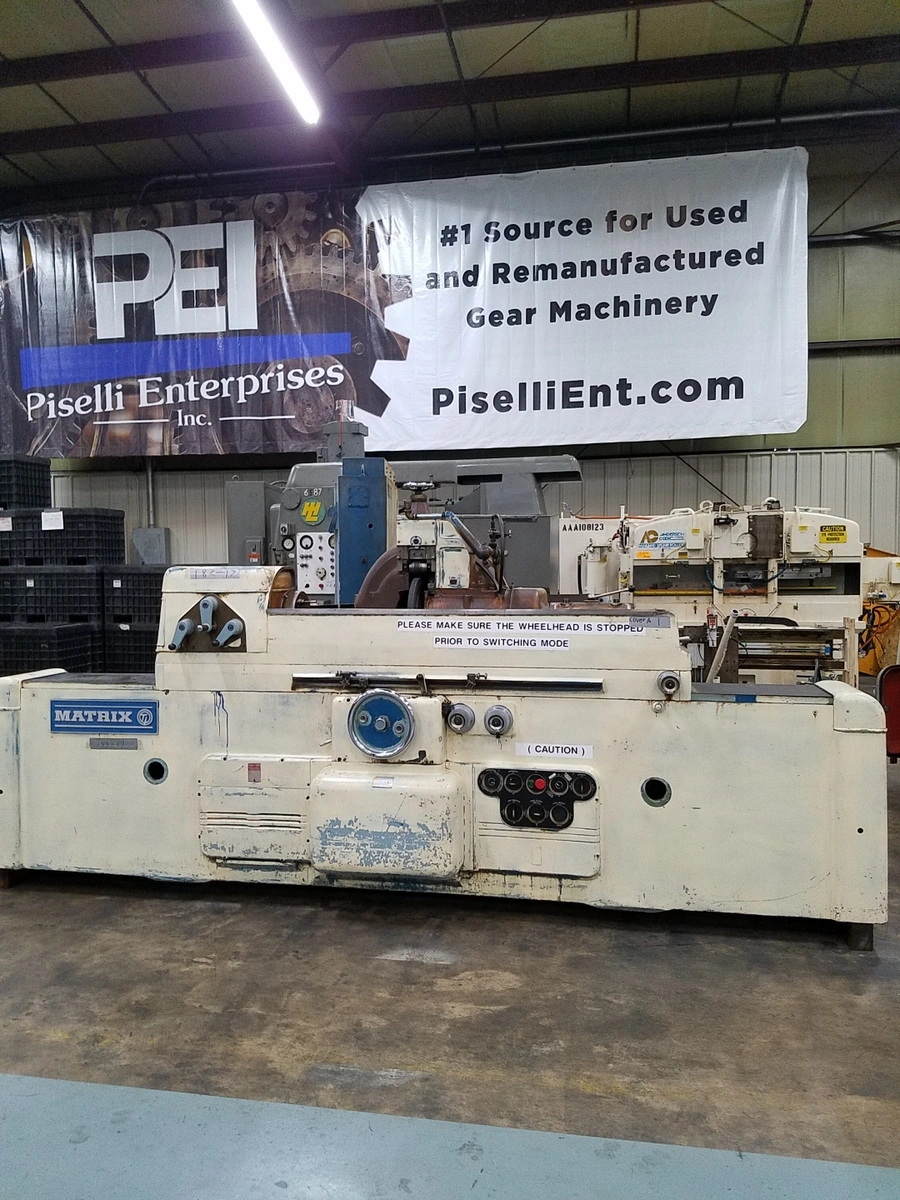

Matrix Model 46 Universal External thread grinder, equipped with filtration unit, change gears tooling, wheel flanges etc. inspect in Statesville, NC.
Matrix Universal External Thread grinding Machine
Model # 46 Universal
Machine number MAC 5050-1121
Machine specifications are as follows:
Max Length Between Centres...........................................1066mm
Max Length with Chuck.................................................984mm
Max Diameter of Workpiece.............................................254mm
Max Length Ground at one Setting.....................................1041mm
Max Lead Recommended..................................................304mm
Min Pitch Recommended................................................60 TPI
Max Helix Adjustment..............................................45 Degree
Max Capacity of Collet.................................................38mm
Max Including Taper per Foot.........................................25.4mm
Relief
Variable.............................................................0-5m/m
Workhead Speed Range..............................................21-39 RPM
Return Speed
Variable to..........................................................60 RPM
H.P. of Wheelhead Motor..........................................3.5 / 1.75
H.P. of Workhead Motor.................................................0.75
Max Weight of Workpiece..............................................100 lb
Head and Tailstock Centres.......................................No 4 Morse
Standard Wheel Diameter...............................................406mm
Machine is equipped with the following items
-wheel flange
-change gears
-filtration unit
-misc tooling
Machine can be inspected under power with proper notice. Machine came from
Gear shop in the midwest in good running condition.
* Contact us today for more information, Photos and formal quotation*
Contact: Rich Piselli | Rich@piselliEnt.com
