Fellows Model FS-400-125 Remanufactured CNC 6 Axis Gear Shaper, 15.7" Dia, 5" Face, 3.5 DP
Fellows model FS-400 re-control
This machine is to have the present controls replaced with GE Fanuc 32i
controls, and remanufactured to original manufactures standards.
MACHINE SPECIFICATIONS:
Max pitch diameter (External) 15.7"
Max pitch diameter (Internal) 15.7"
Max face width 5"
Maximum Diametrical Pitch 3.5 DP
Stroking Speeds 20 to 1000 SPM
Worktable Diameter 20"
Max distance under cutter spindle to table 17''
Spindle Diameter 4.13"
Max spindle travel 6.7"
Machine Net Weight, Approx 20,000 lbs
Dimensions (L x W x H) 12' x 7' x 8'
Electrical System:
* Motors for all axes to be replaced with comparable Fanuc motors.
* Heidenhain linear scale for X axis
* Fanuc 32i A5 Control
* New electrical panel with pendent arm
* 480 Volt, 60 hz, 3 phase and/or 380v, 50hz,
* Hoffman air condition system
Hydraulic System:
* Replace existing servo valve
* Rebuild main motor
* Rebuild circulation pump
* Replace all sensors and hydraulic solenoid valves if required
* New wiring and hoses
* Replace heat exchanger
* Rebuild hydraulic pump
* Add new Johnson Thermostat to monitor hydraulic oil temp
* New hydraulic oil chiller
Mechanicals:
The machine mechanicals will be dismantled inspected and repaired as
necessary to meet original manufacturer's quality specifications. Including
but not limited to the following:
* Both upper and lower worm and worm wheels will be inspected and re-cut if
necessary and adjusted for proper backlash and contact pattern
* X-Axis box ways reground and fitted
* Cutter spindle bushing refit to factory specifications
Control Features:
* Fanuc 32i controller
* Color CRT
* The CNC will control the following axis:
- C Axis work table rotation
- X Axis work table infeed
- B Axis cutter spindle rotation
- Z Axis spindle positioning
-W Axis stroke length
- A Axis cutter spindle speed
* CNC Controller has Macro screens for "operator friendly" question and
answer setups.
* One to five cuts selected by CNC controller
* Segment cutting
* Single index and/or slot cutting
* Part programs can be stored in nonvolatile 2MB memory with up to 36
character part numbers
* RS-232 and Ethernet communications port
* Custom programming available based on customers requirement at additional
cost.
Paint:
* Machine to be painted to customers specifications not to exceed 2 colors.
* Standard R.P. Silver/White on Blue
GENERAL TERMS AND CONDITIONS:
Delivery:
* 4 months from the receipt of purchase order and deposit
Transportation:
* Machine is sold FOB RP Machine Statesville NC.
* CIF quotes available upon request
Runoff Criteria:
* To be determined
Installation and Training:
* This price includes the services of a factory service engineer to assist
customer in set-up of machine in the US only. International installation
will be quoted at additional cost. The customer is responsible for machine
foundation, rigging machine in place and supplies all hook ups to power,
air, and water. The factory service engineer completes installation with
customer supplied assistance.
The factory service engineer completes demonstration of the machine
run-off, capabilities and operator instruction for a period of not to
exceed 3 weeks. Extended service is available at our normal service rates
in effect at the time of installation.
Warranty:
* One (1) Year warranty on parts and labor
* Fanuc Controls, motors, and drives are supported with a two (2) year Mfg.
part warranty
Validity:
* This quotation is valid for 30 days and subject to availability
Price For Machine Sold As Is:
$35,500
Payment:
50% down payment with purchase order
40% Upon successful runoff at RP Machine
10% Net 30 days from receipt of machine

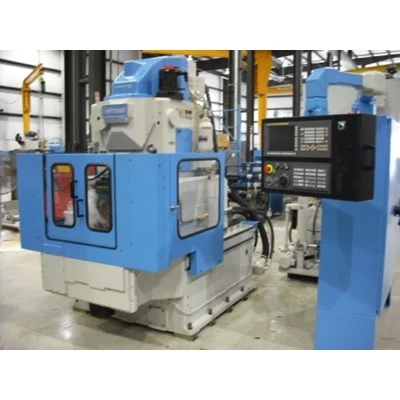

**Images are of sample product**
