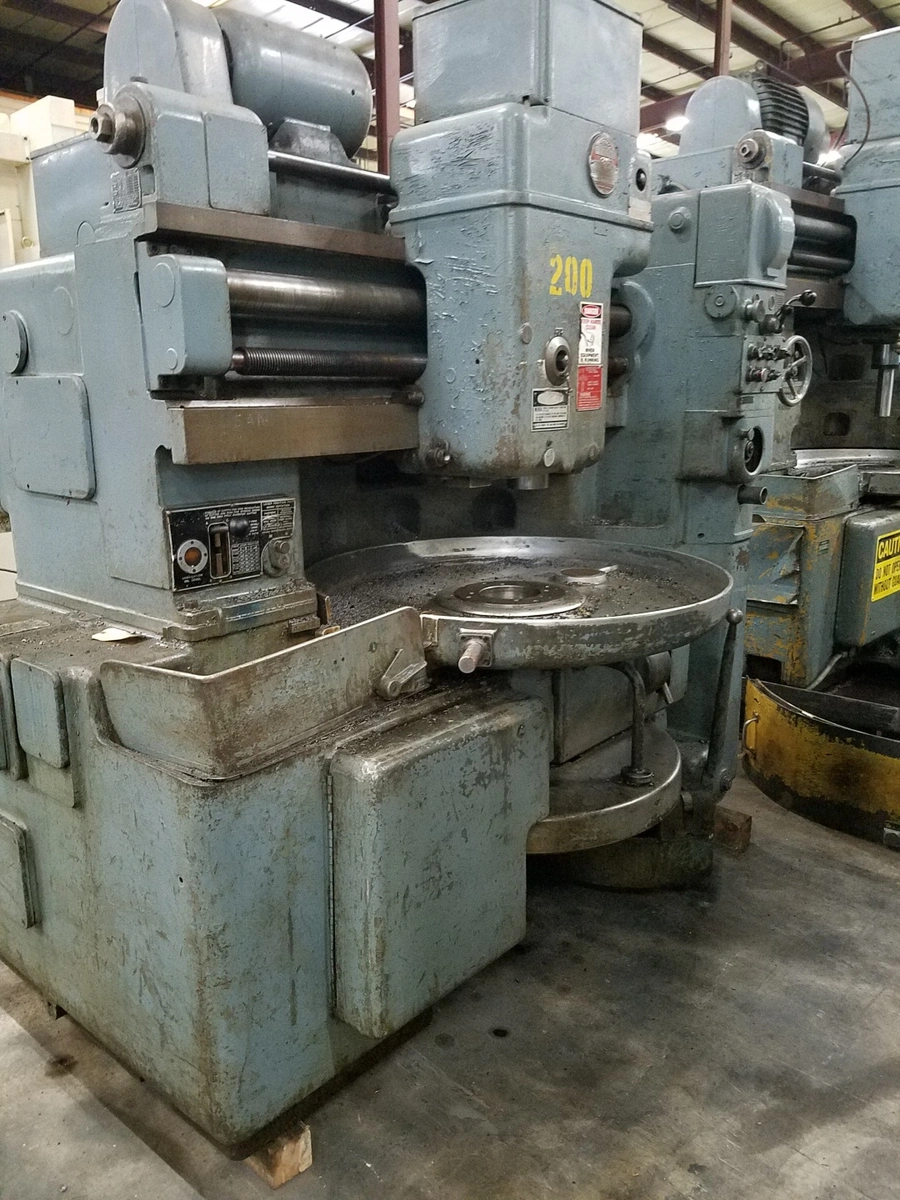

Fellows model 36-6 Gear shapers, 40" max diameter capacity, 6 " diameter stroke, 4" spindle diameter, 0-3" Riser configurations. (4) available. Priced to move!!! inspect in Statesville, NC under power !!
Fellows Gear shaping machines (4) Available
Model 36-6
S/N 33440, 30559, 30529,
equipped w/ 0" - 3" Riser assemblies
These fellows model 36-6 machine will be gone through and adjusted as
required, entire machine has already been inspected and workload required is
understood for customer to receive a good running machine; 2 weeks of work
and another week for cleaning and painting for a total of 3 weeks from
receipt of order and down payment.
MACHINE SPECIFICATIONS:
* Maximum Pitch Diameter External........................................40"
* Maximum Pitch Diameter Internal........................................36"
* Maximum Workpiece & Fixture Diameter...................................42"
* Maximum Face Width......................................................6"
* Stroke Length...........................................................6"
* Maximum Helix Angle................................................45 deg
* Maximum Diametral Pitch
-For Spur Gears........................................................3 DP
-For Helical.........................................................4/5 DP
* Work Spindle Bore Diameter..........................................5.875"
* Twelve (12) Stroking Speeds, w/ranges..........................18-300 spm
* Machine Dimensions......................................92" x 60" x 100"H
* Machine Weight, Approx.........................................17,000 Lbs
Machine Is Equipped With:
0-3" Riser Assembly depending on machine selected
4" spindle diameter
Misc. Change Gears
1 Cutter Adapter
Machine Guarding
operators Manual
Machine(s) can be inspected under power with proper notice. Additional
adaptors can be purchased if required. Send us your part prints to confirm
what you require on this machine. Please note above that this machine will
require 3 weeks to complete from receipt of order. Standard silver white or
machine gray colors are available at No additional cost for this machine.
