Used FELLOWS Z | GEAR SHAPERS

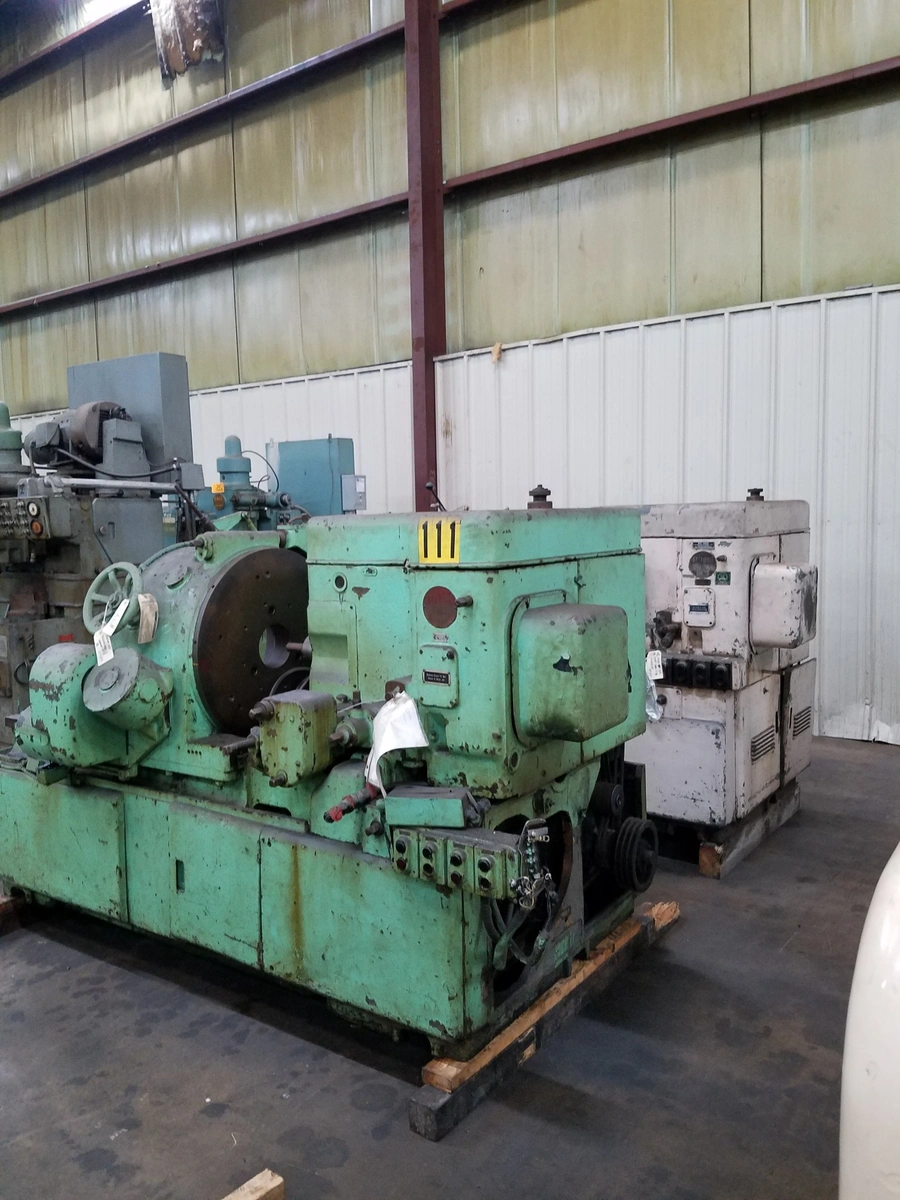

This Fellows Model Z Horizontal Gear shaper cuts gears with shafts held in
the Horizontal position. The machine has a large hole through the work table
allowing it the ability to cut large pinions and shafts which are supported
out the back of the machine. Different size journal supports can be adapted
to hold unique sized parts.

Machine general specifications are as follows:
Max diameter spline cut external........................................8.5"
Max Diameter gear cut internal...........................................17"
Max pitch...............................................................4/5
Max Face Capacity.........................................................5"
Max hole through the work table..........................................17"

Machine is equipped with the following
spur guide
1 cutter adaptor for button style cutters
faceplate on work spindle
1 set-up of change gears for one part
Machine manual

Machine can be inspected under power with proper notice in our
Statesville, NC plant.
