fellows Model 50-8 Hydrostroke gear shapers , 50" max diameter , 9" stroke 8" max face width, s/n 35833

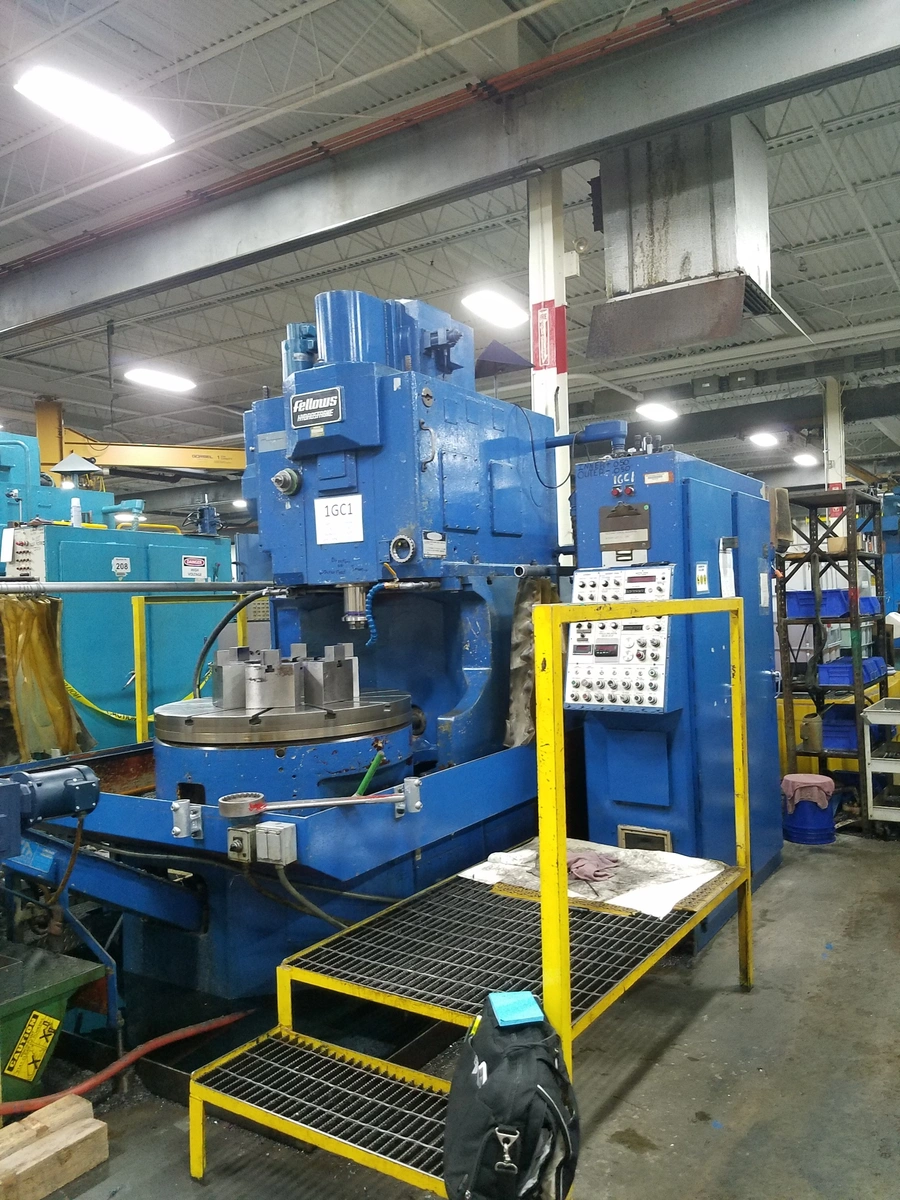

Fellows Model 50-8 Hydrostroke Gear shaping machines
s/n 35833,
NEW 1977

This Heavy Duty Gear shaping machines can be inspected in our statesville
NC plant with proper notice .

Machine Specifications are as follows:
Max External Gear.......................................................50"
Min External Gear....................................7.08" Minus cutter OD
Max Internal Gear.............................51.8" Minus 2x Rim thickness
Min Internal Gear.....................................7.28" Plus cutter OD
Max Pitch gear........................................................2 DP
Max Stroke length........................................................9"
Max Face capacity........................................................8"
Max clearance Height....................................................19"
Spindle Diameter.......................................................5.5"
Center Distance Max/Min.......................................30.9" / 3.55"
Table Diameter..........................................................44"
table Bore Diameter...................................................11.2"
floor space............................................12' wide x 18' Deep

Machine weight approx...........................................45,000 lbs
Machine floor space....................................12' wide x 18' long

Machine is equipped with the following:
Control panel
Cutter adaptor
Chip conveyor
Coolant tank
Change gears
Misc tooling
Books, Manuals & Electrical

The machine was producing good quality gears. call to set up an
inspection.

Note
Machine has been moved to our warehouse in NC. contact rich piselli
at Rich@Pisellient.com for more information or to set up inspection ,
visit our website to request a formal quote on line with pricing . type
www.pisellient.com and search fellows 50-8!!!
