Used FELLOWS 36-6 12" THROATED RISE | GEAR SHAPERS

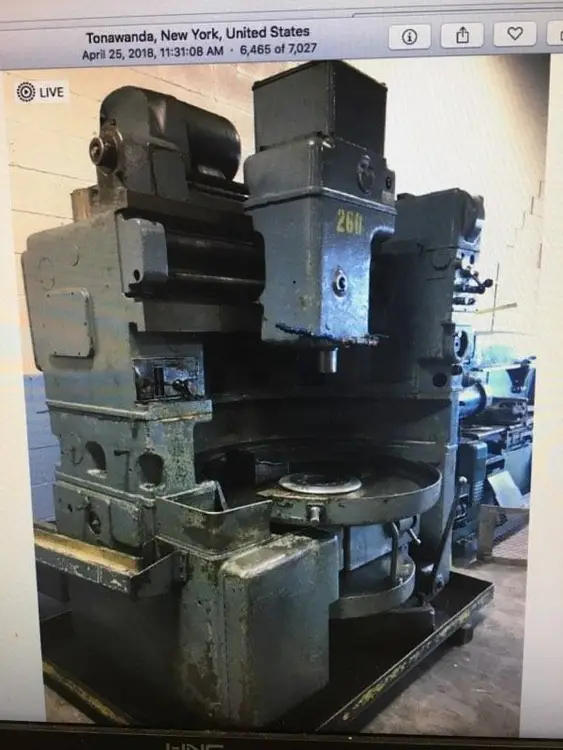

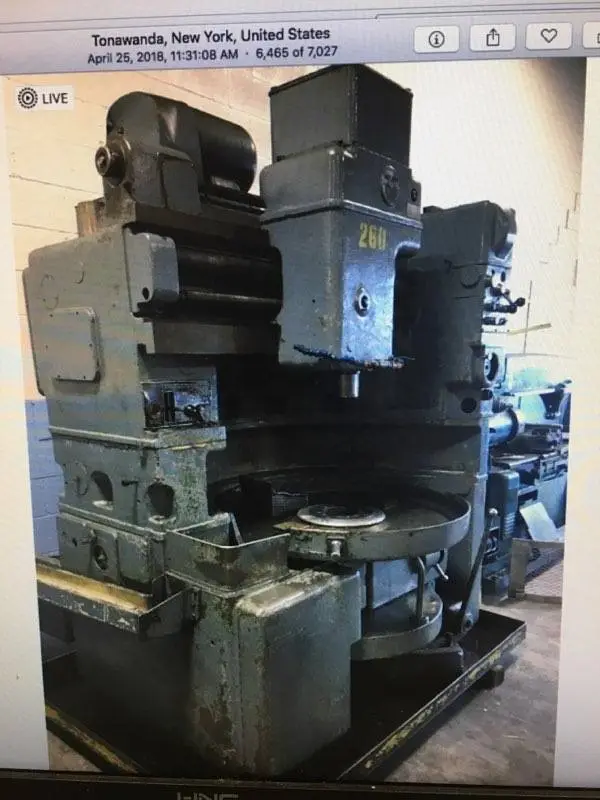

Fellows Gear shaping Machine
Model 36-6, S/N 26557
Equipped with 12" Throated riser assembly

This machine is equipped with a 12" Throated riser which allows you to swing
a larger diameter then standard. the machines are capable of shaping both
Internal and External spur gears with present spur Guides.

MACHINE SPECIFICATIONS:
* Maximum Pitch Diameter External........................................40"
* Maximum Pitch Diameter Internal........................................36"
* Maximum Workpiece & Fixture Diameter...................................44"
* Maximum Face Width......................................................6"
* Stroke Length...........................................................6"
* Maximum Helix Angle................................................45 deg
* Maximum Diametral Pitch
-For Spur Gears........................................................3 DP
-For Helical.........................................................4/5 DP
* Work Spindle Bore Diameter..........................................5.875"
* Twelve (12) Stroking Speeds, w/ranges..........................18-300 spm
* Machine Dimensions......................................92" x 60" x 110"H
* Machine Weight, Approx.........................................19,000 Lbs

Machine Is Equipped With:
12" Throated Riser Assembly for larger swing capacity
4" spindle diameter
Misc. Change Gears
1 Cutter Adapter
Machine Guarding

Machine can be inspected under power with proper notice. Additional adaptors
can be purchased. Send us your part prints to confirm what you require on
this machine.
