Used FELLOWS 36-Z-1 SPECIAL | GEAR SHAPERS

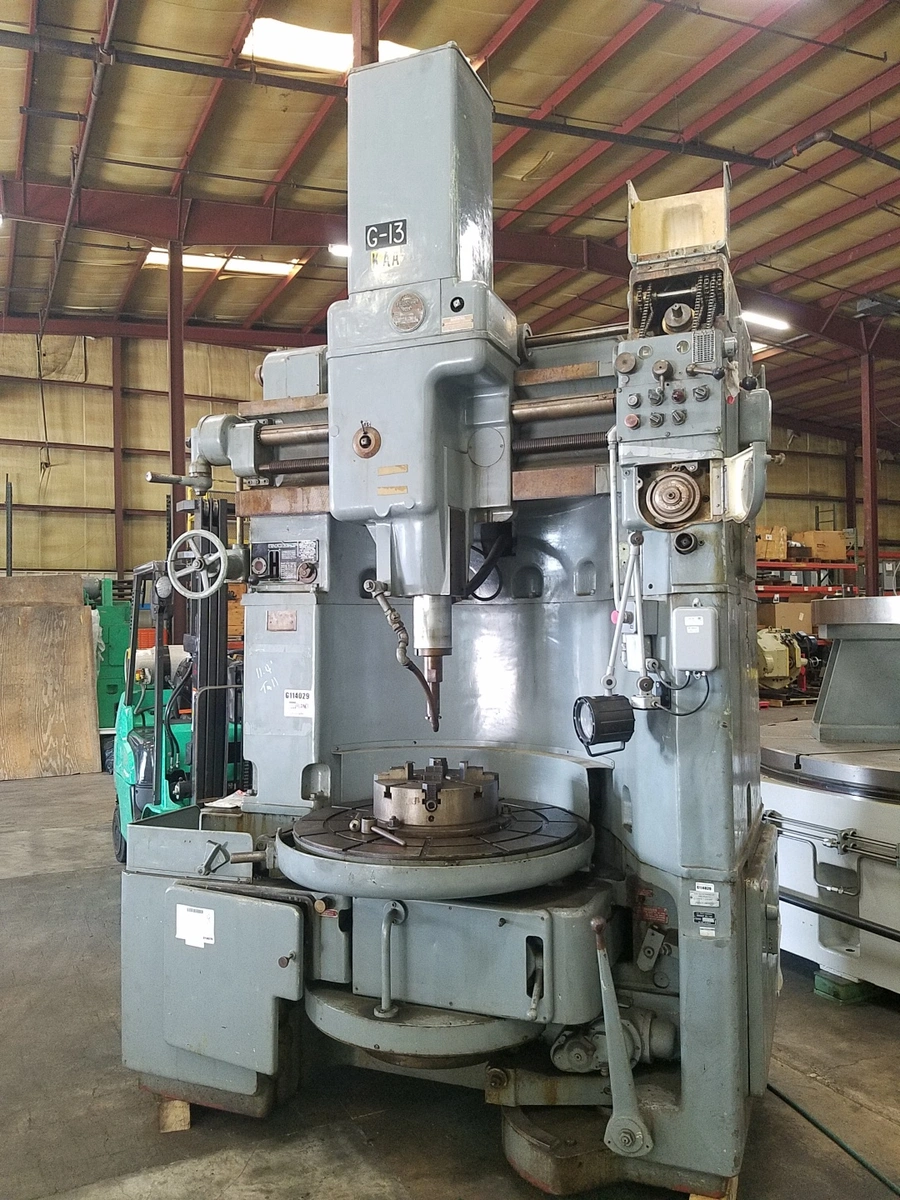

Fellows Special Gear Shaping Machine
Model 36 Z-1 SPECIAL
S/N 28540

This machine was purchased from Government surplus / Aerospace division.
The machine was specially designed by fellows with some very unique features.
The machine has extended stroke Positioning capabilities as well as the (z)
designation for heavy duty spindle and large hole in the table with Hi-Riser.
Another excellent machine offered by Piselli Enterprises.

Machine Specifications are as follows:
Maximum Diameter capacity................................................40"
Maximum stroke capacity...................................................6"
Maximum Height above Table...............................................28"
Maximum Height under cross slide.........................................31"
Maximum part swing Diameter..............................................42"
Diameter of table........................................................36"
Bore in the table.......................................17" Need to confirm
Depth of bore in the table................................? Need to confirm
Machine Voltage.......................................................480 v
Height of Machine.....................................................11' 4"
Weight of machine................................................19,000 lbs

Machine is equipped with the following:
Large Bore in the table (TBD)
Cutter Elevation Option for Extended positioning
36" table diameter
5" Heavy duty spindle
30" high riser assembly allowing 28" clearance height above 3" thick table
16" 4-Jaw independent chuck 5-1/2" tall w/ 4-1/4" bore
Extended cutter housing for Extended positioning
Extended 8" Cutter adaptor
Misc change Gears
Misc tooling

This machine was specially Designed by fellows for large hubs with internal
gearing down deep within the part. The large bore in the table feature
allows for dropping large parts down through the table and be able to swing
around under the spindle and be able to cut both internal or external gears
or splines on a variety of parts that are usually tough to MFG on standard
fellows equipment.

This machine shows no internal wear and has been extremely well maintained
coming from a high quality aerospace facility!! contact us today to set up
an under power inspection at your earliest convenience. Also visit our
