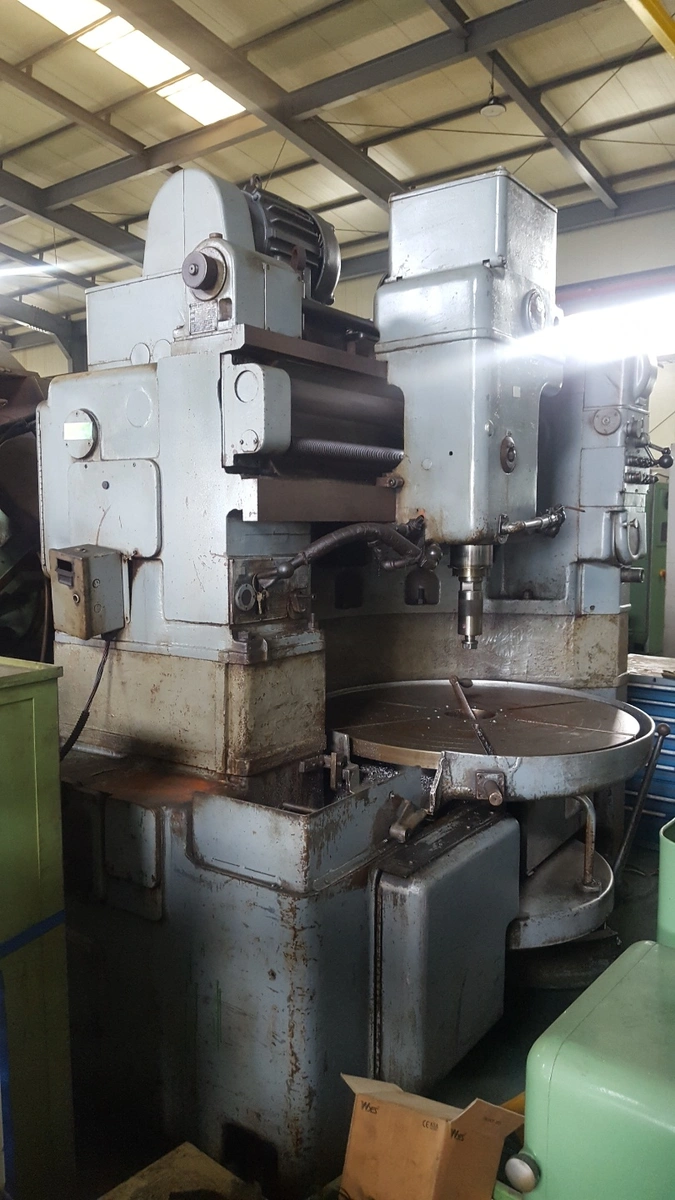

Fellows Model 36-6 Gear shaper , 40" diam cap., 6" stroke, 12" riser height, w/ 36" diameter table, excellent mechanical Condition s/n 32584
FELLOWS GEAR SHAPING MACHINE
Model # 36-6
s/n 32584
Machine is designed for cutting both internal and external Gears & Splines,
Machine is equipped with T-slotted table and 12" riser assembly for taller
parts and hubs. Contact us to learn more about our program for properly
adjusting and re-aligning this machine and any of our other fellows gear
shaper inventory.
MACHINE SPECIFICATIONS:
* Maximum Pitch Diameter External........................................40"
* Maximum Pitch Diameter Internal........................................36"
* Maximum Workpiece & Fixture Diameter...................................44"
* Maximum Face Width......................................................6"
* Stroke Length...........................................................6"
* Maximum Helix Angle................................................45 deg
* Maximum Diametral Pitch
-For Spur Gears........................................................3 DP
-For Helical.........................................................4/5 DP
* Work Spindle Bore Diameter..........................................5.875"
* Twelve (12) Stroking Speeds, w/ranges..........................18-300 spm
* Machine Dimensions......................................92" x 60" x 110"H
* Machine Weight, Approx.........................................17,000 Lbs
Machine Is Equipped With the Following:
12" Riser Assembly for taller parts
4" Spindle diameter
36" Diameter T-slotted table
Misc. Change Gears
1 Cutter Adapter
Machine Guarding
Books and manuals
Machine can be inspected under power with proper notice. additional adaptors
can be purchased. Send us your part prints to confirm what you require on
this machine.
