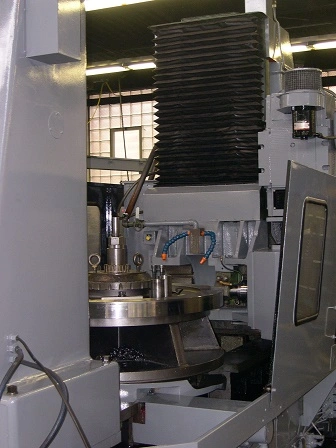

Gould & Eberhardt 60 S-2 CNC Gear Gasher, 60" Diameter cap, 1 DP, Machine to be retrofitted with Fanuc or Siemens Controls.
The Gould & Eberhardt #60-S2 is suitable for the high-speed cutting/gashing
of spur gears, sprockets, pinions, and other workpieces of similar profile up
to 60" in diameter, utilizing formed high speed steel or carbide tipped
disc-type cutters up to 18" diameter.
Machine Specifications:
External Gears with Gashing Cutter Head Gashing
* Max. Gear Diameter w/support..........................................40"
* Max. Gear Diameter w/o support........................................60''
* Min Gear Diameter....................................................1.5"
* Max. Face Width.....................................................38.5''
* Max. Shift or Tangential Slide.........................................0"
* Max. DP............................................................1 NDP
* Max. Cutter Diameter x Width.....................................18" x 4"
* Diameter of work table................................................34"
* Bore diameter of work table...........................................10"
* Max Table Load................................................20,000 Lbs.
* Pitch Diameter of index gear..........................................28''
* Index range, number of teeth.........................Infinitely Variable
* Machine height...................................................15-feet
* Weight of machine, Approx........................................20 tons
* Floor Space Required.............................20 ft. by 12 ft. approx.
Hydraulic Tailstock Work Ranges:
* Max Height From Table Surface.........................................34"
* Min Height from Table Surface..........................................8"
Heights can be adjusted based on customer part dimensions
Tailstock Features:
* Manual Retract
* Hydraulic Positioning via M code in Manual or Automatic mode
* Hydraulic Swing Away
* Dead or Live Center
Standard Equipment:
* Single stanchion machine assembly with external cutting head
* Fanuc Or Siemens 3-axis control with gear cutting software
* Oil re-circulation system with filtration for cutting head
* Hydraulic Oil Chilling System
* Gashing Arbor
* Chip Conveyor (Optional $ 15,000.00)
* Tailstock
* Half Cabin Enclosure
* 500lb Jib Crane (Optional $ 7,500.00)
* Set of Leveling Blocks
* Machine Painted to Customer's Specifications (2 Colors).
* Standard safety guarding and warning labels.
* 2- sets documentation (hydraulic, electrical, and operator)
Control Features:
* C-Axis work table rotation
* X-Axis radial infeed
* Z-Axis axial feed
* A-Axis cutter rotation
* Custom Macro screens for easy conversational programming
* One to 3 cuts can be selected
* Crowning amounts are input by the desired amount on the flank of the gear
* Single index Milling
* Control of separate entering and exiting feed rates to optimize cycle
times and cutting loads
* Selection of tailstock functions via m code
* Programmable taper cutting
* Sizing cycle feature used to make corrections to the size of a part
without running through a complete multi cut cycle
* Part programs can be stored in nonvolatile memory with up to 15 characters
* RS-232, S Ram, and Ethernet communication ports. (S Ram card included)
Machine Design Features:
* Base and Column are cast Iron construction with new design improvements to
maximize stiffness.
* All slide ways are hardened and ground to precision standards for accurate
dependable motion and long life.
* All Axes are digitally driven with separate servo drives and absolute
value encoders providing precision location at all times.
* Axis ball screw are 80mm by 10mm pitch.
* The work table is designed for maximum stiffness with hydrostatic bearing
surfaces supporting the work piece loads. Table rotation powered by a
separate servo drive system utilizing a worm gear design. Table position
is maintained with an absolute value encoder.
* The slide ways and all other lubrication points, with exception of the
cutter heads, are lubricated by an automated forced pressure lubrication
system.
* The lubrication reservoir is designed for visual observation and also has
an alarm system to assure maintenance of the lubrication levels.
* The cutter head is lubricated with a re-circulating oil bath. The oil bath
recirculation system is a free standing above floor system servicing only
the cutter heads. The re-circulation system includes filtration and oil
temperature control for consistent predictable performance and long life
of the cutter head gear drives.
* Self contained hydraulic system for hydraulic counter balancing of the
cutter saddle, and table braking.
GENERAL TERMS AND CONDITIONS:
Delivery:
Will Advise
Transportation:
TBD
* CIF quotes available upon request
Runoff Criteria:
TBD
Installation and Training:
* This price includes the services of a factory service engineer to assist
customer in set-up of machine in the US only. International installation
will be quoted at additional cost. The customer is responsible for machine
foundation, rigging machine in place and supplies all hook ups to power,
air, and water. The factory service engineer completes installation with
customer supplied assistance. The factory service engineer completes
demonstration of the machine run-off, capabilities and operator
instruction for a period of not to exceed 3 working days. Extended service
is available at our normal service rates in effect at the time of
installation.
Warranty:
* One (1) Year Service Warranty
* Fanuc AND/OR Siemens Controls, motors, and drives are supported with a two
(1)year Mfg. part warranty
* This quotation is valid for 30 days and subject to availability
Payment:
50% down payment with Purchase Order
40% Upon successful runoff at Piselli Enterprises
10% Net 30 days from Receipt of Machine
