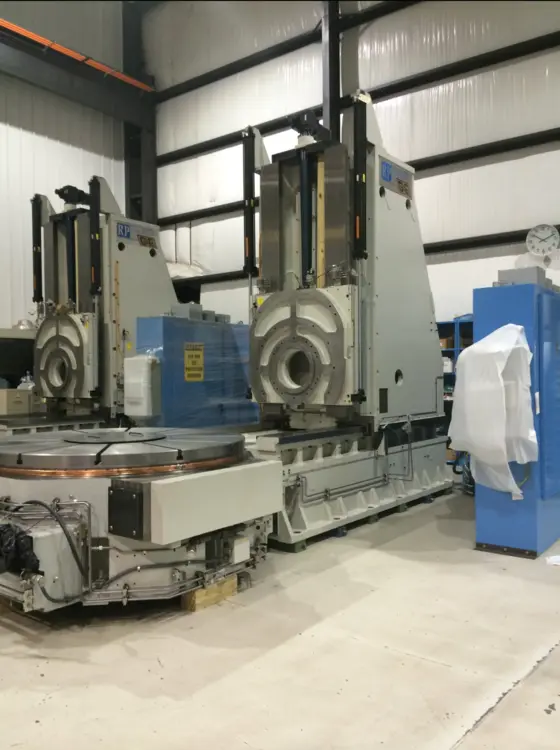

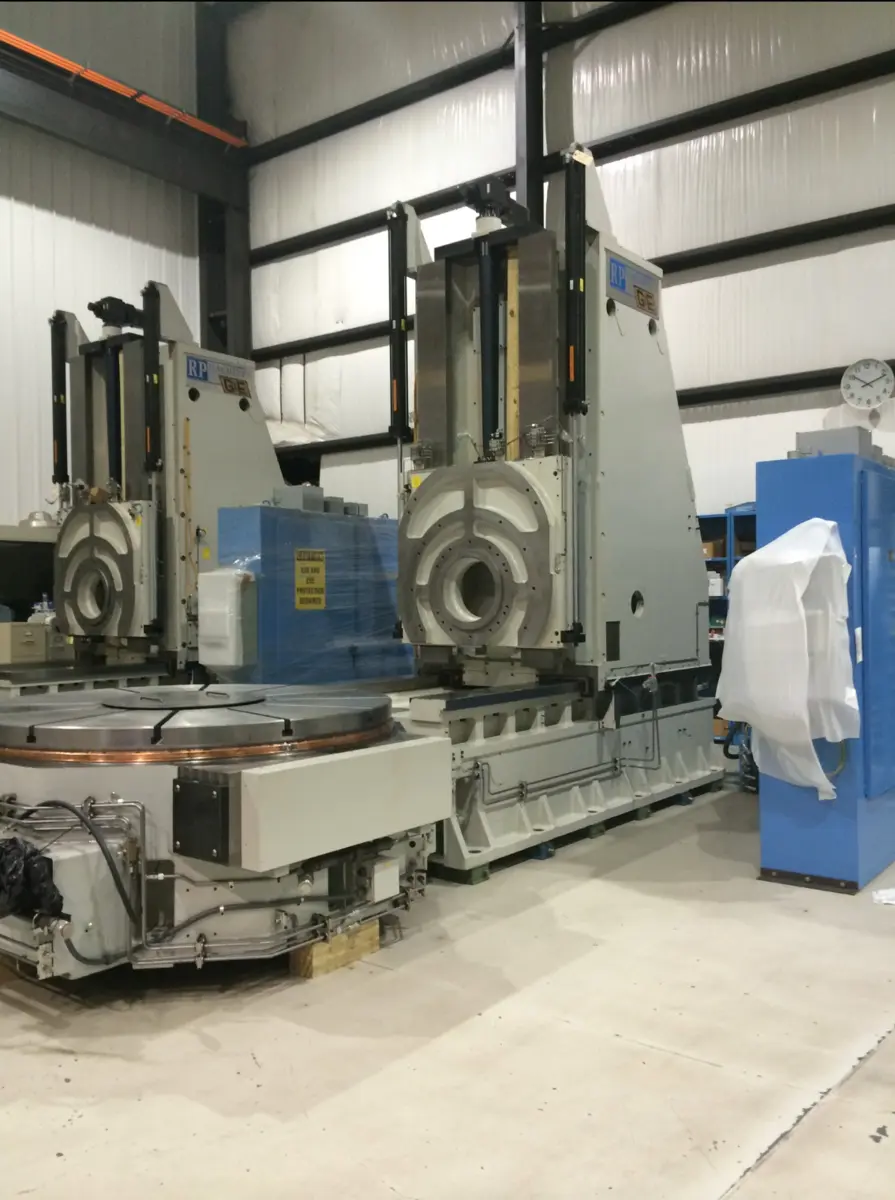

Gould & Eberhardt Model 120-G, 3 Axis CNC Gashing Machine, 150" ++ Max Diam, 50" Max Face, 1 DP., Fanuc 18I Controls, W/ External Gashing head. Delivered 2009. Excellent Condition!
Machine Capacities:
Max Gear Diameter......................................................150"
Max Face width .........................................................55"
Max Internal Gear Diameter.............................................150"
Min Internal Gear Diameter..............................................40"
Max Pitch.............................................................1 DP
Machine Specifications and dimensions:
Diameter of work Table.................................................102"
Bore Diameter in Work Table.............................................29"
Maximum load on Table...............................................50 Ton
Table worm Gear Diameter................................................96"
Number of Teeth...............................................inf variable
Power requirements .....................................480V 3 Phase, 60Hz
Pneumatic requirements....................................80 CFM at 90 PSI
G&E Gasher with Standard Equipment:
Fanuc 18I- B Pendant Control with Gear gashing Software
Oil Recirculation w/ filtration
Oil Chilling System
Split 2-Piece table/ Stanchion Design
Single Stanchion machine assembly
Chip Conveyor
Control Features
* C-Axis (Work Table Rotation)
* X-Axis (Radial Infeed)
* Z-Axis (axial Feed)
* Fanuc Spindle motor for Cutter Rotation
Programs Feature:
- Custom Macro Screens for Easy Conversational Programming
- 1 - 3 Cut cycle programming
- Crowning amounts are input by the desired amount on the flank of the gear
- Single Index Milling
- Programmable Taper
- Sizing cycle Feature (allows you to cut small numbers of teeth to make
corrections)
- RS-232, S Ram Card storage and Ethernet ports
Machine is equipped with the following Gashing Head:
(4.1) G&E Standard External Gashing Head
With 40 KW Spindle Motor
Head Capacities:
Maximum Gear Diameter..................................................200"
Maximum Pitch Gashing.................................................1 DP
Maximum shift Tangential.................................................0"
Maximum Cutter Diameter.................................................18"
Maximum Cutter Width.....................................................5"
Maximum Spindle speed............................................0-125 RPM
Optional Internal Gashing Head
(5.2) G&E Standard Internal Gashing Head
Using same 40 KW Spindle Motor, w/Direct Hook up with Quick Change Features
Internal Head capacities:
Minimum internal Gear Gear Clearance....................................32"
Maximum tooth pitch.........................................1.5 DP (17 Mod)
Maximum Face width....................................................14.2"
Maximum Throat Distance.................................................17"
Spindle speed....................................................0-125 RPM
Maximum cutter Diameter.................................................16"
Maximum Cutter Width..................................................90mm
THIS INTERNAL HEAD CAN BE SUPPLIED AT ADDITIONAL COST (Inquire)
This machine is being supplied with the Standard External Gashing Head model
(4.1) described above as noted.
Machine is being sold with all misc tooling, fixtures and cutters purchased
by customer for this machine!!!
The machine has been removed from service and put in storage after only
being used to cut 15-20 Test gears prior to the WIND ENERGY crash in 2009.
Price includes loading on customers trucks
Installation can be quoted based on a pit or floor mount positioning. And
or as a complete job or on an hourly basis. Customer is responsible for all
rigging, unloading and foundation work. Piselli Enterprises would quote for
supplying the labor for completing the machine wiring, hook-up, and final
installation, once machine is properly placed in its final position.
Piselli enterprises can also quote the Operator training as well on site.
Machine is sold on a first come basis.
*Terms
Payment is due in full prior to loading from customers facility.
Original foundation drawings and manuals are also included with machine
purchase.
