Barber Colman model 14-30 Gear hobbing machine, 14" Diameter, 30" cut Length, Differential, Dwell, rough & finish cycle, automatic cycles, good condition machine. inspect under power with proper Notice !!

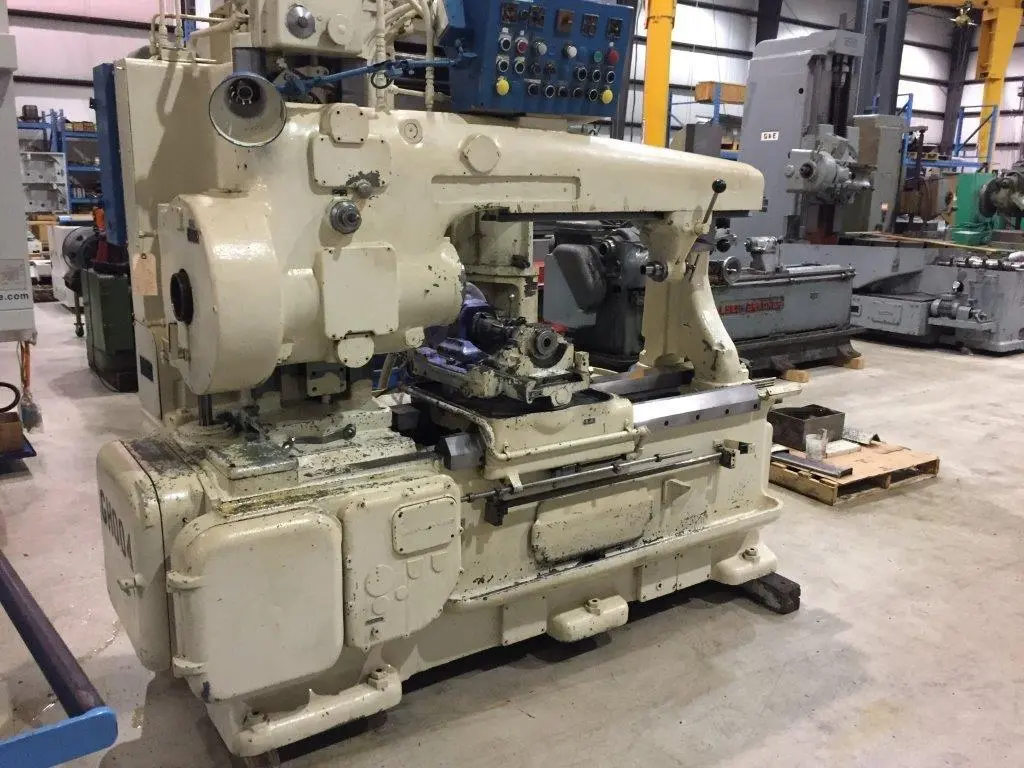

Barber-Colman Horizontal Gear hobbing Machine
Model 14-30
S/N will advise
New
This machine is a very nice universal Horizontal gear hobbing machine.
This automatic cycle machine is a rare machine offered by Barber-colman is
of very rigid design and is an Extended version of the model 14-15 Hobber.
All tooling and fixturing should be interchangeable between one another.
The Specifications of the machine are as follows:
CATALOGUE SPECIFICATIONS:
Maximum Rated Work Diameter................................. 14"
Maximum Pitch in Steel...................................... 3.5 DP
Maximum Travel of Hob Slide................................. 30"
Maximum Distance Work Spindle Face to Tail Center........... 27.25"
Maximum Distance Work Spindle Centerline to Hob Spindle..... 9.75"
Minimum Distance Work Spindle Centerline to Hob Spindle..... 1.75"
Work Spindle Bore (Standard)................................ 4.18"
Index Worm Gear Pitch Diameter.............................. 17.9"
Maximum Number of Teeth Cut................................. 300/4
Maximum Hob Diameter (Standard)............................. 6.25"
Maximum Swivel Angle (Helix) Setting R/L.................... 50 DEGREES
Maximum Hob Shift Travel.................................... 4"
Main Drive Motor............................................ 10 HP
Hydraulic Pump Motor........................................ 3 HP
Lubricating Pump Motor...................................... 1/4 HP
Coolant Pump Motor.......................................... 1 HP
Approximate Machine Dimensions.............................. 130" x 81"
Approximate Machine Height.................................. 90"
Approximate Machine Weight.................................. 13,500 LBS
tHis machine can be inspected under power in excellent condition
with proper notice as the electrical panel would need to be wired
back to the machine . purchase order subject to under power
inspection would be required .
thank you and visit our website for more gear machine selections
www.piselliEnt.com or contact rich Piselli at Rich@Pisellient.com
