Escofier Incremex 300 E Spline Roller remanufactured in 2011, 45mm part Diameter, 300mm forming dies new 2011

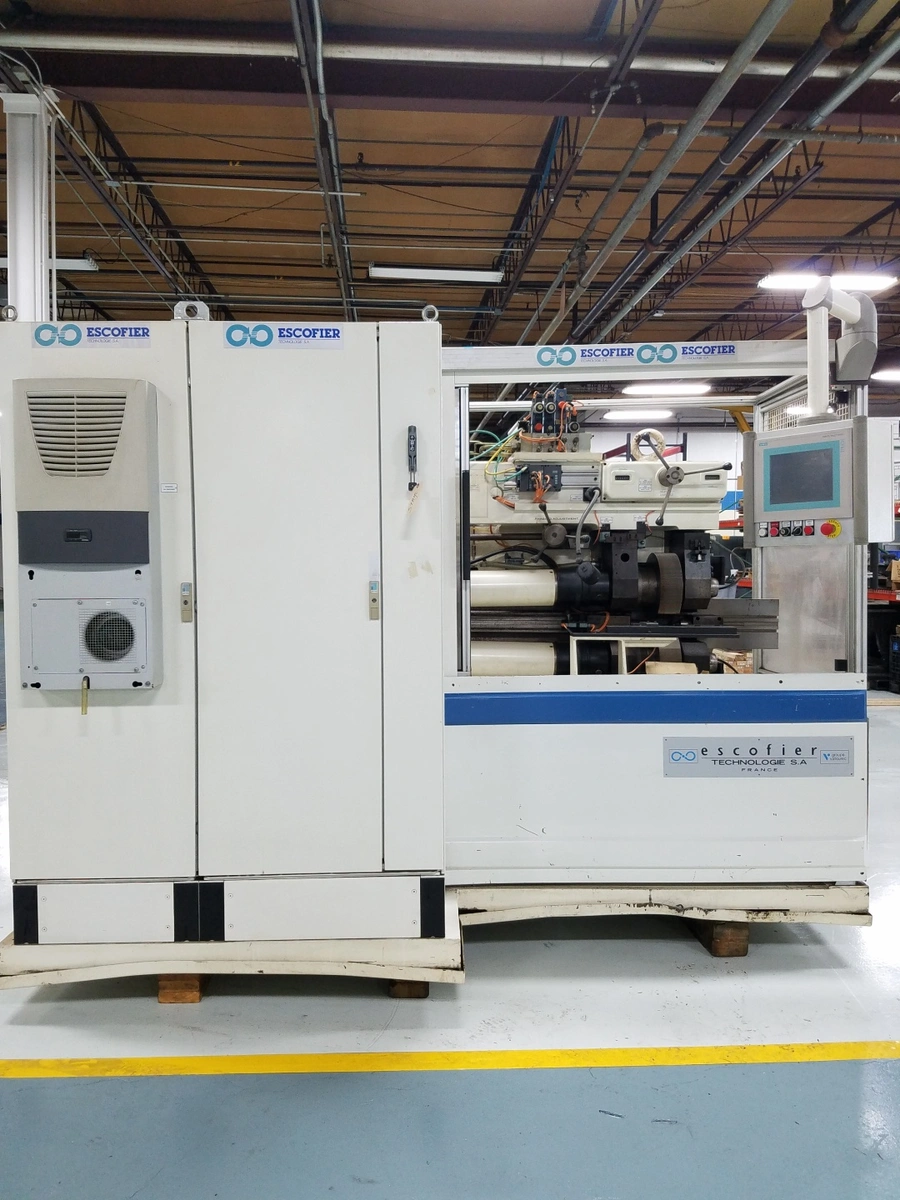

Escofier Incremex 300E Spline Roller
Mfg new in 1981 but re-manufactured in 2011 by original OEM

For the production splines and gears on shafts.

Machine Specifications are as Follows:
* Maximum Parts Diameter...............................................45mm
* Maximum Forming Dies Diameter.......................................300mm
* Minimum Forming Dies Diameter.......................................260mm
* Maximum Forming Dies Width..........................................100mm
* Maximum Shafts Width................................................150mm
* Maximum Center Lines Of Forming Dies................................340mm
* Minimum Center Lines Of Forming Dies..............................297.5mm
* Diametral Pitch Range-SAE-Pitch......................................6/32
* Module Metric........................................................1.58
* Drive Power..........................................................28kw
* Dimensions (LxWxH)...............................3275mm x 2090mm x 2270mm
* Weight(approx).....................................................9500kg

Machine equipped with the following:
*Siemens Simatic Multi Panel  Touch pendant control
*New Electrics
*Hydraulics
*One Set of Roll Dies on machine
*Rebuilt and Remanufactured by original OEM in 2011
*Full Guarding

Note: Machine remanufactured by Original OEM in 2011.
For a cost of approximately $250,000.
To be supplied to GM, but deal never materialized.
Machine shipped to our warehouse in 2013-14

Machine video available upon request!
Machine is in Excellent Mechanical condition
