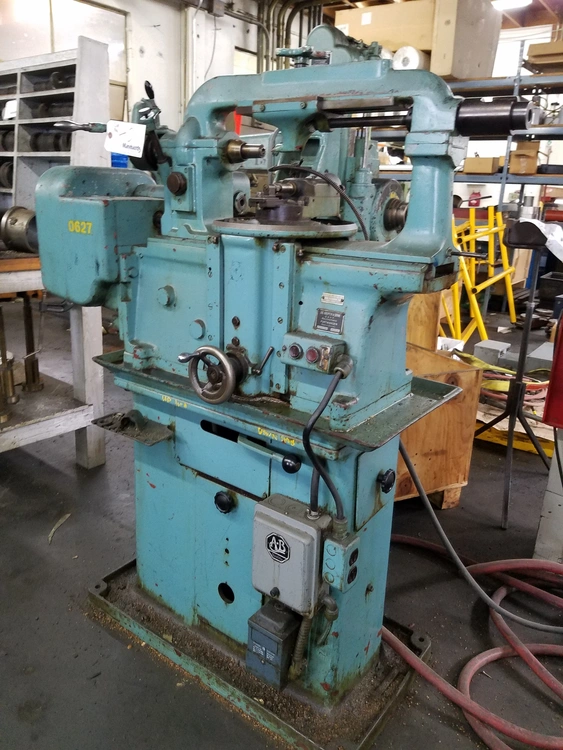

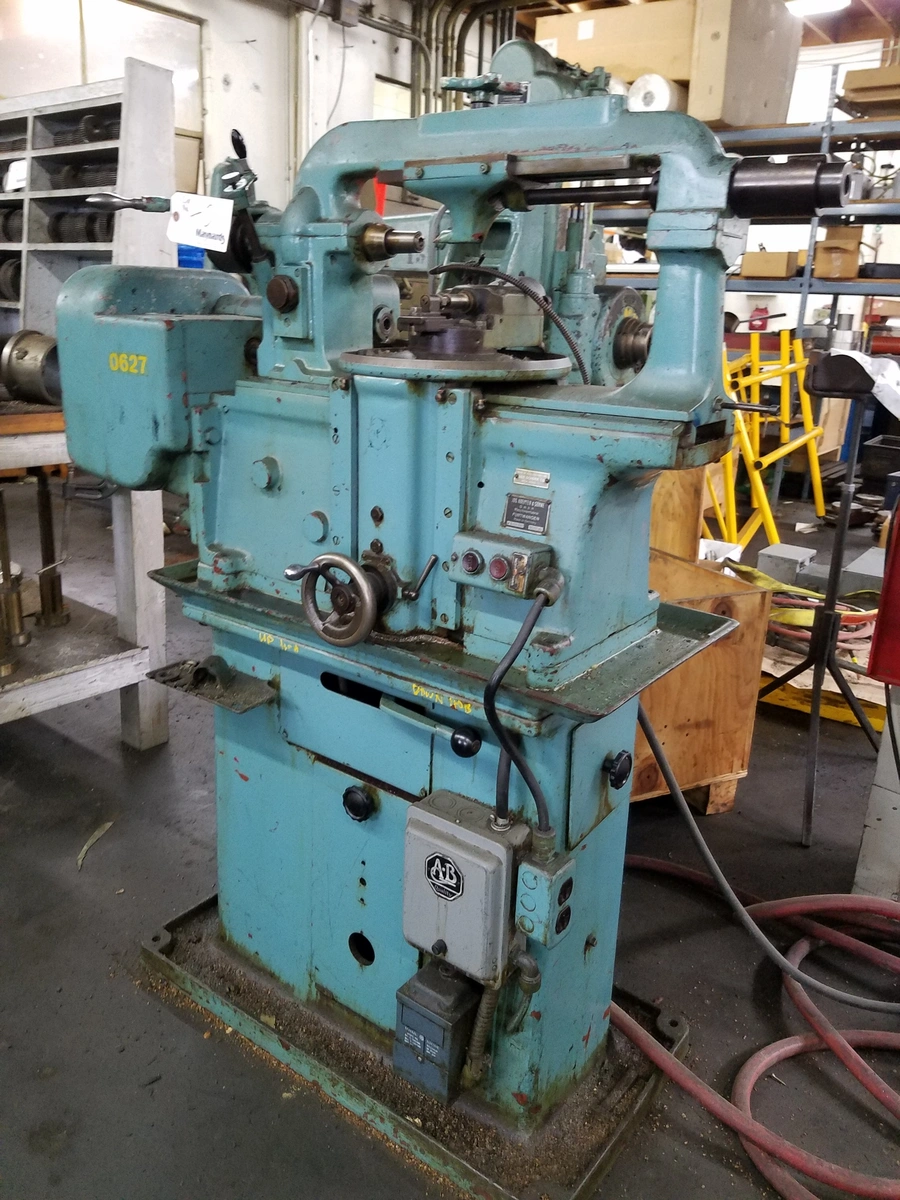

Koepfer Model WR8484 Horizontal gear hobber , 120 mm diameter, 250 mm hobbing length , excellent condition

Koepfer Horizontal Universal Spur Gears & Pinions, Spiral Gears, Gear Hobber
model # WR 8484, s/n 301252.

This machine is a small rigid horizontal gear hobber which would be perfect
for any small gear shop. The machine has many built in features and could
surely take the place of any barber colman 6-10 hobber.

Machine was designed to manufacture Spur gears & Pinions, Spiral Gears,
Worms & Worm wheels.

Machine General Specifications are as follows:

 Workrange of machine

max cutting diam.
with 35 mm Hob....................................................100mm / 4"
with 15 mm Hob ...............................................120mm / 4-3/4"

min cutting diam.................................................5mm / 3/16"
max cutting diam..............................................120mm / 4-3/4"

max Modul.......................................................2 / 12.7 DP
min Modul...................................................... 0.3 / 82 DP

normal Hob diam............................................35mm x 14mm long

cutter RPM........................................................100 - 900

cutter feed.....................................................0.08 - 0.72

Machine requires 1 HP with 1400 RPM E-motor
Machine weight.....................................................1600 Lbs
Machine dimensions.................................................54" x 30"

Machine is equipped with the following:
large assortment of change gears
Hob arbor
manual hob shift
tailstock center,  with manual locking
Automatic feeds
Differential
Manual Collet clamping for quick change
Large assortment of change gears
Books, manuals and schematics are available as well

Please contact us to view this machine under power as it seems to be in
excellent condition.
Let us know if you require any further information before setting up an under
power inspection.

Inspect now under power in our Statesville, NC plant.
