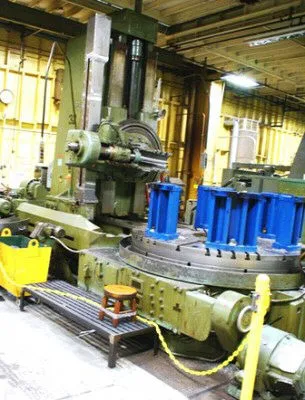

GOULD & EBERHARDT 96H

MACHINE SPECIFICATIONS:

Diametral Pitch Rating, maximum.....................................1.5 DP
Spur Gear Diameter Maximum Rating w/Outboard Support in Place...........96"
Spur Gear Diameter Maximum Rating w/Outboard Support Removed...........125"
Face Capacity, Spur Gears...............................................42"
Table Load Capacity, Maximum....................................75,000 lbs
Center Distance Work & Hob Arbor, Max...................................76"
Center Distance Work & Hob Arbor, Min....................................8"
Work Table Diameter.....................................................78"
Hole Diameter in Table..................................................26"
Hob Diameter, Range............................................1.875" to 7"
Index Worm Gear, Diameter...............................................76"
Worm Shaft Speed, Maximum..........................................400 RPM
(14) Hob Speeds, Range........................................6 to 100 RPM
Cutter Feeds, Range.......................................... .45 to 8 IPM
Feeds, Range............................................ .003 to .020 IPR
Floor Space Required, L x W........................................26' x 9'
Overall Height..........................................................15'
Weight, Approximately...........................................85,000 lbs.

MACHINE IS EQUIPPED WITH THE FOLLOWING
*Large Assortment of Change Gears
*Work Riser - (1) Hob Arbor
*Miscellaneous Tooling & Guarding
