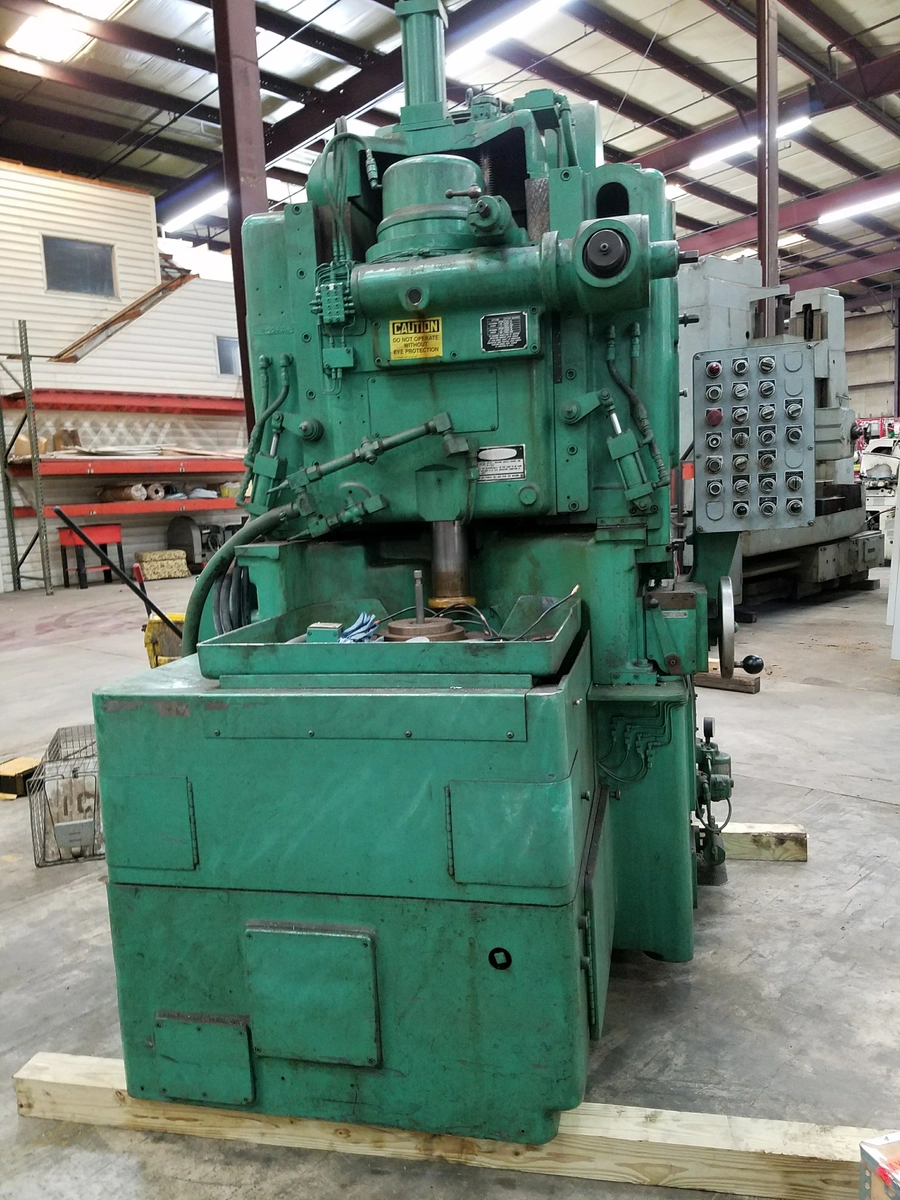

Fellows Model 18-5 Gear Shaper. 18" max Diam. 6" stroke, 5" Face, 7.5" Column Positioning, auto cycle, cutter at top, gears and tooling.
This Fellows Model 18-5 machine is a very Unique & Rigid machine.
It has the vertical cutter slide feature of 7.5" of travel which allows you
to bring your stroking spindle up and down and into parts. Tricky internal
hubs are easily cut with this style machine. No need to spend big $$ Dollars
on later model CNC Shapers if this machine can do your parts!!
Machine Specifications as follows:
Maximum Diameter External................................................18"
Maximum Diameter Internal................................................18"
Maximum Stroke length.....................................................6"
Maximum Face Width........................................................5"
Maximum Column Vertical Stroke Positioning..............................7.5"
Maximum Pitch Spur Gear................................................3 DP
Maximum Pitch Helical Gear.........................4 DP (with proper guides)
Max Helical angle depends on cutter and Guide....................45 degrees
Spindle Diameter..........................................................4"
Stroking speed range.............................................30-440 SPM
Table Diameter...........................................................13"
Hole in Table..........................................................5.87"
Centerline of spindle to Centerline of Table........................0" - 14"
Cutter Slide height above table Min/ Max.........................10" / 17.5"
Max OD of part fixture...................................................24"
Power requirements...............................................460v /3/60
Machine Dimensions L x H x W.............................12' x 8' x 6' wide
Machine weight...................................................18,000 Lbs
Machine is equipped with the following:
* Column Stroke positioning of 6"
* Cutter at Top
* Auto cycles
* Ball screw on Infeed
* Driven by 7 A/C Electric motors
* Cutter Adaptor
* Misc Change Gears
* Misc tooling
* Electrical Panel
* Hydraulic Unit
* operators and parts Manuals
** This machine is a very rigid production style machine. The upper assembly
providing the stroke positioning can be moved up and down almost 7.5" to
get in and out of hard to reach parts, along with its 6" stroke Length
capacity it's a must for any production house or job shop!!
Machine can be inspected under power with proper notice in our NC Warehouse.
