Fellows Model 36-6, 40" max diameter, 6" face capacity, 2" Riser, 4" spindle Diameter. 13" maximum clearance thick table. s/n 29169

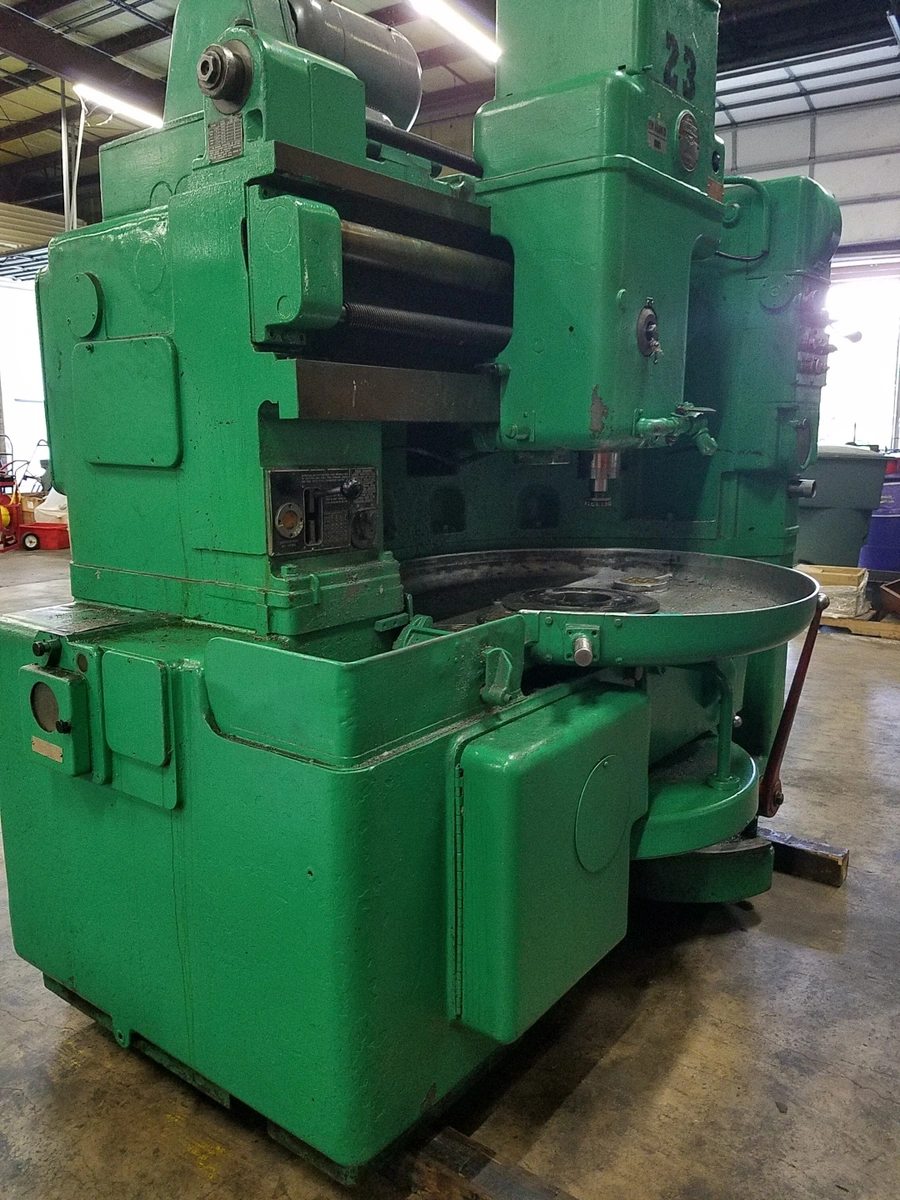

Fellows Gear shaping machine Parts Machine!!!!
Model 36-6
s/n 29169
This machine was manufacturing gears in a customers plant and customer bought
another higher rise machine. Machine was taken in trade and now being offered
out for sale after machine has been gone through and checked for reliability
of service. contact us to learn more about this machine.
MACHINE SPECIFICATIONS:
* Maximum Pitch Diameter External.........................................40"
* Maximum Pitch Diameter Internal.........................................36"
* Maximum Workpiece & Fixture Diameter....................................42"
* Maximum Face Width.......................................................6"
* Stroke Length............................................................6"
* Maximum Helix Angle.................................................45 deg
* Maximum Diametral Pitch
-For Spur Gears.........................................................3 DP
-For Helical..........................................................4/5 DP
* Work Spindle Bore Diameter...........................................5.875"
* Twelve (12) Stroking Speeds, w/ranges...........................18-300 spm
* Machine Dimensions.......................................92" x 60" x 100"H
* Machine Weight, Approx..........................................17,000 Lbs
Machine Is Equipped With:
2" Riser Assembly
4" spindle diameter
Misc. Change Gears
1 Cutter Adapter
operators Manual
Machine(s) can be inspected under power with proper notice. additional
adaptors can be purchased if required. send us your part prints to confirm
what you require on this machine. Please note above that this machine will
require 3 weeks to complete from receipt of order . Standard silver white or
machine gray colors are available at No additional cost for this machine.
