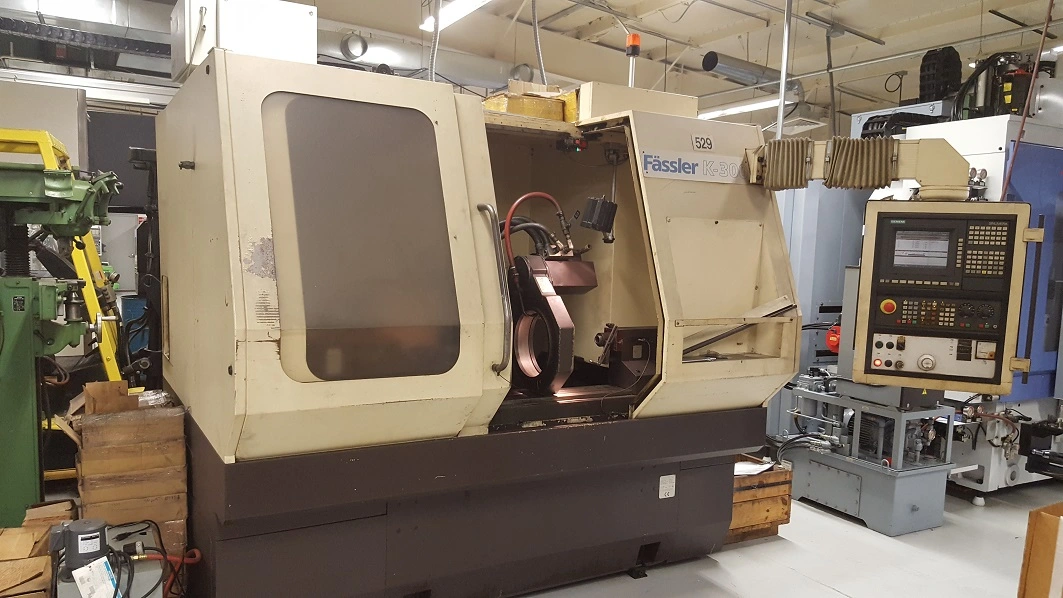

fassler model K-300 cnc gear honing machine , internal / externel gear honer, new 1997 s/n 719 in plant

Fassler CNC Gear Honning Machines
Model K-300
S/N 719
New 1997

This Fassler cnc Gear hone has been designed for the finishing of automotive
and high performance gearing for many industries. Honing can be done after
heat treatment to arrive at the quality finish you require using properly
designed honing materials.

*Machine specifications are as follows:

Workpiece Diameter Max/Min.........................................180/5 mm
Workpiece Length Max................................................1000 mm
Gear teeth Width  Max................................................120 mm
Module Range.......................................................0.3-6 mm
Pressure Angle (alpha) Max /Min.......................................40/14
degree Helix Angle (beta) Max. (left or Right)...................30 degree
*Work piece weights:
-Externally toothed Between centers...................................20 kg
-Externally toothed cantilevered......................................20 kg
-Internally toothed incl. clamping chuck..............................50 kg

* Check with Fassler AG for flank modifications:
Tip relief, Profile Crowning, Longitudinal Crowning and Conical Honing Stone
Measurements
External Diameter Max................................................300 mm
Honing Stone Widths.......................................24/30/40/50/60 mm
Internal Diameter Min................................................220 mm
Machine dimensions Length x width x Height............2410 x 2300 x 2465 mm
floor space required.........................................4600 x 4600 mm
weight..............................................................4600 kg
* Machine equipped with Siemens Sinumeric 840C controller
Swiveling pendant control
Control cabinet
Hydraulic unit oil mist collection

* This machine can be inspected in customers facility in very good
condition.
Call for full specifications and copy of manuals for review and machine
functionality study for your specific requirements. These general specs
should only be used as a guide for further consideration.
