Barber Colman model 16-56 Horizontal Gear Hobber, 16" max diam, 56" cut length, Standard machine, hob arbor, tailstock dual thread worm, change gears, good running condition. Inspect in NC. s/n 2955

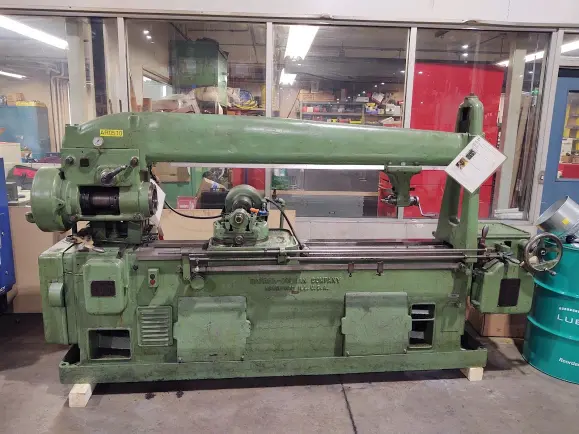

Barber Colman Horizontal Hobbing machine
Model 16-56, S/N 2955
This machine was designed for the cutting of large shafts in the Horizontal
position. Very similar in design and mfg to the smaller 16-16 & 16-36 models.
Usually all tooling should be interchangeable.
Machine Specifications are as follows
* Max work diameter....................................16"
* Max DP in steel......................................6 DP
* Max hob length.......................................5"
* Max hob diameter.....................................5"
* Max travel of hob carriage...........................56"
* Max swivel angle setting.............................45° Left or Right
* Max distance work spindle face to tailstock center.... "
* Max hob speed.........................................75 - 425 rpm
* Max hob shift travel..................................3.5"
* Index worm gear diameter..............................12.7"
* Number of teeth.......................................5 - 300
WORK SPINDLE:
* Overall diameter......................................7.125"
* Bore diameter.........................................3.1875"
* Bolt circle diameter..................................6.25"
* Bolt circle tapped holes..............................½" 13 UNC
MOTORS:
* Main drive motor......................................7.5 HP
* Hydraulic pump........................................1 HP
* Lubrication motor.....................................1/20 HP
* Rapid traverse motor..................................2 HP
* Coolant pump motor....................................½ HP
* Overall size..........................................89" x 76" x 84"
* Net weight............................................7,600 lbs
STANDARD EQUIPMENT:
* Rapid traverse
* Double Thread Index Worm
* Manual hob shift
* Hob Arbor 1-1/4"
* Misc index gears change gears
* Operator manual
* Electrics 220/440 volts, 3 phase, 60 cycles.
Machine can be inspected under power in excellent operating condition.
The machine has just been removed from running service in customers shop and is
still located off site, to be shipped to our Statesville warehouse. Video available
upon request!
