Barber Colman Model 6-10 C-frame style machine 6^" x 10" part length, v-ways , bayonet center, , triple thread s/n 4547
GEAR HOBBERSBarber Colman model 6-10 horizontal gear hobber, 6" diameter x 10" part length, c-frame style, v-ways, bayonnette center, 3-jaw precision chuck 220/440 power Nice condition machine.

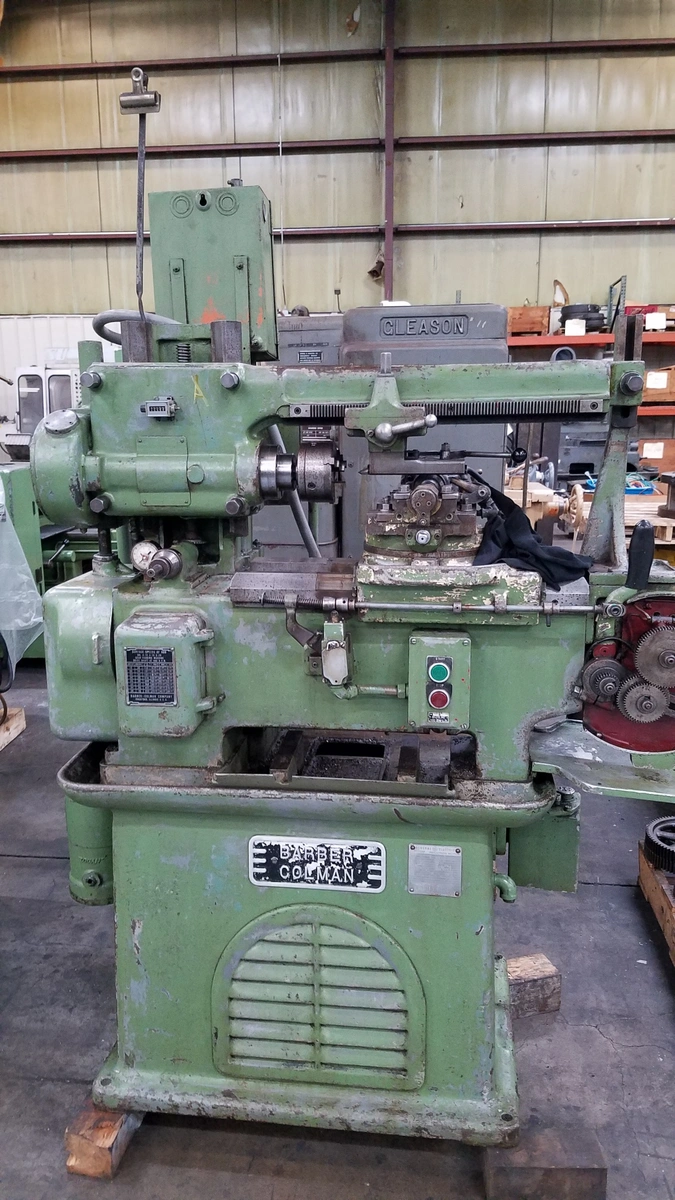

Barber - Colman Horizontal Gear Hobbing Machine
Model 6-10 s/n 4547
This Barber-colman machine possesses almost all the finer options and later
style design the OEM had to offer at the time of its manufacturing.
The C-Frame style machine and V-way construction should give you a quality
spline or gear thru-out its entire service life.
Machine Specifications are as follows:
MAXIMUM WORK DIAMETER:....................................................6"
MAXIMUM TRAVEL OF HOB CARRIAGE:......................................10-1/2"
MAXIMUM DIST. SPINDLE FACE TO TAILSTOCK CENTER:......................15-3/4"
MAXIMUM DIAMETRAL PITCH, 1 CUT:.........................16 DP - 2" DIAMETER
MAXIMUM DIAMETRAL PITCH,1 CUT:..........................48 DP - 6" DIAMETER
MAXIMUM HOB DIAMETER:................................................2-1/16"
HOB SPEED:....................................................133 - 533 RPM
WORK SPINDLE BORE:...................................................1-1/32"
WEIGHT OF MACHINE:................................................3,500 LBS.
MACHINE IS EQUIPPED WITH:
Triple Thread Standard Worm
Bayonet Center
Manual hob shift
3-Jaw precision chuck
Standard hob headÂ
Change Gears
1 Hob Arbor
220/440 powerÂ
Machine can be inspected under power in good mechanical condition at our
Statesville, NC. shop.
Contact us for any further information you require.
