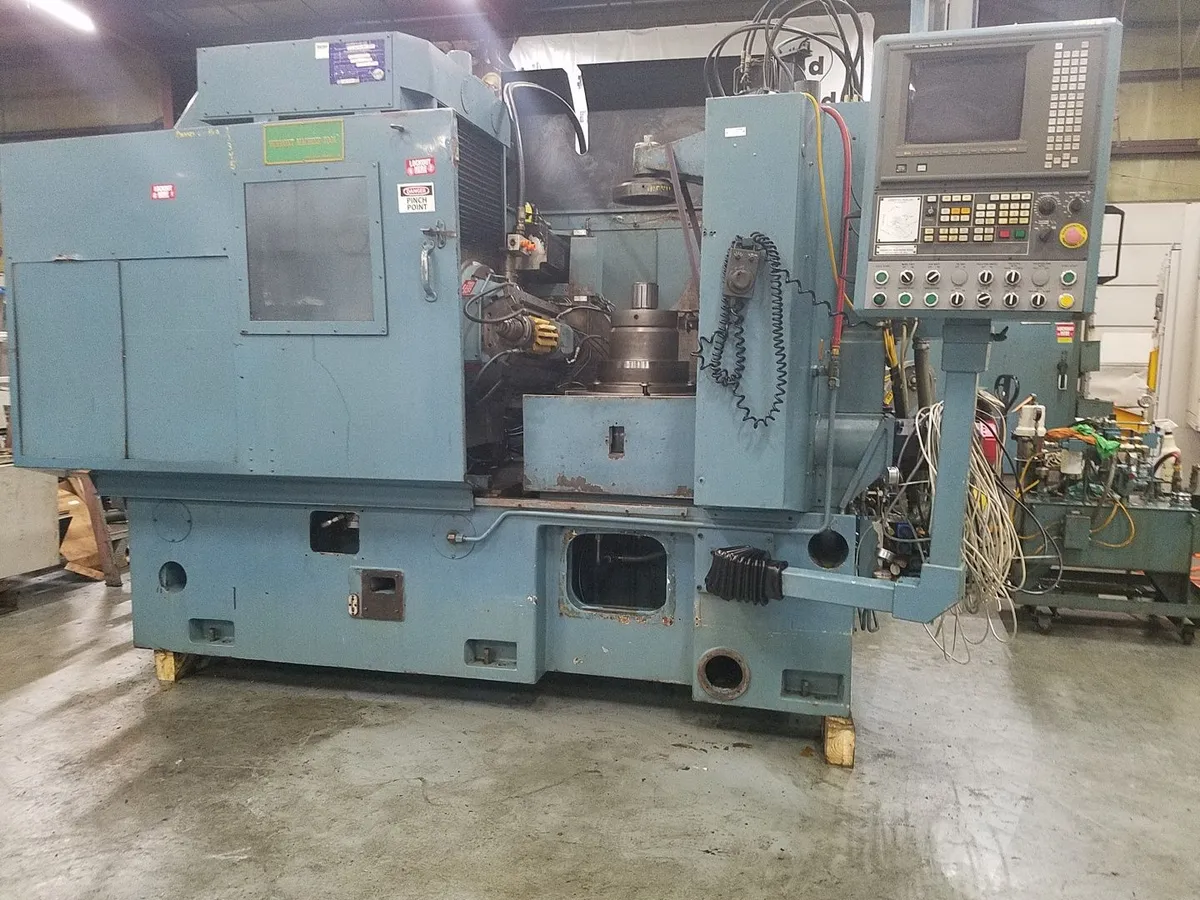

Liebherr Model L-902 cnc vertical hobbing machine, 36" diameter capacity 2.5 DP , Fanuc 16M control

Liebherr CNC Retrofitted Gear Hobbing machines
Model# L-902
Number of axis- 6
re-controlled with GE Fanuc 16 M

These Liebherr Model L-902 cnc machines were retrofitted originally by
Vermont machine tool. the machines were completely re-manufactured to
customer specifications. New ball screws were installed,  and retrofitted
for 6 axis execution back in 1997.

Machine specifications are as follows
Max Gear diameter....................................................35.4"
Max pitch.......................................................12 Module
Max diameter Hob......................................................7.5"
Max Face width.........................................................10"
Machine floor space...................................12' wide x 10' deep
Machine weight.................................................24,000 lbs

Machines are equipped with the following:
GE Fanuc 16M cnc controls, motors and drives
Pendant control and operators panel
Vermont machine tool software package
tailstock support
hydraulic Table clamping
workholding fixture clamping as photographed
chip conveyor and coolant tank
books and manuals

Machine was purchased from large OEM due to plant closure,
Inspected machine under power in our Statesville NC Plant

Please confirm if you would like to inspect in our Statesville, NC facility
or visit our web site at www.PiselliEnt.com for more Gear machine inventory
for sale. Contact rich piselli at Rich@Pisellient.com to receive formal
quotation
