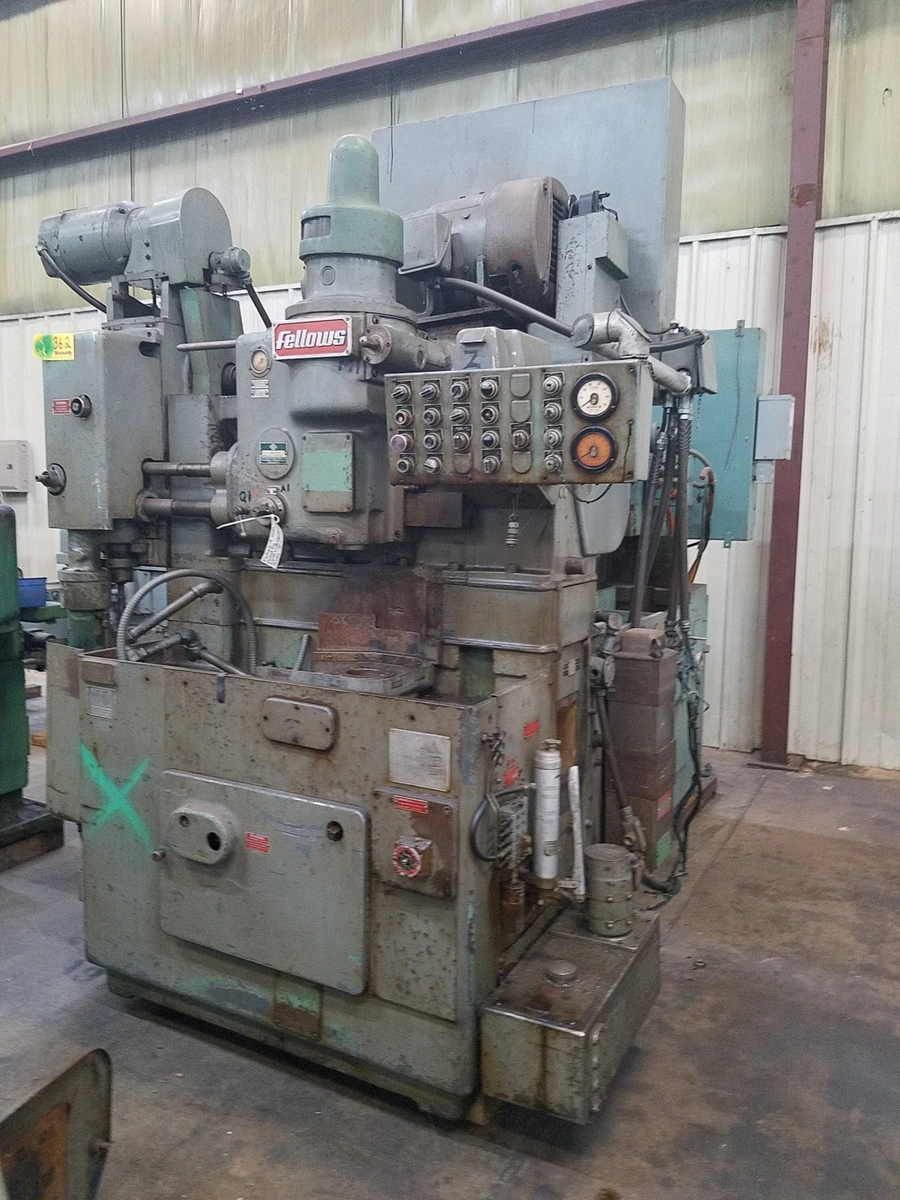

Fellows, Model: 4A, Versa Shaper Gear Shaper, 10" Dia., 4" Stroke. 8" riser assembly, automatic cycles. s/n 34182.
SPECIFICATION:
*Max Pitch Diameter External/Internal...................................10"
*Max DP - Spur Gears .................................................4 DP
*Max DP - Helical Gears...............................................5 DP
*Max Face Width, External................................................4"
*Max Face Width, Internal..............................................3-4"
*Max Helix Angle w/Std. Guides..................................45 degrees
*Max Workpiece/Fixture Clearance Height.................................17"
MACHINE IS EQUIPPED WITH:
1 Cutter Adapter
Misc. Change Gears
