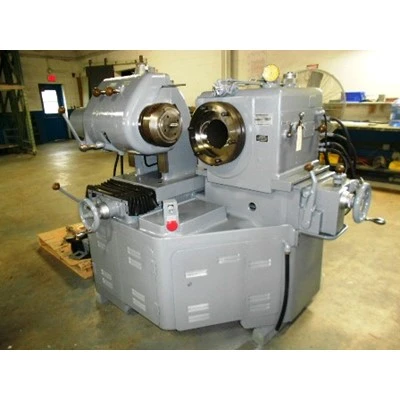

Gleason Model 23 Segmental Gear Tester. Max diameter 20", Large Spindle Bore, High Accuracy, Excellent Condition.
Gleason segment tester
model 23
s/n 27427
condition : excellent
inspect machine under power in our statesville NC plant
MACHINE SPECIFICATIONS:
* Maximum diameter gear..................................................20"
* Max offset of gear spindle above or below center of pinion spindle...3.50"
* Max distance from center of gear spindle to nose of pinion spindle.....12"
* Min distance from center of gear spindle to nose of pinion spindle......6"
* Max distance from center of pinion spindle to nose of gear spindle...7.75"
* Min distance from center of pinion spindle to nose of gear spindle..4.125"
* Bore of pinion spindle (large end straight bore) ....................6.25"
* Taper of work spindle bore ..... .........................39/64" per foot
* Bore of gear/brake spindle (large end)..............................2.295"
* Taper of gear/brake spindle.................................1/2" per foot
* Floor space required.............................................60" x 73"
* Machine approx. net weight.......................................5300 lbs.
MACHINE EQUIPPED WITH:
* hydraulic work chucking cylinders on pinion and gear spindles,
(less draw-in bar & nuts)
* pinion (work) spindle bore 6.25" straight bore
* work spindle bore 19/64
* adjustable drive gear spindle head w/crank handle & graduated dial
* guards, covers, handwheels
* electrical controls
* operator's manual, wiring & hydraulic diagrams
Machine can be inspected under power in our Statesville NC plant .
let me know if you need further info as machine is equipped as
Photographed . visit www.pisellient.com for more photos or to set up
and inspection. contact richard piselli at Rich@pisellient.com
