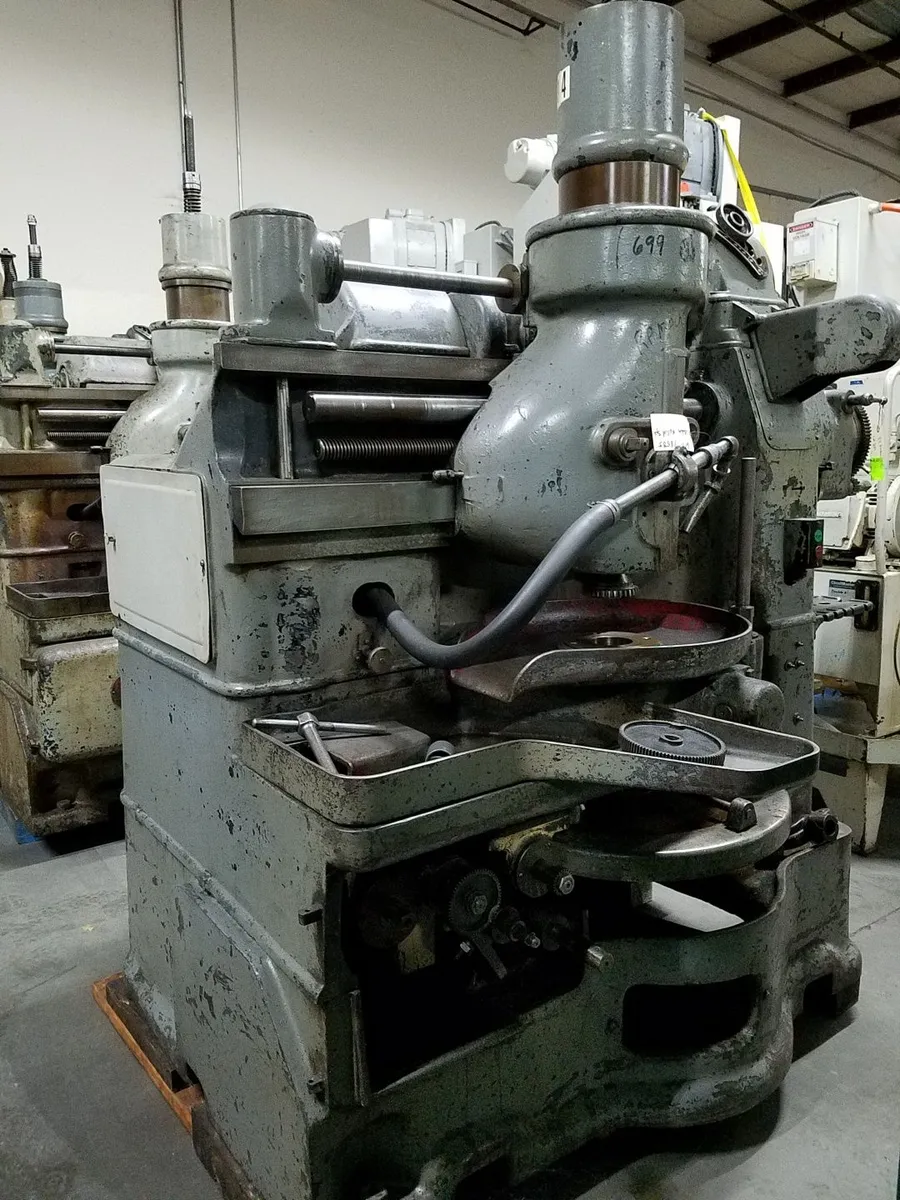

Used FELLOWS 61A, 0" RISER | GEAR SHAPERS

Machine Specifications:
* Max pitch diameter (External)..........................................18"
* Max pitch diameter (Internal)..........................................18"
* Max face width, external & internal.....................................5"
* Max diametrical pitch spur...........................................4 DP
* Max diametrical pitch helical........................................6 DP
* Bore through work spindle...........................................2.875"
* Cutter spindle diameter.............................................2.875"
* Max distance table surface to spindle.................................7.5"
* Max helix angle with proper guide..................................30 deg
* Stroking speeds................................................50-300 SPM
* Dimensions (L x H x W).....................................63" x 77" x 48"
* Machine net weight, approx......................................6,800 lbs
* 220 volt

Machine Equipped With:
* 5" Stroke
* Change Gears
* 0" Riser
* solid Spindle
* Standard Straight Spur Guide

Machine has been gone through by our machine techs and can be inspected in
Excellent condition under power with proper notice. we have lots of misc
tooling to sell along with this machine for your jobs. Contact us today to
view this or any other machines we have in stock or visit WWW.PiselliEnt.com
