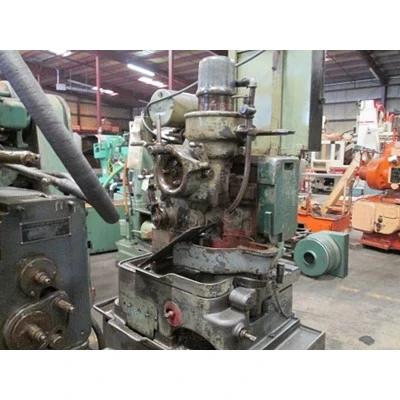

Fellows model 712 gear shaping machine , inspect under power with proper notice

MACHINE SPECIFICATIONS:
* Max. Pitch Diameter Spur External.....................7"
* Max. Pitch Diameter Helical External..................7"
* Diametral Pitch, Spur Gears...........................5/7DP
* Diametral Pitch, Helical Gears........................6DP
* Face Width Max........................................1.5"
* Helix Angle Degree, Max ..............................45 Degrees
* Cutter Strokes Per Minute, Range.....................200-450 SPM
* Machine Dimensions...................................3'9" x 3'5" x 6'6" H
* Machine Weight.......................................3,300 lbs.

MACHINE IS EQUIPPED WITH THE FOLLOWING:
* Hollow Spindle
* Assortment of Change Gears
* Operators Manuals

Machine can be inspected under power with proper notice
we can set up machine for your requirements . contact us
today at www.pisellient.com for more info & photos
