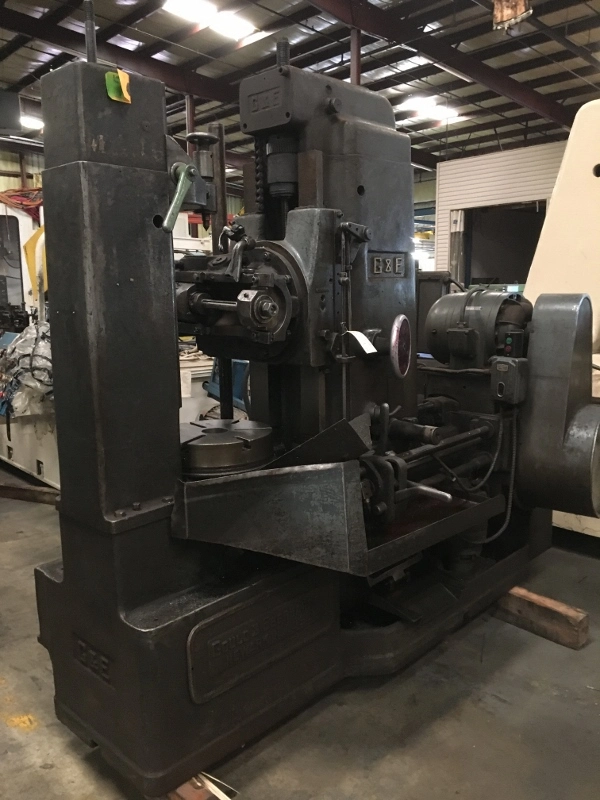

Used GOULD & EBERHARDT 24H PARTS MACHINE | GEAR MACHINES (PARTS MACHINES) ALL TYPES

MACHINE SPECIFICATIONS:
* Max. DP in Steel.....................................................3 DP
* Face Capacity..........................................................15"
* Face Capacity (Helical)................................................12"
* Max. Diam. Spur Gear W/Support.........................................18"
* Max. Diam. Spur Gear W/out Support.....................................24"
* Min. Centers Work and Hob Arbors........................................0"
* Max. Diam. Hob..........................................................6"
* Diameter Work Table....................................................18"
* Diameter Index Worm Gear...............................................18"
* Hob Speeds.....................................................40-240 RPM
* Feed Range...................................................... .03-.200"
* Main Motor.......................................................7 1/2 HP.
* Floor Space Required x Height.............................67" X 142" X 88"
* Approximate Weight.............................................11,000 LBS

MACHINE IS EQUIPPED WITH THE FOLLOWING:
* Infeed
* Differential
* Tailstock
* Misc Change gears
