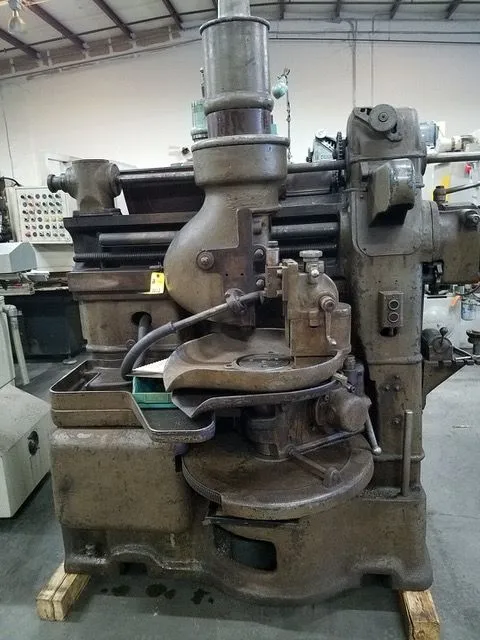

Fellows model 61a vertical gear shaping machine, 18" diameter capacity, 5" stroke, hollow spindle, 0" riser W/ Special pinion support tailstock & Pan attachment. Inspect under power in our statesville facility in very good operating condition
Fellows model 61A precision Gear shaper
s/n 24378 W/ pinion support tailstock & Pan
Machine Specifications:
* Max pitch diameter (External)..........................................18"
* Max pitch diameter (Internal)..........................................18"
* Max face width, external & internal.....................................5"
* Max diametrical pitch spur...........................................4 DP
* Max diametrical pitch helical........................................6 DP
* Bore through work spindle...........................................2.875"
* Cutter spindle diameter.............................................2.875"
* Max distance table surface to spindle.................................7.5"
* Max helix angle with proper guide..................................30 deg
* Stroking speeds................................................50-300 SPM
* Dimensions (L x H x W).....................................63" x 77" x 48"
* Machine net weight, approx......................................6,800 lbs
* 220 volt
Machine Equipped With:
* 5" Stroke
* Change Gears
* 0" Riser
* Hollow Spindle
* Standard Straight Spur Guide
* Special Pinion support tailstock and Pan
Machine can be inspected under power with proper notice in our
statesville NC Plant. contact us to set up an inspection today
Pinion support tailstock
5" stroke
0" riser assembly
Hollow spindle
Misc change gears
1 cutter adaptor
