BARBER COLMAN 6-10

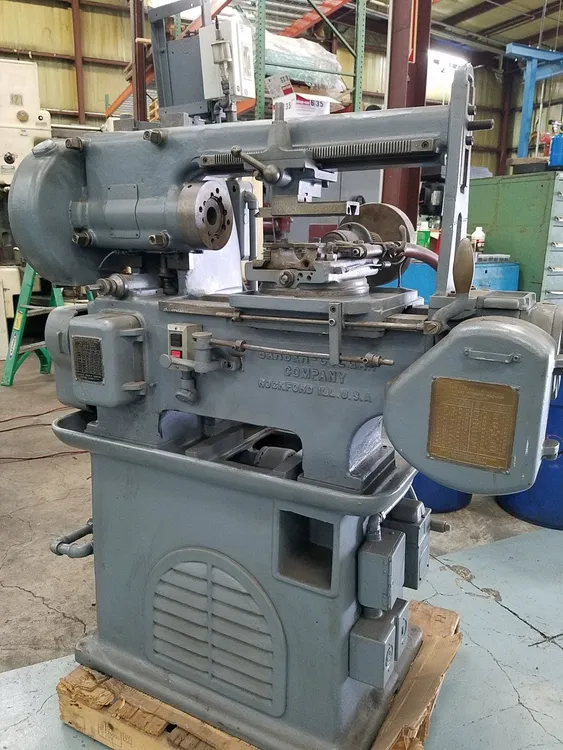

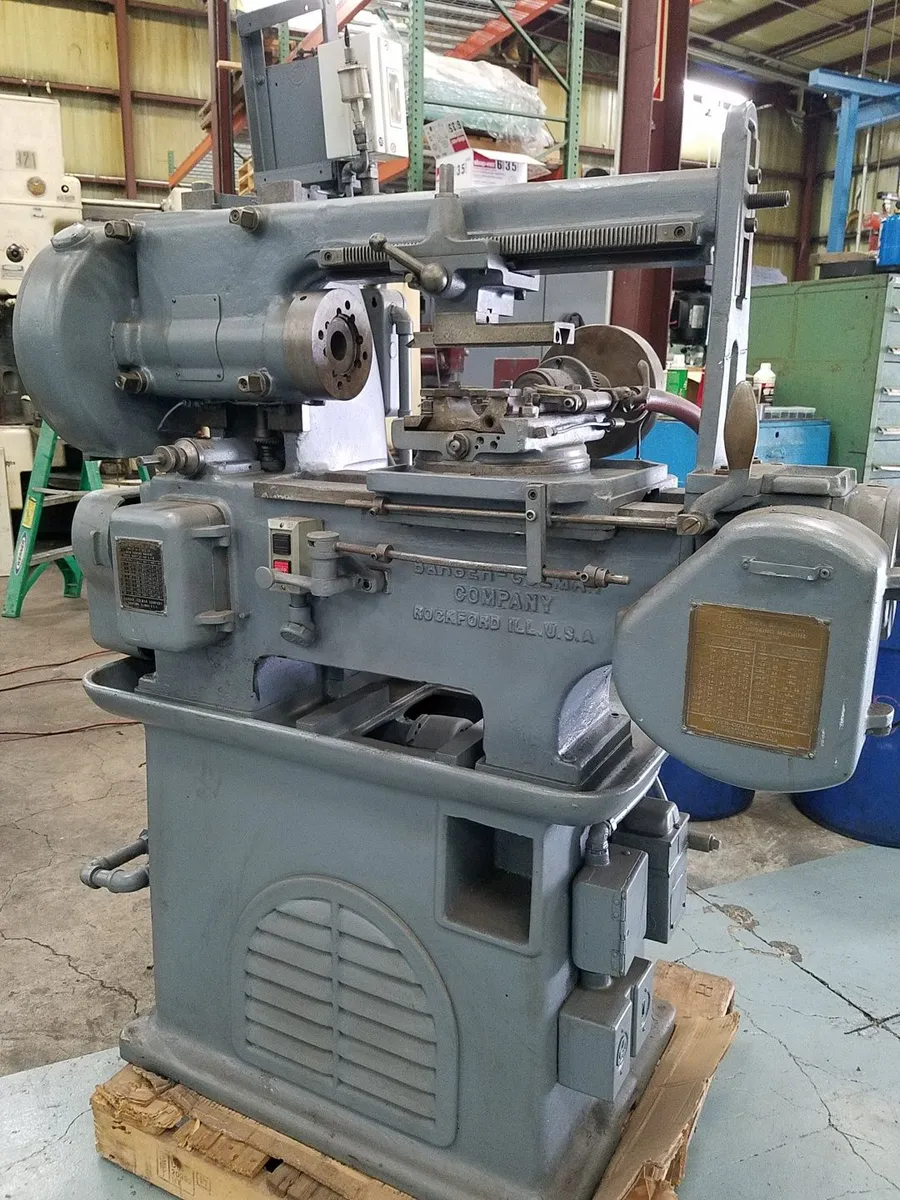

Barber Colman Horizontal gear hobber
Model 6-10 s/n 3745
w/ Single thread Precision Worm

Machine Specifications

MAXIMUM WORK DIAMETER: 6"
MAXIMUM TRAVEL OF HOB CARRIAGE: 10-1/2"
MAXIMUM DIST. SPINDLE FACE TO TAILSTOCK CENTER: 15-3/4"
MAXIMUM DIAMETRAL PITCH , 1 CUT: 16 DP - 2" DIAM
MAXIMUM DIAMETRAL PITCH ,1 CUT: 48 DP - 6" DIAM
MAXIMUM HOB DIAMETER: 2-1/16"
HOB SPEED: 133 - 533 RPM
WORK SPINDLE BORE: 1-1/32"
WEIGHT OF MACHINE: 3,500 LBS.

MACHINE IS EQUIPPED WITH:
Precision Single Thread Worm
Bayonet Center
Flat ways
Change Gears Misc
1 Hob Arbor
Books and manuals

Machine can be inspected under power in good mechanical condition with proper
Notice in our Statesville NC plant! contact us to set up an inspection today or
visit our website at www.piselliEnt.com to view similar machines or all our gear
machine inventory
