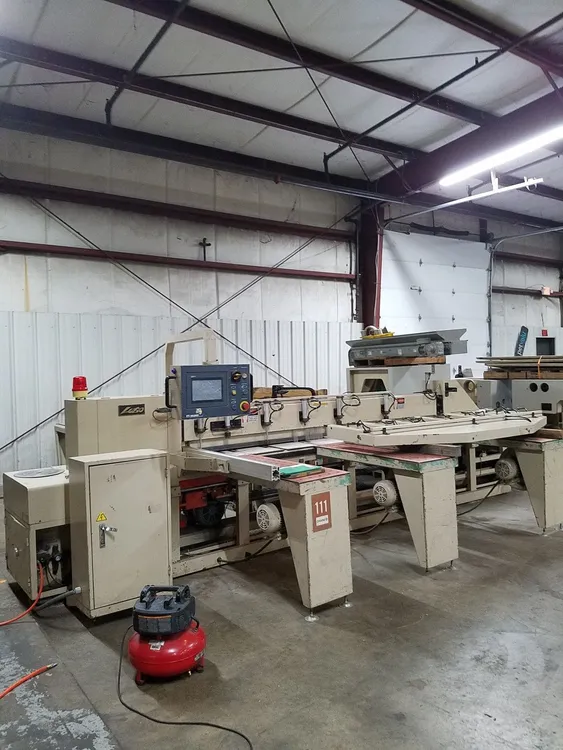

2000 LOBO TPS-10C

Machine specification are as follows:
Max cut length 129" /3300 mm
Max Depth of Cut 3.14"/80 mm

Main Saw Blade
Saw Blade Diameter 14" /355 mm
Arbor Diameter 1" /24.5 mm
Blade Speed 4800 RPM
Scoring Saw Blade
Blade Diameter 7" /176 mm
Arbor Diameter 1" /25.4 mm
Saw Blade Speed 6500 RPM
Saw Carriage
Feed forward Speeds (variable) 12-16-21-26 M/min
Retract Speed 24-32-42-52 M/min

other
Main Saw Blade Motor 13 HP
Carriage Drive Motor 3 HP
Auto Feed System IHP (AC Servo)
Auto Panel Feed Speed 13 M/min
Machine Weight 7500 lbs
Machine Dimensions (L x W x H) 211" x 220" x 60"

equipped with
CNC controls
Back Gauge with positioning (not installed)
Hydraulic clamping
Dust collection
Manual

Machine can be inspected under power in our facility with proper notice. We are looking
to sell this machine as it is not our standard type of machinery that we sell. Contact us
Today to set up an under power inspection or visit www.PiselliEnt.com for more information
and photos
