Gleason Model Tag 400 CNC Generating Style Gear Grinder 400mm Cap. New 1995
GEAR GRINDERS (CNC)Gleason Model TAG 400 CNC Generating style Gear grinder, 400 MM diameter capacity , 4 DP, CNC Dressing , w/ GE Fanuc 15-M controls , Oberlin OPF 4 filtration unit , inspect under power in customers shop , in Excellent
Mechanical condition. delivered 1996

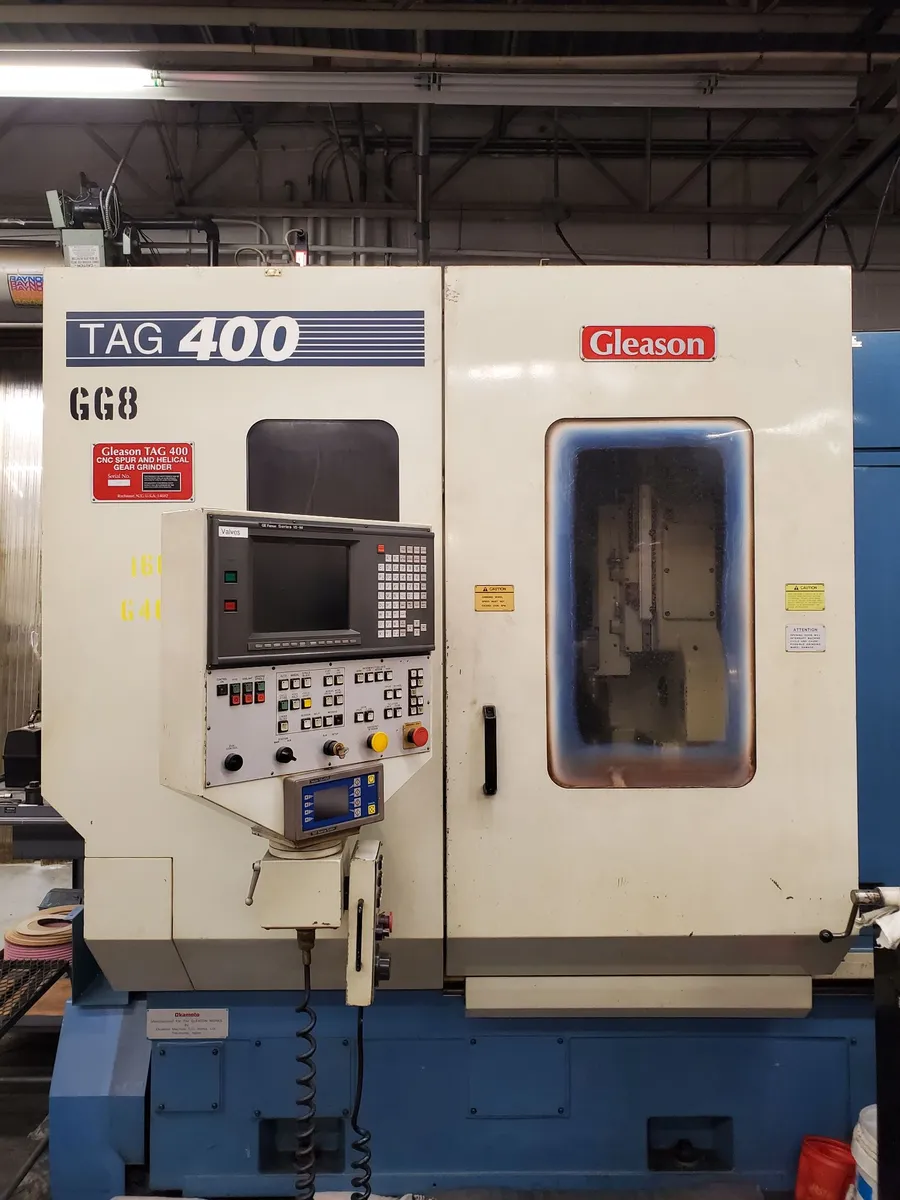

Gleason CNC Gear Grinding machine Generating style
Model TAG 400
s/n 1021
New 1995 delivered 1996
This Gleason model Tag 400 utilizes the Generating style grinding feature. the Machine dresses
the wheel automatically during cycles. this machine can be used for small or large run production
jobs and parts can be viewed with high quality charts to reference. contact us today to
inspect under power in plant!!
machine specifications are as follows:
Max Diamaeter Gear 15.7"
Max pitch 3.0 DP
- 15.75" Max Tip Diameter
- .400" Min Root Diameter
- 8.00" Max Face Width
- 50.0-3.0 Diametral Pitch Range
- 0.5-8.0 Modular Range
- 6-600 Number of Teeth
- 8"-31.5" Distance Between Centers
- +/- 45 Degrees Max
- 14.5-30 Degree Pressure Angle
- Lead Relieving
- Lead Crowning
- Special Relieving
- Special Crowning
- Conical Taper Gear
- Concave Crowning
- 150 Lb. Max Workpiece Weight
- 19,550 Lbs Weight of Machine
Machine is equipped with the following
GE-Fanuc 15 M control
Pendant controller
Full enclosure
CNC Dressing unit
Oberlin model OPF-4 filtration unit s/n 19
full tooling assortment
chiller and mist collection
books and manuals
Machine can be inspected with proper notice on customers floor Grinding excellent quality
Let us know when you can make an inspection as this machine is finishing off its final
runs of scheduled parts . contact us to find out when its available for removal.
contact rich Piselli at 704 609-0766 or email Rich@piselliEnt.com for more info
and full machine specs and detailed photos
