Hofler Model Helix 400 K CNC gear grinder New 2001, In Plant Under Power!!GEAR GRINDERS (CNC)
Hofler CNC Gear Grinding Machine, Model Helix 400K Max diameter 15.7" , 8.3" stroke length, 2.5-50.8 DP range, full filtration and chilling system, Excellent condition in plant under power . full compliment of flanges, tooling etc. new 2001

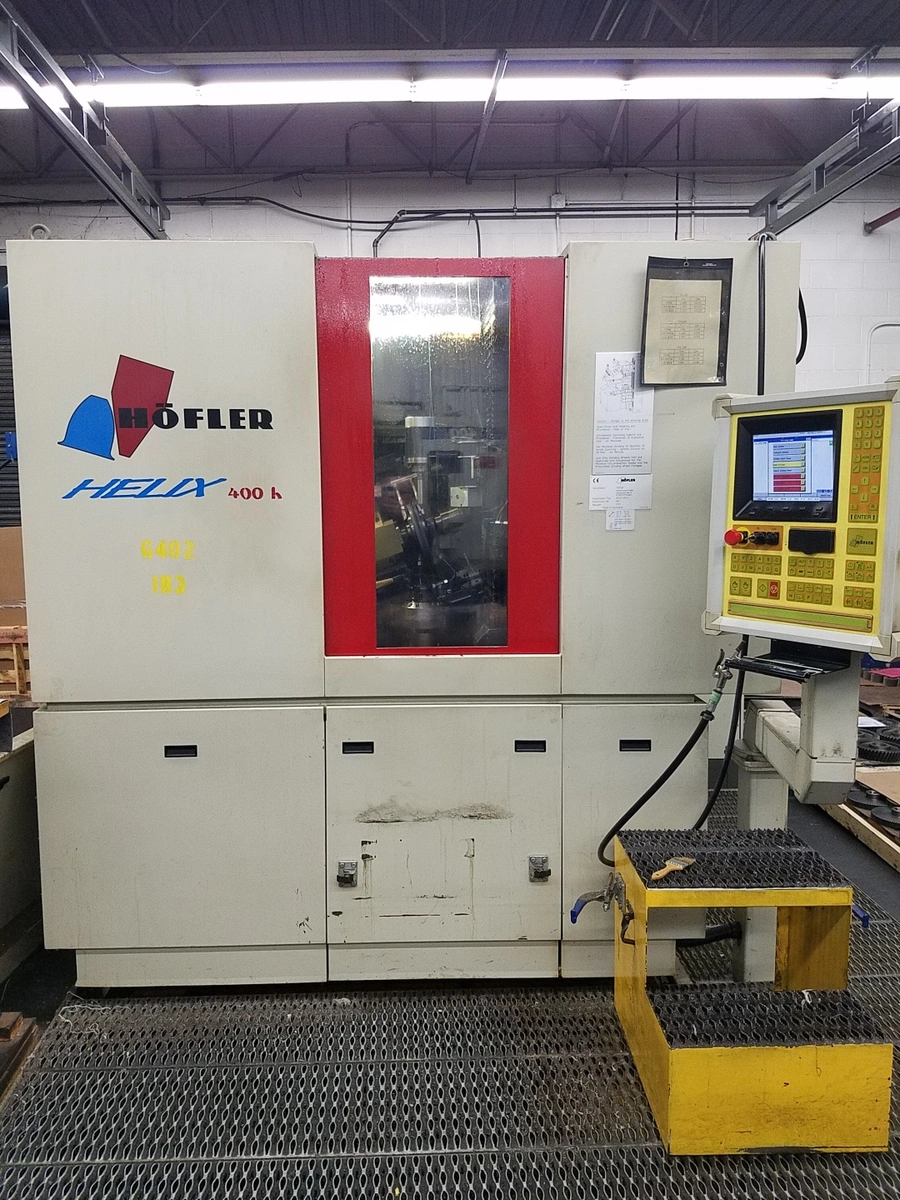

Hofler CNC Gear Grinding machine
Model Helix 400K
Machine can be inspected in customers plant in excellent mechanical
condition grinding gears of excellent quality . the machine is
specially designed to accept the small wheel head attachment for
grinding the smaller gears close to a journal or in those hard to
reach areas. Note: small head attachment is not with machine . customer
has designed tooling flanges and adaptors designed to accomplish same.
This Hofler Helix CNC Gear grinding machine can be inspected under power
in Excellent condition grinding gears in our customers facility.
The machine comes complete with filtration system, tooling , wheel
flanges , dressing discs, and all that is needed to run in your shop .
Machine catalog specs:
Max/Min Gear diameter 15.8"-0.4"
Center dist. above table (adj) 11.2"-23.6"
Axial Stroke length 8.3"
working area above table 9.3"-17.5"
Helix angle +/-45 deg
Grindable DP 50.8-2.5 DP
Profile Height/ Grinding wheel width 1.0" / 1.8"
Power of grinding spindle 15 kw
Grinding wheel diameter 15.8"- 7.9"
Grinding wheel diameter (small wheelhead) 11.8"-3.9"
Wheel flange diameter 8.3"/6.7"
-w/ small wheel head 3.2"
Grinding Spindle speed 0-4000 RPM
-w/ small wheel head 0-5400 RPM
Dressing Roll diameter 6.3"
Max table load 176 lbs
Table diameter 7.1"
table bore diam x depth 2.95" x 1.6" deep
Floor space required 10' x 15' x 8' high
Machine special accessories :
BDO CNC Controller
full filtration and coolant
set of leveling wedges
full charts and quality check
CONTACT US TODAY FOR MORE INFORMATION AND/ OR DETAILED SPECS OR MAKE
ARRANGEMENTS TO VIEW THIS MACHINE UNDER POWER GRINDING GEARS OF HIGH
QUALITY IS ONE OF OUR FINEST GEAR SHOPS
WE LOOK FORWARD TO WORKING WITH YOU TODAY
CONTACT RICH PISELLI FOR MORE INFO AT 704 609-0766 OR EMAIL HIM AT
or visit our website @ WWW.PISELLIENT.com for all Gear machine inventory Needs!!
