Fellows Mode 36-6 Gear shaping machine, 40" max diameter, 6" max face width, 12" Riser assembly , 4" spindle
cutter adaptor, Durant counter , Mag Chip conveyor, Good condition.

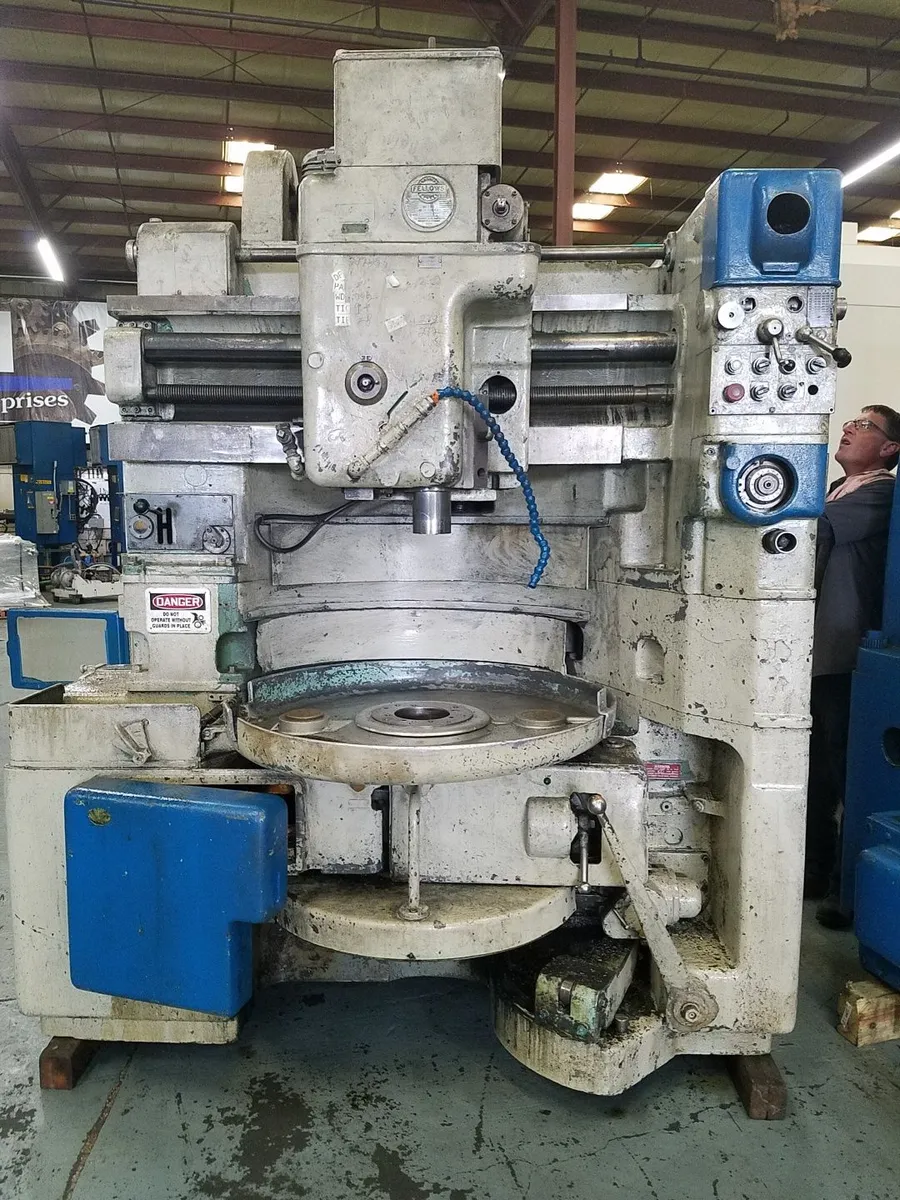

FELLOWS Gear Shaping Machine
Model # 36-6
s/n 30010 Spec
This machine was recently received from customers shop in good running condition.
the machine looks to be in very mechanical condition. Machine was upgraded with
Durant Timer & CEH Lube pump . Machine also has a very nice Mag Chip conveyor.
MACHINE SPECIFICATIONS:
* Maximum Pitch Diameter External........................................40"
* Maximum Pitch Diameter Internal........................................36"
* Maximum Workpiece & Fixture Diameter...................................42"
* Maximum Face Width......................................................6"
* Stroke Length...........................................................6"
* Maximum Helix Angle................................................45 deg
* Maximum Diametral Pitch
-For Spur Gears........................................................3 DP
-For Helical.........................................................4/5 DP
* Work Spindle Bore Diameter..........................................5.875"
* Twelve (12) Stroking Speeds, w/ranges..........................18-300 spm
* Machine Dimensions......................................92" x 60" x 100"H
* Machine Weight, Approx.........................................17,000 Lbs
Machine Is Equipped With:
12" Riser Assembly depending on machine selected
4" spindle diameter
Misc. Change Gears
1 Cutter Adapter
Durant counter
CEH Auto forced Lube system
Bunting Magnetic chip Conveyor
operators Manual
Machine(s) can be inspected under power with proper notice. Additional
adaptors can be purchased if required. Send us your part prints to confirm
what you require on this machine. Review this and our many other Gear machines
at WWW.PiselliEnt.com WEBSITE for more info , photos and similar gear machinery
Email rich@PiselliEnt.com for more information and/ or questions!!
