Fellows Model 4GS Gear shaping machine, 6" Max Diam x 2" max stroke , 3" spindle, Machine is equipped with 1" riser block , cutter adaptor and misc change gears , inspect under power

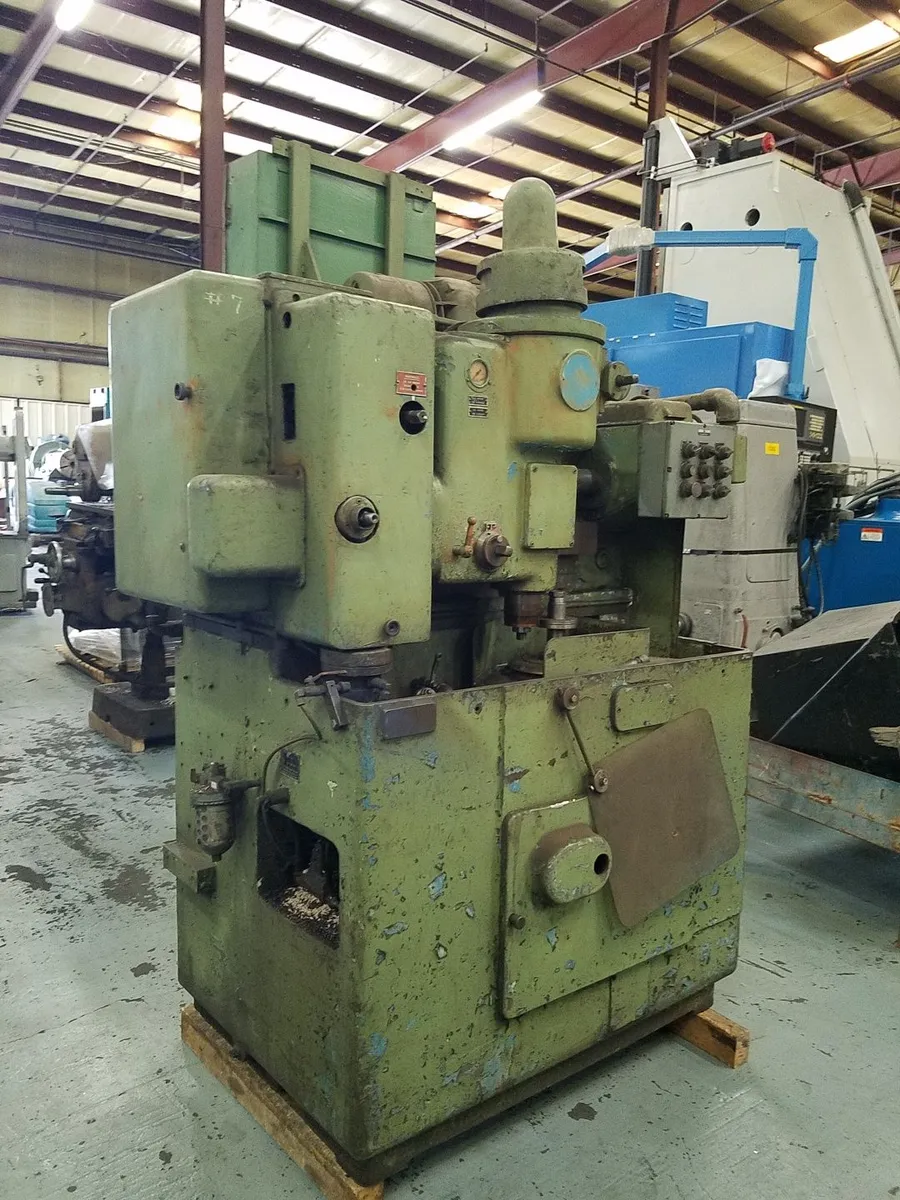

Fellows Gear Shaping Machine
Model 4GS
s/n 31392-7051
this machine is used for mfg both internal and external Gears and pinions. It
is equipped with a 1" riser. it can be inspected under power in our shop with
proper notice
Machine specifications are as follows:
Maximum gear diameter 7"
Maximum Stroke capacity 2"
Max swing diameter inside chip pan 11"
table diameter 6"
cutter spindle diameter 3.750" special
maximum clearance height Based on riser height
Machine weight 7,000 lbs
machine dimensions 6'wide x 5'deep
Machine is equipped with the following:
1" riser assembly
3" spindle
automatic cycle
misc change gears
books and manual
This machine can be inspected under power with proper Notice. almost all machines
we have can be inspected with proper notice!! visit our website for our entire
inventory, photos and special gear machine inventory. Best inventory for Gear
Machinery !! WWW.PiselliEnt.com or contact rich@pisellient.com for more info
