Fellows model 36-6 , 40" diameter capacity , 6" stroke w/ 6" riser assembly Parts machine !!!!

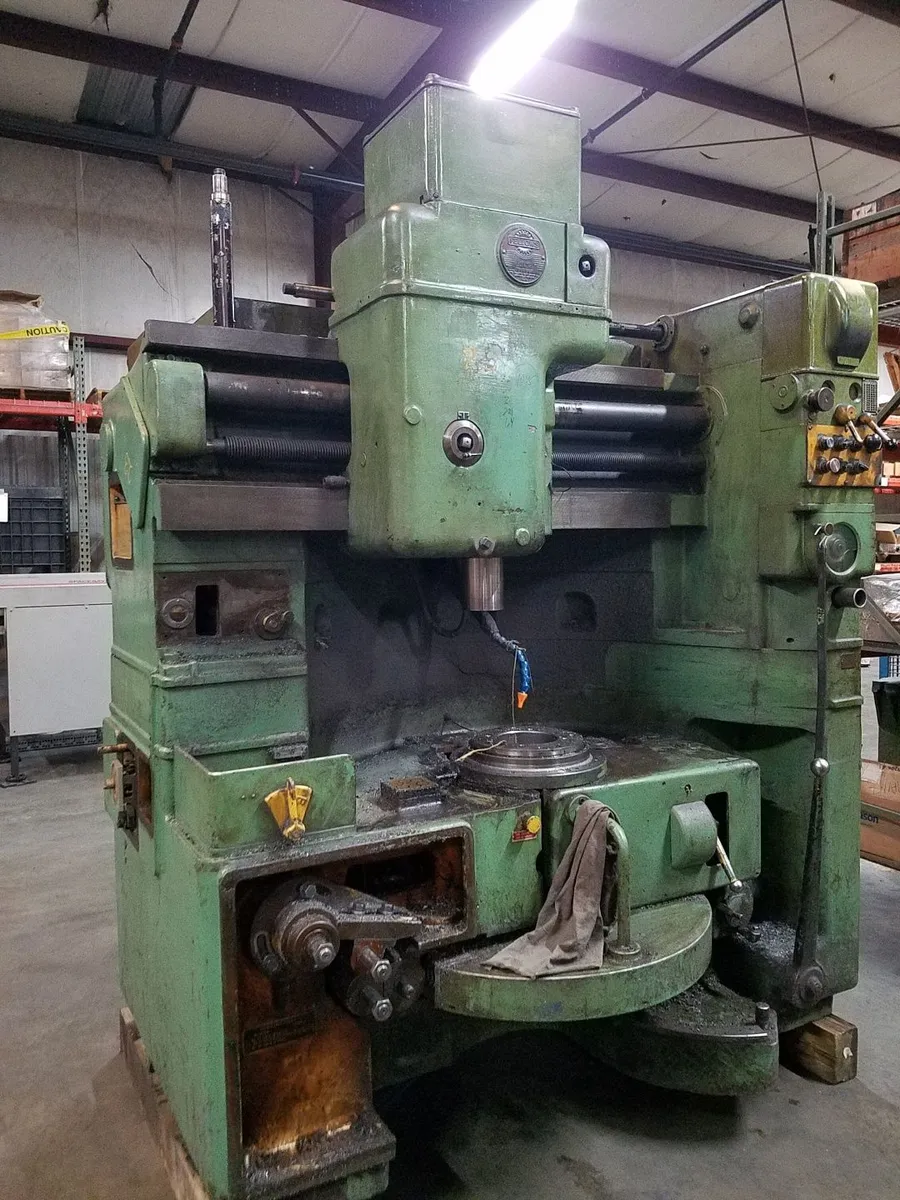

Fellows Gear shaping machine
Model 36-6
S/N 27622
equipped w/ 6" Riser assembly
This fellows model 36-6 machine will be gone through and adjusted as
required,
MACHINE SPECIFICATIONS:
* Maximum Pitch Diameter External........................................40"
* Maximum Pitch Diameter Internal........................................36"
* Maximum Workpiece & Fixture Diameter...................................42"
* Maximum Face Width......................................................6"
* Stroke Length...........................................................6"
* Maximum Helix Angle................................................45 deg
* Maximum Diametral Pitch
-For Spur Gears........................................................3 DP
-For Helical.........................................................4/5 DP
* Work Spindle Bore Diameter..........................................5.875"
* Twelve (12) Stroking Speeds, w/ranges..........................18-300 spm
* Machine Dimensions......................................92" x 60" x 110"H
* Machine Weight, Approx.........................................19,000 Lbs
Machine Is Equipped With:
6" Riser Assembly
4" spindle diameter
operators Manual
Machine can be inspected under power with proper notice. Additional adaptors
can be purchased if required. Send us your part prints to confirm what you
require on this machine. Please note above that this machine will require 3
weeks to complete from receipt of order.
