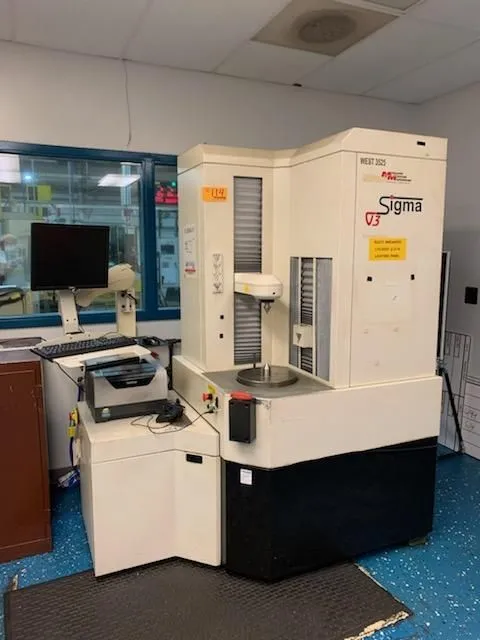

Gleason M&M systems Sigma 3, 12" Diameter CNC Gear testing Machine, New 2006 (3 Avail)

Gleason M&M precision systems CNC Gear Tester
Model Sigma 3 s/n 6558 new 2006 (2 machines now available)
W/API Probes

Machine specifications are as follows:
• Machine construction using a granite base designed for production use
• Probe Resolution 0.03 m
• 3 Linear motor driven axes and Rotary drive rotary C-axis
• X travel probe horizontal travel 270mm (10.6”)
• Y travel horizontal movement measuring slide 480mm (18.9”)
• Z travel vertical movement of measuring slide 480mm (18.9”)
• C-axis- Rotary Table Diameter 228mm (9.0”)
• Weight Capacity 180kgs (400 lbs.)
• Maximum diameter of part 305mm (12”)
• 1 Motorized tailstock with a live top center 18 mm
• Maximum length part between centers 760mm (29.9”)
• Standard probe ball stylus 3.0 mm
• Precision Calibration Sphere 19.05mm and 12.7mm
(For calibration of probe tips and table center find location)
• bottom dead centers 25mm
• Optional centers available 54.5mm and 75mm
• Power Requirements 110VAC, 20 Amps, 60 Hz
(permissible fluctuation - +/- 15%) 220VAC, 20 Amps, 50 Hz
• Environmental Temperature 20.1+/-2.0 C (68+/-3.0F)
• Approximate Machine Weight 1300Kg, (2,860lbs), approx.

Software package as originally purchased by owner from Gleason M & M
License Type Full License
Enabled Features:
Compare
Journal Reference
Topography
Straight Sided Spline
Keyway
DIN 5480
JIS 1702-1998
ANSI B92 (Default Option)
Unknown Gear
Qdas
Gearnet
Dual Helix (Default Option)
JIS1702 1976
INDEX ECCENTRICITY REMOVAL
CHINA GB 10095-1998 Analysis
CHINA GBT 10095-2001 Analysis
DIN 3960/62 (Default Option)
ISO 1328-1995
Root Scan
GM ISO Analysis
machines have GAMA 2.x software

Note: New licensing software fee for new owner is Required for $17,500 if machine
Needs to be serviced by Gleason . This Fee needs to be purchased directly
from Gleason Metrology!

These machines can be inspected in very good running condition prior to removal.
Once moved the machine will be set up upon receipt of customers PO and deposit
machine software included as only provided with machine originally and any
additional features or needs will need to be purchased separately. A full cnc
re-control and repower can also be offered for this machine with a 1 year warranty
and Gear software package would be included. contact us today for a retrofit
quote!! or Visit WWW.PiselliEnt.com to view this and other CNC Gear testers
for sale
