Liebherr Model LC-80 7 Axis CNC Gear hobber w/ 180 Position loader new 2005 (2 available in stock)
GEAR HOBBERS (CNC)
Liebherr Model LC-80 7-Axis CNC Gear hobber W/ 180 Position Loader. 80 mm Max Diameter workpiece. The machine(s) are new in 2005 and were utiiezed with National pick and place loaders. Machines have been purchased due to a total plant shut down! 2 available

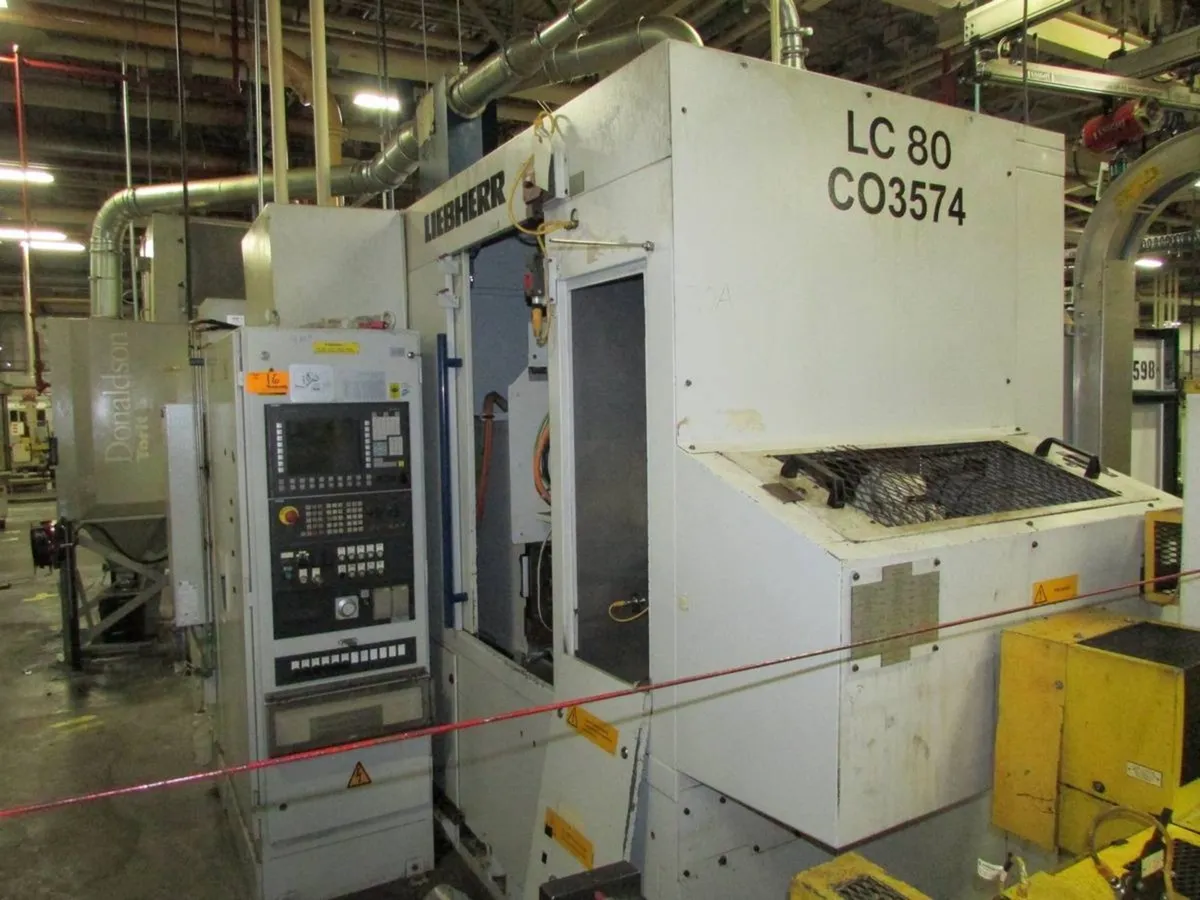

Liebherr 7-Axis CNC Gear Hobbers
Model LC-80 New 2005 s/n 0414 & 0422
condition : very good (2 available)
These machines were mfg high quality gears when total plant was shut down.
the machines were running parts up until that point. The are equipped with
180 position loaders and Siemens 840D cnc controls motors and drives.
Machine Specifications are as follows:
Max workpiece Diameter 80 mm / 3.5"
Table Diameter 125 mm / 5"
Max Table speed 800 1/ min
Center distance range 10-200 mm
Max Axial Travel 250 mm
cutter head swivel =/- 45 degrees
Max tailstock travel 75 mm
Machines are equipped with the following:
Siemens 840D CNC controller and drives
180 position loader (around tailstock)
loading station
In & Out part shoot for load and unload
Mayfran Magnetic chip conveyor
Machines have been removed from mfg location and can be inspected in our warehouse.
the machines are exactly the same and are equipped as above. Machines
have been well maintain and have been producing good quality parts. Contact
rich Piselli to set up a quick inspection or visit the machines at our warehouse
we look forward to making a deal prior to removal. See more pictures of these
machines at WWW.PiselliEnt.com or Email Rich Piselli at rich@PiselliEnt.com !!
