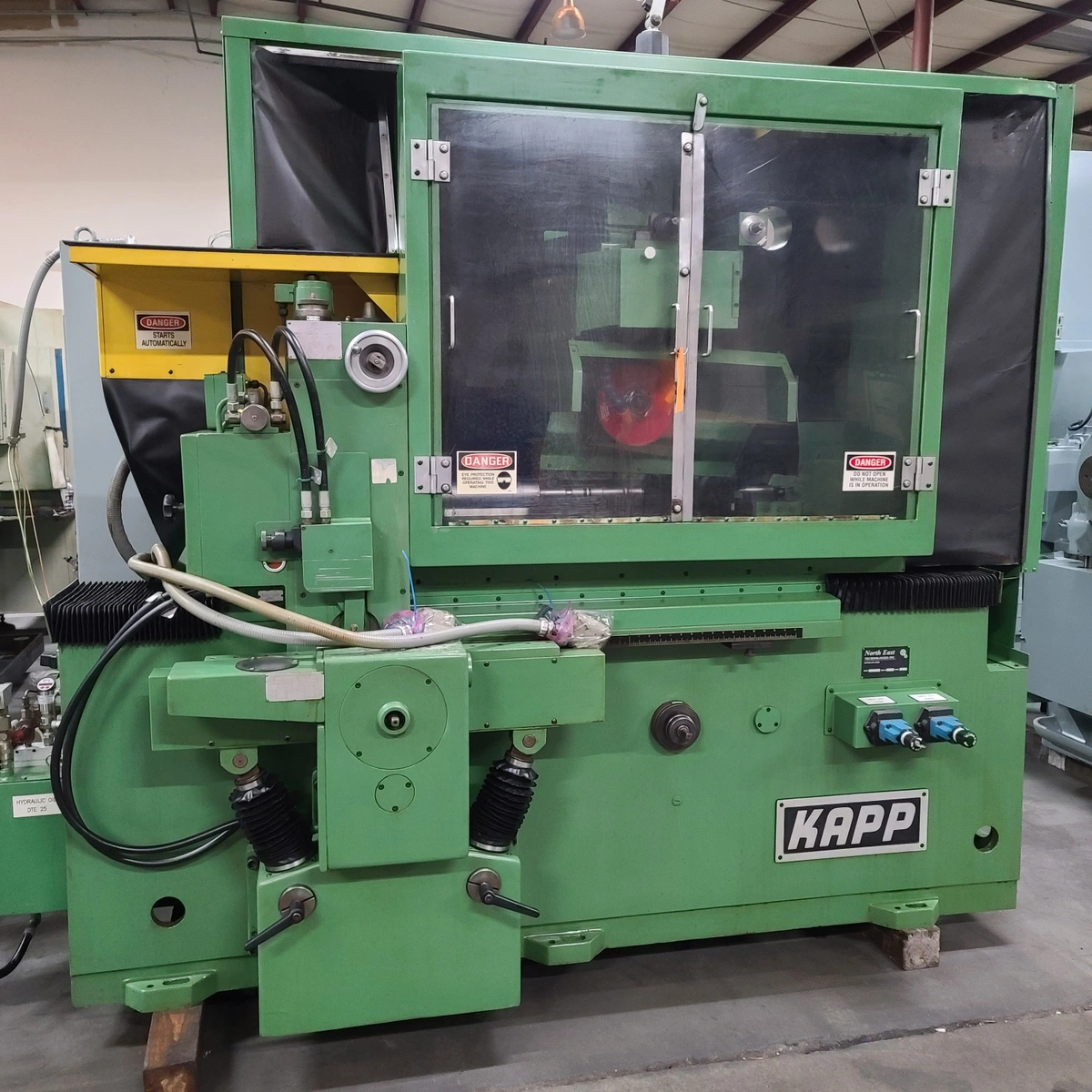

Kapp model AST 305B automatic Gear cutter sharpening machine 12" x 27" capacity for tools , w/ PLC control

KAPP Gear Hob Sharpening & Universal tool sharpening machines
Model AST305B
S/N will advise
New 1979

This Kapp hob sharpening machine is able to re-sharpen hobs and cutters
& tools up to 12" Diam x 27" length either wet or dry. its High speeds
allows you to use either vitrified or plated wheels. This highly accurate
machine is fully enclosed during the grinding process with full
automatic cycles. The machine is well equipped with tooling and
accessories!!

Machine specifications are as follows;
Max Clamping length 27.56" / 700 mm
Max workpiece diameter capacity 11.8" / 300 mm
Max table traverse 21.56" / 550 mm
Max Diameter Grinding wheel 12" / 300 mm
Max Center height 6.1" / 155 mm
infinitely variable table speed:
-for deep grinding 30-1000 mm / min
-For surface grinding 3-16 mm / min
infinitely Variable flute lead angle 0-45 degrees
Infinitely variable flute Lead (as ordered) 24" to 00
or 12" to 00
Grinding Spindle speed 2200 rpm
- on request 1000 - 4000 rpm
axial Grinding spindle adjustment 16.54" / 420 mm
Vertical grinding Head adjustment 11.81" / 300 mm
indexing spindle taper morse 4 or steep taper 40
pre-selectable single infeeds 0-9999
Machine dimensions length depth height 118" x 82" x 93"
Machine weight 7500 lbs/ 3000 kg

Machine is equipped with the following:
Allen Bradley PLC Control (updated with PLC by Northeast Tech)
Coolant tank and filter
automatic cycles
auto dressing
full enclosure
index plates
work arbors
change gears
Gauges
wheel flanges
Full books and manuals
lots of extras

Machine can be inspected under power with proper notice at our NC
Facility. Please inquire for more information or additional photos!
