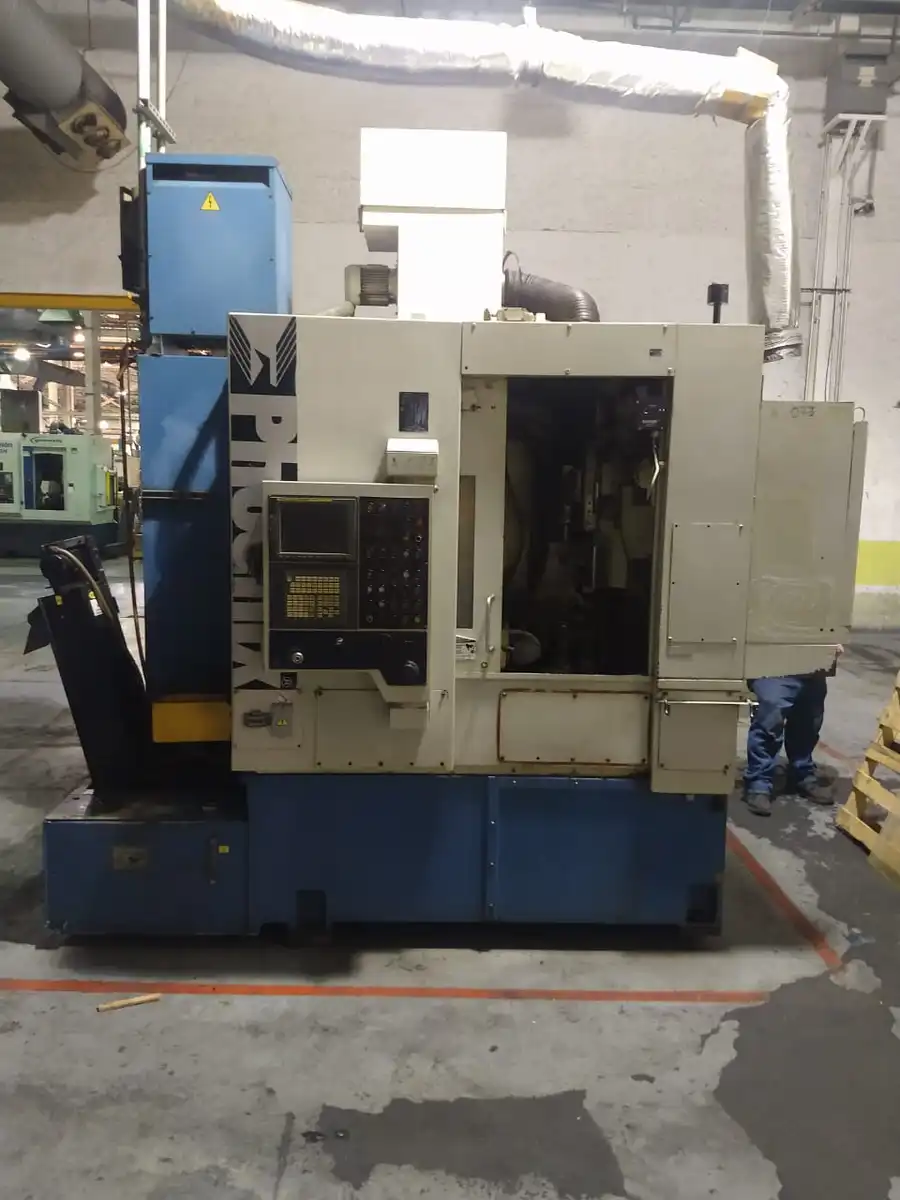

Gleason Model Phoenix 125GH CNC 6 Axis Gear Hobber with 180 Position loader New 2005

Gleason Phoenix 6-Axis CNC Vertical Gear hobbing machine
Model 125 GH
age 2005
s/n 975301

These compact machines are presently in customers shop under power . they
are equipped with Fanuc controls and 180 position loaders and loading stations
they are equipped with standard hob head and chip conveyors.
Note: machine shipped to statesville NC 9/27/22

machine specifications are as follows:
Max workpiece diameter 4.52" / 125 mm
Min workpiece Diameter .25" / 6.4 mm
Max Pitch / Module 8 NDP/ 3.2 Module
Max Axial slide travel 11.81"/ 300 mm
Max Hob Head Swivel -180 -+ 40 degrees
Max diameter Hob 4.53" / 115 mm
Max Hob length 8.46" / 215 mm
Max hob Shifting length 7.87" / 200 mm
Max work head speed 1500 rpm
Max work head speed (optional) 3500 rpm
Hob Head drive rating 15 HP

Machine weight 15,000 lbs
floor space 106" x 65" x 122" high

Machine is equipped with the following:
Fanuc 180I-M cnc controls
180 position loader with loading station
light curtains
Chip conveyor
Mist collection
books and manuals

Machine Has been shipped to Piselli ent inc 9/27/22. Machine can be inspected
in our facility with proper notice as its been removed from customers plant.
Contact us today as these machines were upfit by gleason corp in 2011
and are in good running condition or Visit WWW.PiselliEnt.com to view more
photos of this machine offering or others we have in stock!! email Rich
Piselli at Rich@pisellient.com for an under power video of machines before
removal.
