Lees Bradner Model SH 8 x 54 Spline hobber, 54" max Hobbing distance, 6" bore through work Spindle

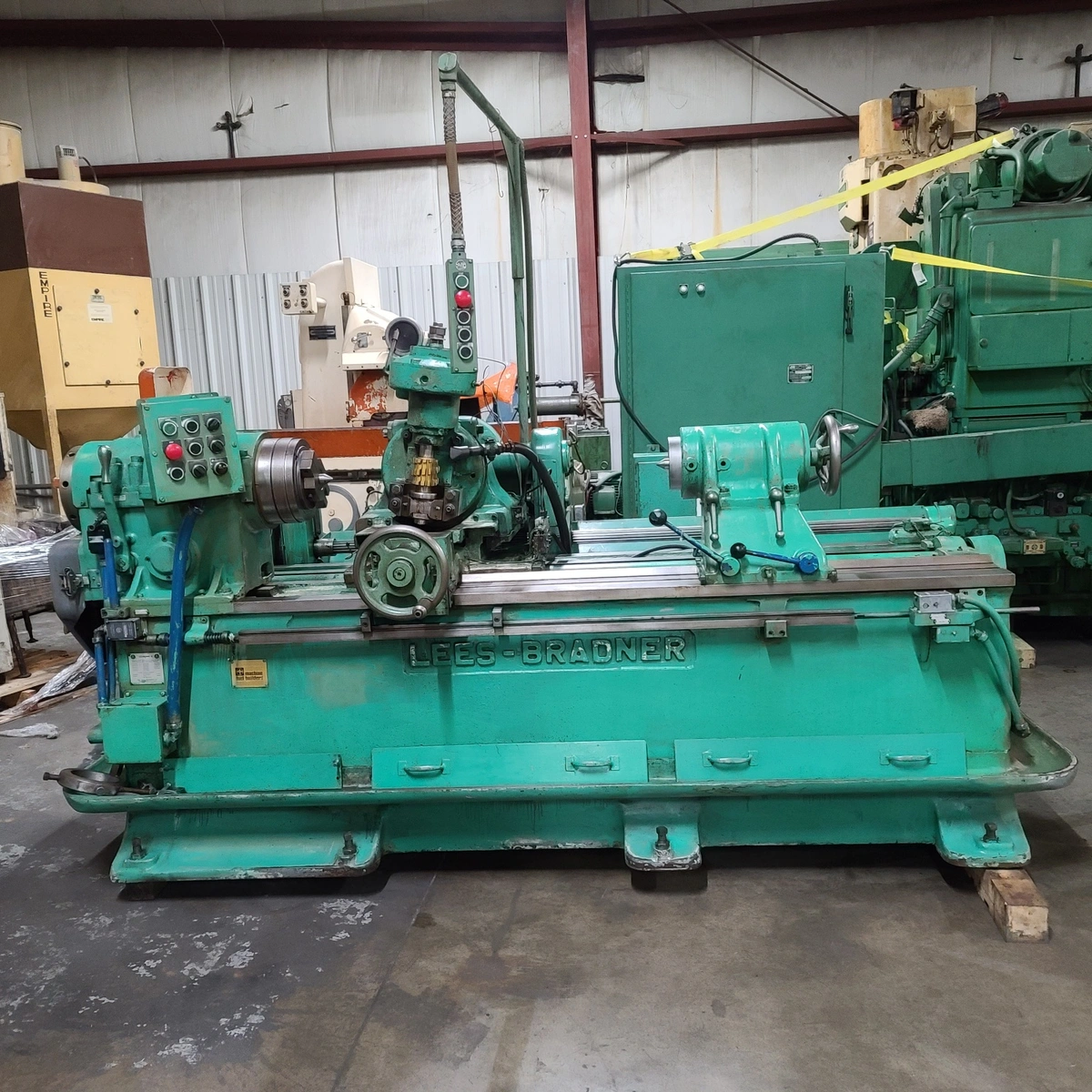

Lees Bradner Horizontal Spline hobbing machine
Model SH 8 x 54 s/n SH 173
Excellent condition

Machine was designed for the Manufacture of large splines and shafts between centers
up to 54" in diameter. It also supports a hole through the work spindle of 6" to
allow for longer shafts. the tail center can also be removed and a steady added to
increase the length of parts held

Machine specs are as follows:
Max Diameter Hobbing capacity 8.75"
Bore through the work spindle 6.44"
Max Face width of cut between centers 54"
Max swing over ways 24"
Max Swing over Carriage 12"
Max Rated DP 3.5 DP
Max Helix angle 45 degree
Max hob Length 5"
Max hob Diameter 4"
Max hob speeds 96-214 RPM
Max Hob shift 2"
Main drive 15HP
Machine Machine weight 9,000 lbs
Machine dimensions 11' long x 6.5' deep x 5' tall

Machine is equipped with the following"
1-1/4" diameter hob arbor
through hole fixture with collect clamping
push button panel
operator pendant control
Rapid traverse
good assortment of change gears
Misc tooling , drive dogs, etc as photographed

Note : no hobs are being sold with the machine

Contact us today to set up an under power inspection of this machine. We welcome
your visit to see this and other machines in excellent condition. visit
WWW.PiselliEnt.com or contact Rich@piselliEnt.com to discuss this machine
or request a quotation. thank you !
