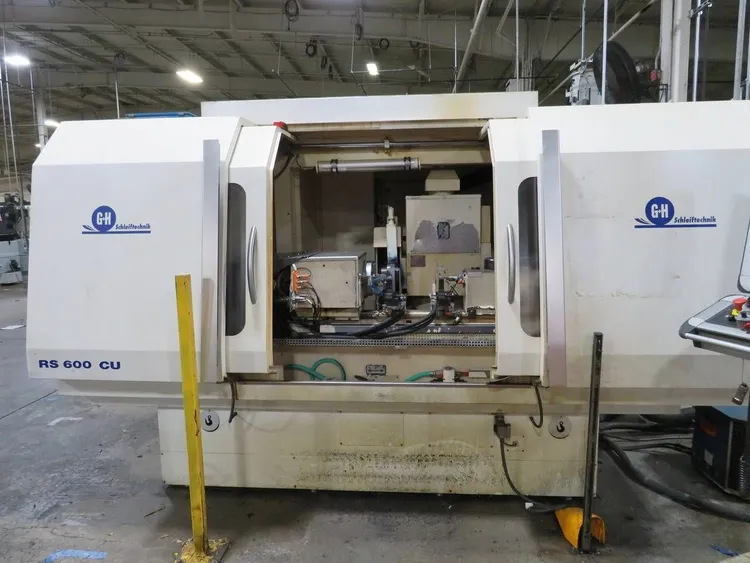

Geibel & Hotz Model RS 600 CU Universal Cylindrical grinders , 15" swing , 24" between centers, 20" grinding wheel Diameter x 4" width , Siemens 840D controller and Marposs P7 Gaging , full filter and chiller system New 2012
Geibel & Hotz GMBH CNC Cylindrical Grinders
Model RS 600 CU, S/N 30 3685 0512
Age: 2012
Machines are in Excellent condition under power . Equipped with the latest CNC
controls , Siemens 840 D Control , Marposs #P7 Gaging, Siemens Pendant
Control, finger gauging and chiller and filtration systems
Machine specs are as follows:
Maximum swing Diameter 14.17 /360mm
Maximum distance between centers 24" / 600mm
Maximum Grinding length 24" / 600mm
Maximum part weight 150 kg between centers
Z-Axis
Max Z-Axis speed 10 m/min
Min Z-Axis speed 0.01 m/min
Measurement by Z-axis Glass Scale 1 um
X-Axis
Max X-Axis speed 8 m/min
Min X-Axis speed 0.01 m/min
Measurednes Z-Axis Glass Scale 0.5 um
Electrical Steering wheel
Measurednes electrical steering wheel 0.oo1: 0.01 or 0.1mm/ increment
Grinding Spindle :
Grinding wheel diameter 20" / 500mm
Grinding wheel Width 3.14" / 80mm
Grinding wheel bore 8" / 203.2mm
Peripheral Surface speed max 50 m/s
Input power wheel spindle 11 kW
workpiece spindle :
rotation speed 0-600 1/min
bore of workpiece spindle MK5 & KK5
input power 2 KW
tailstock Bore MK4
Voltage 480 volt 3 phase 60 HZ
gross weight 12000 lbs / 6000 kg
Machines are equipped with the following
Siemens 840D control for 2012 machine
Pendant controls
Marposs P7 Gaging system
Marposs finger Unimar finger Gage
steady rest
headstock and tailstocks
coolant and filtration system
Hyfra chilling system
automatic doors
stack lights
Misc tooling on machines as photographed
full books manuals and back up discs for some machines
OTHER TERMS & CONDITIONS
1 - machines are sold in good running condition
2 - machines descriptions are from sources deemed reliable
and customer needs to inspect to confirm all specifications,
features and options.
3 warranty: machines do not come with warranty.
4 payment terms:
-40% down with purchase order
-Balance due after inspection and/ or 1 week prior to
removal of the first machine.
Machines can be inspected under power for a short time only . Contact us today
to learn more about these machines . the condition of the machines are
Excellent and are ready to rn in your shop . Visit WWW.Pisellient.com to see
more photos or contact us for more information rich@pisellient.com
