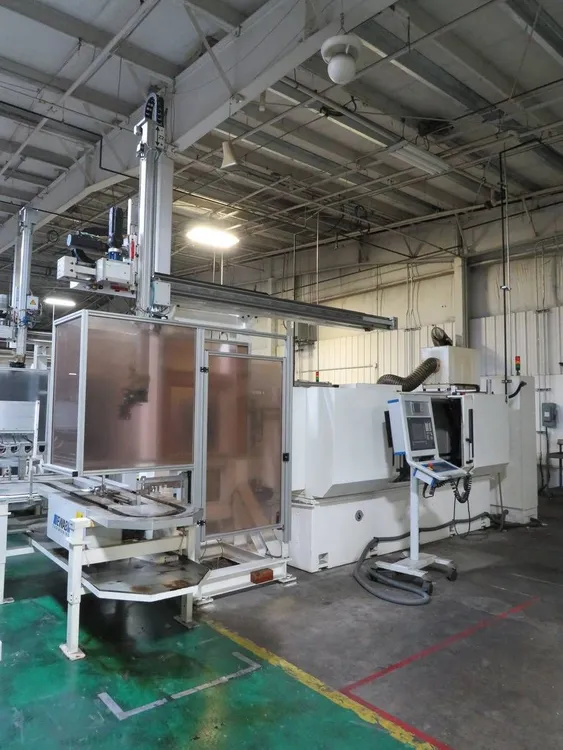

Geibel & Hotz model RS 600 CU Universal cnc cylindrical grinder with siemens 840D CNC controls, 15" swing x 24" grind Length w/ 30" between centers, Marposs P7 gaging, Pendant control, compensating dresser, Hyfra chiller , full coolant and filtration system. New 2003
Geibel & Hotz GMBH CNC Cylindrical Grinders (3 available)
Model RS 600 CU s/n 3024670603
Age: 2003
Machine is in running condition . Equipped with the full CNC
controls , Siemens 840 D Solution Control , Marposs #P7 Gaging,
Siemens Pendant Control, finger gauging and chiller and filtration
system
Machine specs are as follows:
Maximum swing Diameter 14.17 /360mm
Maximum distance between centers 24" / 600mm
Maximum Grinding length 24" / 600mm
Maximum part weight 150 kg between centers
Z-Axis
Max Z-Axis speed 10 m/min
Min Z-Axis speed 0.01 m/min
Measurement by Z-axis Glass Scale 1 um
X-Axis
Max X-Axis speed 8 m/min
Min X-Axis speed 0.01 m/min
Measurednes Z-Axis Glass Scale 0.5 um
Electrical Steering wheel
Measurednes electrical steering wheel 0.oo1: 0.01 or 0.1mm/ increment
Grinding Spindle :
Grinding wheel diameter 20" / 500mm
Grinding wheel Width 3.14" / 80mm
Grinding wheel bore 8" / 203.2mm
Peripheral Surface speed max 50 m/s
Input power wheel spindle 11 kW
workpiece spindle :
rotation speed 0-600 1/min
bore of workpiece spindle MK5 & KK5
input power 2 KW
tailstock Bore MK4
Voltage 480 volt 3 phase 60 HZ
gross weight 12000 lbs / 6000 kg
Machine is equipped with the following:
Siemens 840D control for 2003 Machine
Pendant controls
Marposs P7 Gaging system
Marposs Gage
headstock and tailstock
coolant and filtration system
chilling system
Misc tooling on machines as photographed
books manuals
machine is presently located in Laredo Tx warehouse
Visit WWW.Pisellient.com to see more photos or contact us for more
information rich@pisellient.com
