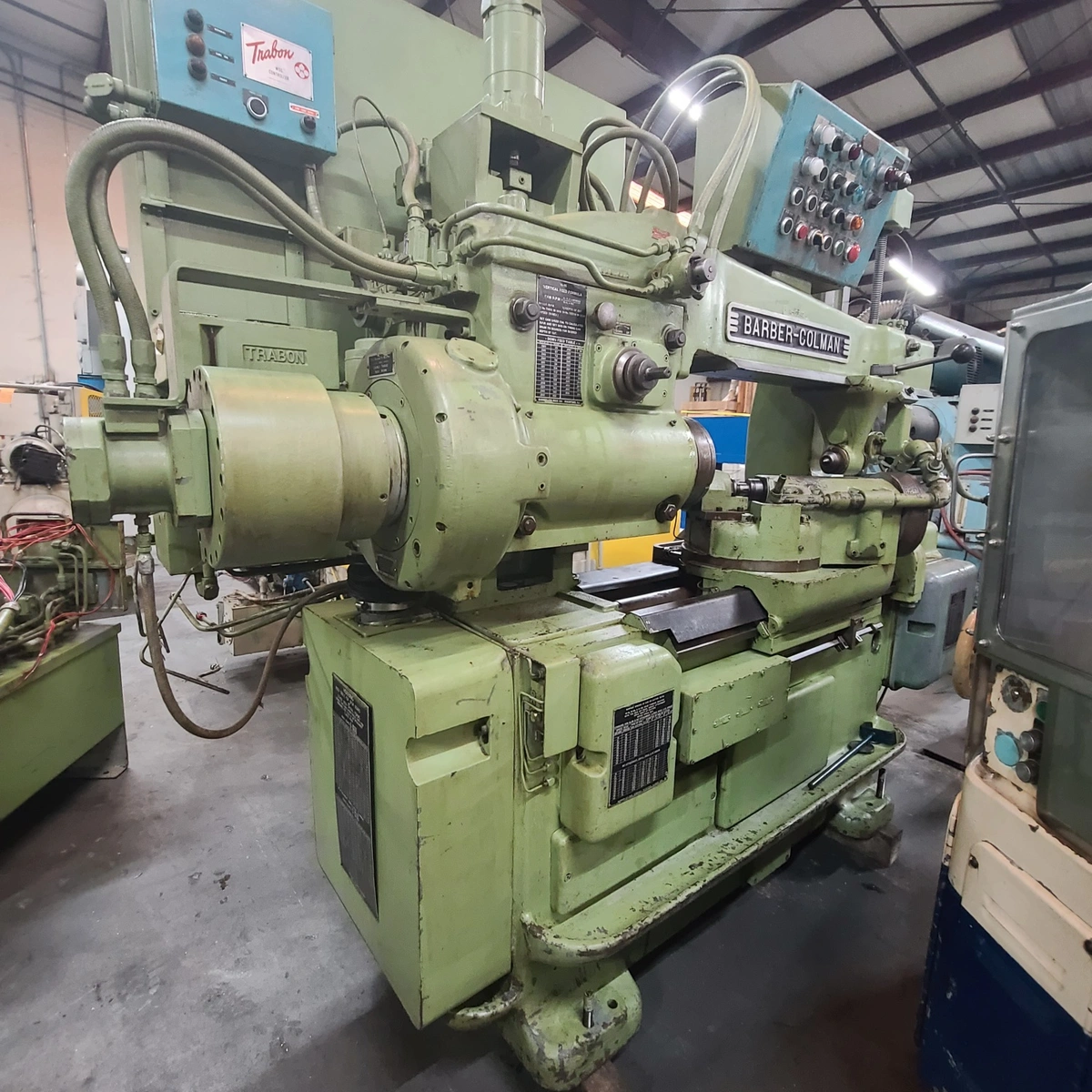

Barber Colman model 16-16 Multicycle Gear hobber w/ special 90 degree hob head for worms and worm gearsGEAR HOBBERS
Barber Colman Model 16-16 Multicycle Horizontal Gear Hobbing machine, 16" diameter part x 16" long, w/ special 90 Degree hob head option and late model C-frame style machine. with special head and cycles . Machine is capable of producing worms and worm gears along with the standard gears and Hi-Helix gears you sometimes require in this industry.
Barber Colman Multicycle gear hobbing machine
Model 16- 16 Multicycle C-frame Style
With special 90 Degree hob head option!
Machine specifications are as follows:
* Max. DP in Steel 6 DP-10 DP
* Max. Work O.D. 16"
* Max. Hob Slide Travel 6"
* Diameter of Hole Through Work Spindle 3-1/8"
* Max. Hob Diameter 5"
* Max. Distance Face of Work Spindle to Tail Bracket 29"
* Max. Vertical Adjustment of Work Spindle 8"
* Dist. C/L of Work Spindle to Underside of Overarm 8"
* Dist. C/L of Work Spindle to C/L of Hob Spindle 8.75"/0.75"
* Dist. Face of Work Spindle to C/L of Hob Spindle 19.5"/3.5"
* Max Dist from faceplate to tailstock 38"
* Max. Hob Slide Swivel Angle Setting-Degrees L or R 90*
* 9 Hob Speeds (when equipped with suitable gears) 59-246 RPM
* Hob Feeds (when equipped with suitable gears) .0075-.1125"
* Floor Space (approx) 82" x 38" x 76"
* Weight (approx.) 7500 lbs
Machine Equipped With:
* Special 90 Degree head option for cut
* Multicycle and auto cycle machine control options
* Dwell Cycle
* C-frame style machine arm and Base
* 1 Hob Arbor
* automatic clamping cylinder for work holding
* External Hydraulic unit
* 25-30 Change Gears
* Manual/ prints
Note: Machine can be inspected under power with Proper Notice.
