Kapp Model AST 203 automatic Hob sharpening machine, 8" diameter x 10" length , well equipped Excellent!!

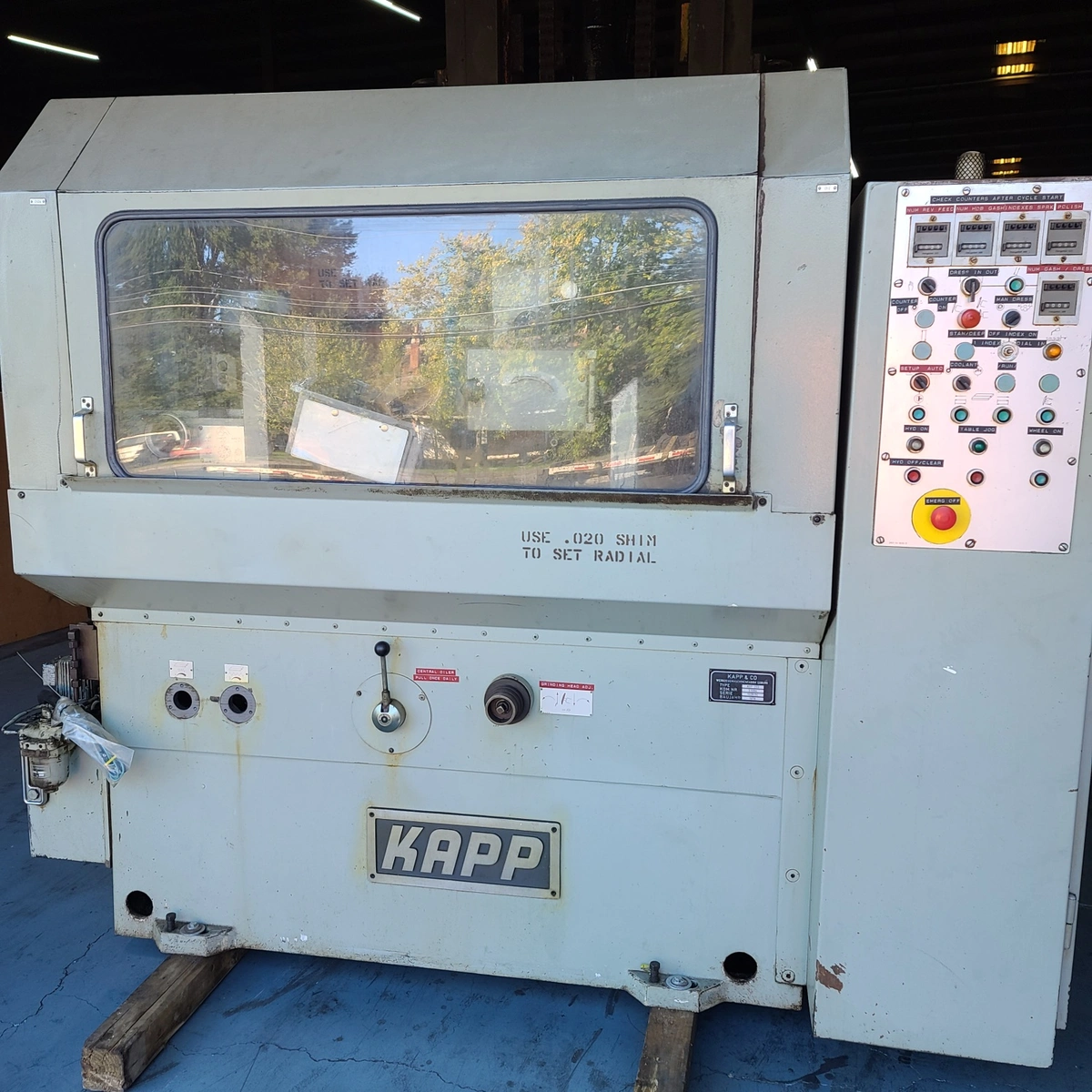

KAPP Universal Automatic Hob Sharpening machine
Model AST 203
machine number : 3.1084 1035.o4
New 1978

This KAPP Universal Hob sharpening machine is in exceptional Mechanical
condition and can be inspected as such. Complete complement of tooling
arbors and equipment to grind in your shop a vast variety of hobs of 8"
Diameter or smaller. contact us today for more information on what comes
with this machine if purchased. Inspect under power with proper notice!

machine specifications are as follows:

Indexing spindle to tailstock: 17.32"
Distance between centers: 13.39"
Standard center height: 4.13"
Maximum workpiece diameter: 8"
Maximum table stroke: 12.40"
Table speed, complete traverse grind: 9.5-52 FPM
Table speed, deep grinding: 0-3 FPM
Flute lead, infinitely adjustable: 0-15 Degree
Flute lead: 24"-Infinite
Main spindle taper: ISA 40
Auto single feed with 4" workpiece: 0-.0016"/Tooth
Auto feed deep-grinding, max.: .002"/Rev.
Pre-selected feeds: 0-9999
In 15 degree position: 3.15"-9.84"
In horizontal position: 0-5.7"
Grinding spindle swivel, horizontal: 15 Degrees
Vertical grinding head adjustment: 6.7"
Grinding spindle speed: 4000 RPM
Grinding spindle speed option: 3200 RPM
Max. grinding wheel diameter: 8"
Grinding spindle motor: 4.05 HP
Hydraulics motor: 2 HP
Indexing motor: .12 HP
Coolant pump: .92 HP
Chemaperm system: .12 HP
Oil mist exhauster: 1 HP
Actual dimensions, standard: 70" x 100" x 95"
Approximate weight: 4,500 Lbs.

Machine is equipped with the following:
fully automatic grinding cycles
large assortment of tooling for machine
hob arbors
index plates
New grinding wheels
borazon and vitrified wheels
coolant tank and paper band filtration unit
full machine grinding enclosure
books and manuals
condition of machine looks to be excellent from mfg group
