Anderson Cook Marand Model 350/200 heavy duty spline roller with 9.5" Opening, ExcellentGEAR RACK & SPLINE ROLLERS

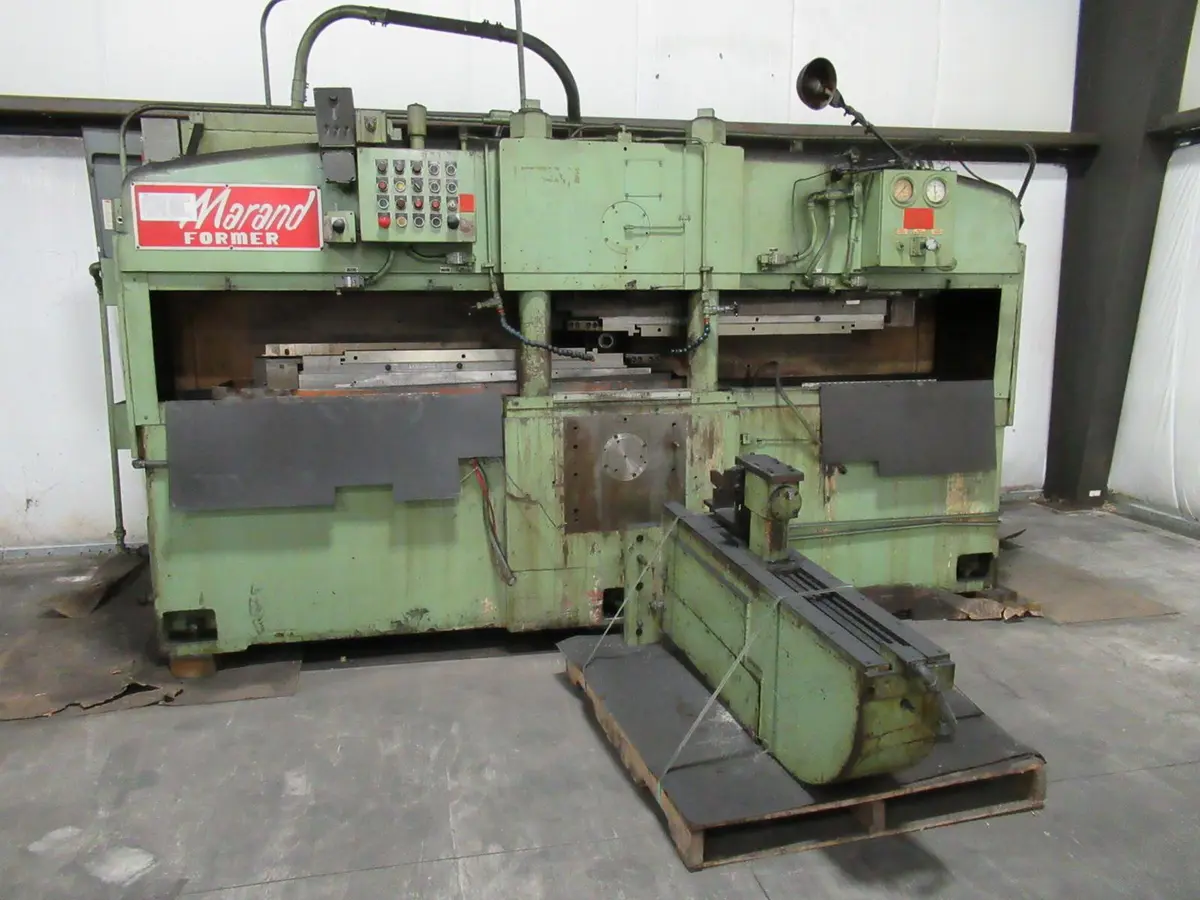

Anderson Cook Marand Model 350/200 Heavy Duty spline rolling machine. 48" rack rolling machine , with 9.5" Opening, under arm support w/ slide center . Machine is equipped with several rack dies and equipment.
Anderson Cook (A/C Marand) Heavy Duty spline roller
S/N A2/350/200s/85 - 228
This machine is a Heavy duty model with the large opening of 9.5" Daylight
to mfg larger Diameter shafts 95 daylight for off highway and off road
vehicles and trucks. Large axles and drive shafts can also have splines
rolled in this machine.
Machine is equipped as follows:
125 HP Motor
48" Rack Box (Length)
Under Arm w/ support
Over 15 sets of rack Dies included
manuals and electrical drawings
Maximum Working Stroke: 56"
Typical Rack face Width: Up to 8" Wide
Machine Daylight Opening: 9.5"
Machine Power Rating: 125 HP
Machine dimensions: 136" L x 40" D x 75" tall
Machine weight 35,000 LBS
Typical Forming Rack Setup(s):
Single 13" Forming Rack
Single 24" Forming Rack
Single 36" Forming Rack
Single 48" Forming Rack
13" & 24" Tandem Setup
13" & 36" Tandem Setup
24" & 24" Tandem Setup
power requirements 480/volt / 60/ 3 phase
This machine can be inspected in our statesville NC plant with
Proper notice . Machine is in good mechanical condition and can
be inspected as such. Please come in spect machine to verify all
specifications as we are not authorities on these spline rolling
Machines. we also have a AC Marand model 330S for smaller shafts
and splines . Vist WWW.PiselliEnt.com to view this and other
Machines in stock!
