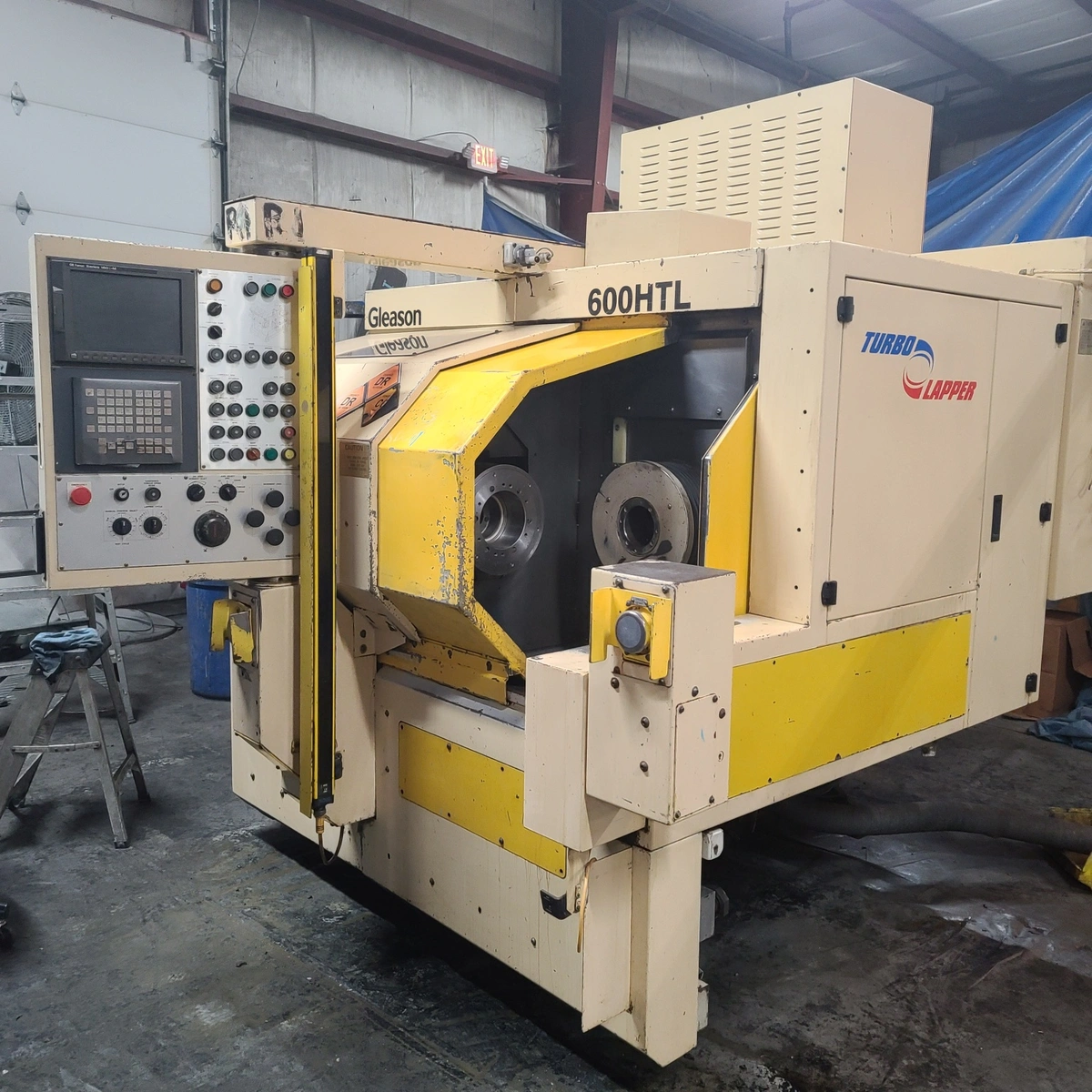

Gleason Model 600 HTL Turbo Lapper , Fanuc 160I-M control new 2000

Gleason Phoenix CNC Turbo Lapping Machine
Model 600 HTL
S/N 945003 Mfg 2000 , installed 2001

Machine has come from a large spiral bevel gear mfg which manufactures some of
the highest quality ring and pinion sets for its own product line.

Machine Specifications are as follows:

PRINCIPAL SPECIFICATIONS:

Maximum Gear Outside Diameter 23.6” (600mm)
Maximum Pinion Outside Diameter 10” (254mm)
Max Pinion Drive Speed 3100 rpm
Maximum Gear Drive Speed 3100 rpm
Offset range 3” (76mm)
Pinion Cone Range 6.5 to 14” (165 to 356mm)
Pinion spindle bore (large end) 3-29/32" (99.2mm)
Pinion spindle bore, (taper per ft) 39/64" (15.478mm)
Work spindle bore, (large end) 2-19/64" (58.34mm)
Work spindle bore, (taper per ft) 1/2" (12.7mm)
Gear Cone Range 3.5 to 10.5” (89 to 267mm)
Lapping Torque Load 15 to 215 in-lbs (2 to 22 Nm)
H (Pinion Cone) Servo Drive Motor 4.4 ft.-lbs (6 Nm)
V (Vertical Offset) Servo Drive Motor 8.9 ft.-lbs. (12 Nm)
G (Gear Cone) Servo Drive Motor 4.4 ft.-lbs. (6 Nm)
A (Pinion Spindle) Servo Drive Motor 18.8 HP (14 kW)
C (Gear Spindle) 18.8 HP (14 kW)
Machine overall length ………………………………… 93” (2400mm)
Machine overall width …………………………………. 83” (2108mm)
Machine overall height ………………………………… 82” (2083mm)
Machine approximate net weight …………………….. 12,500 lbs. (5,670 kGs)

EQUIPMENT / FEATURES:

• GE-FANUC 160i-M CNC control with motor and drive package
• minimized keystrokes and software navigation via the use of
main operator’s panel push-buttons to execute common commands
(such as “drive”, or “coast” set-over changes and manual roll-checks)
• direct drive horizontal spindles with optimal dynamic properties
• arrangement for 39-Taper pinion and 14-Taper gear work-holding
• work chamber guarding for 600mm maximum gear diameter
• automatic compound applicator
• power work chamber door
• automatic backlash setting at multiple lapping positions
• automatic run-out determination for both members
• high-speed spin clean
• stack light
• centralized automatic machine lubrication system
• full machine documentation, operator’s manual for machine and controller,
electrical and hydraulic diagrams

Machine can Be inspected under power in good mechanical condition with Proper notice
Machine has been moved to our warehouse in Statesville NC ,
Machine is presently missing mixing tank and pump system . call for Whats
App under power videos with Gleason technician !!!

Call to set up and inspection today (704) 609-0766 or visit our website at
www.piselliEnt.com to view this and other late model Gear Machinery
